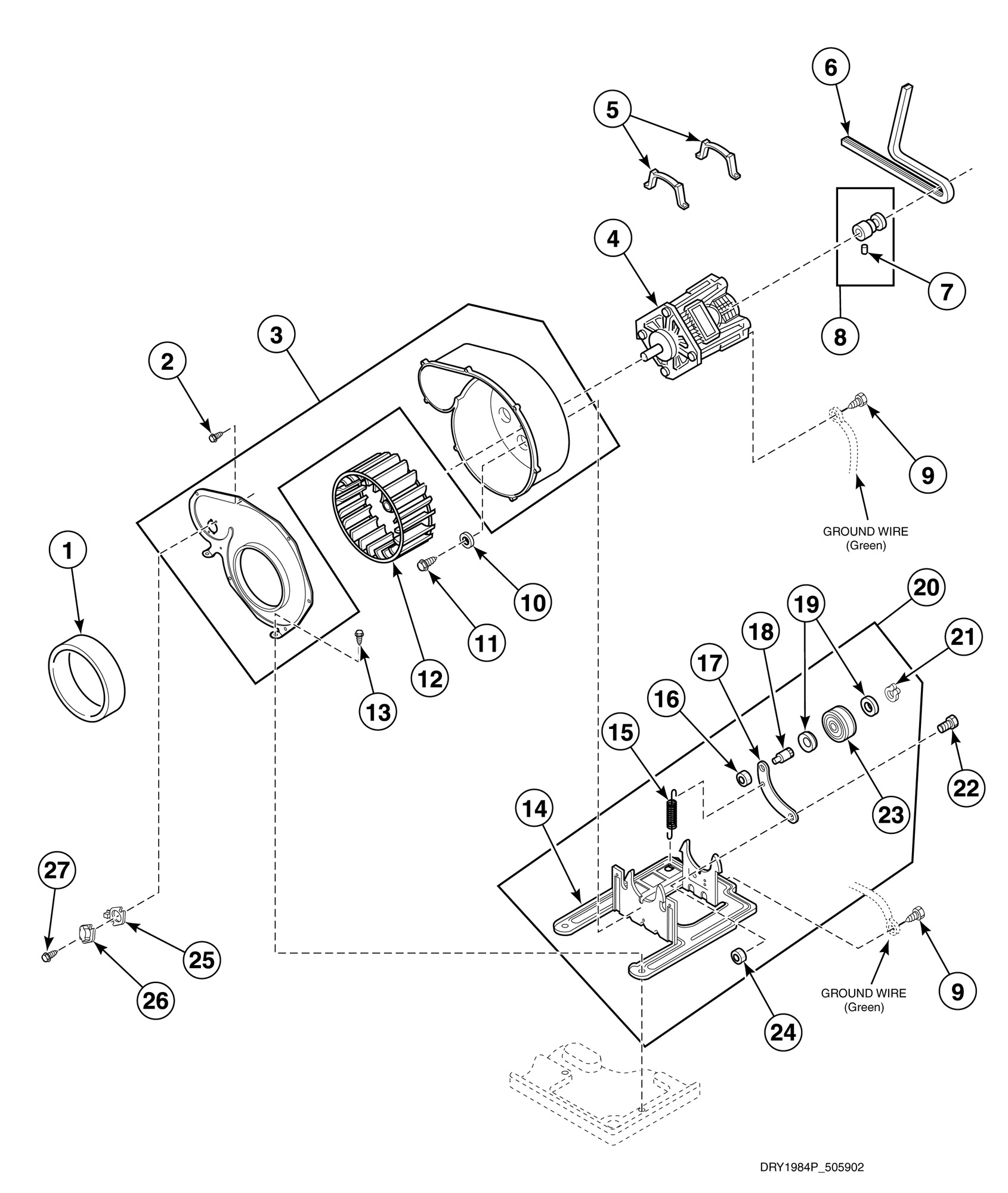

AEE953 Motor, Exhaust Fan and Belt

Products

PositionProduct
NAAnti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
NAWire Harness Assembly
1Seal
2Screw
3Blower Housing and Cover Kit
4Motor (Comment: Includes switch)
5Motor Mount Clamp
6Cylinder Belt
7Screw
9Screw
10Washer
11Screw
12Blower Fan Assembly
13Screw
14Motor Mount
15Idler Spring
16Nut
18Shaft
19Washer
20Motor Mount and Idler Assembly
21Retaining Ring
23Idler Wheel and Bearing Assembly
24Nut
25Thermostat Heater (Comment: Use with 61372 Thermostat)
26Thermistor Assembly (Comment: Black)
27Screw
