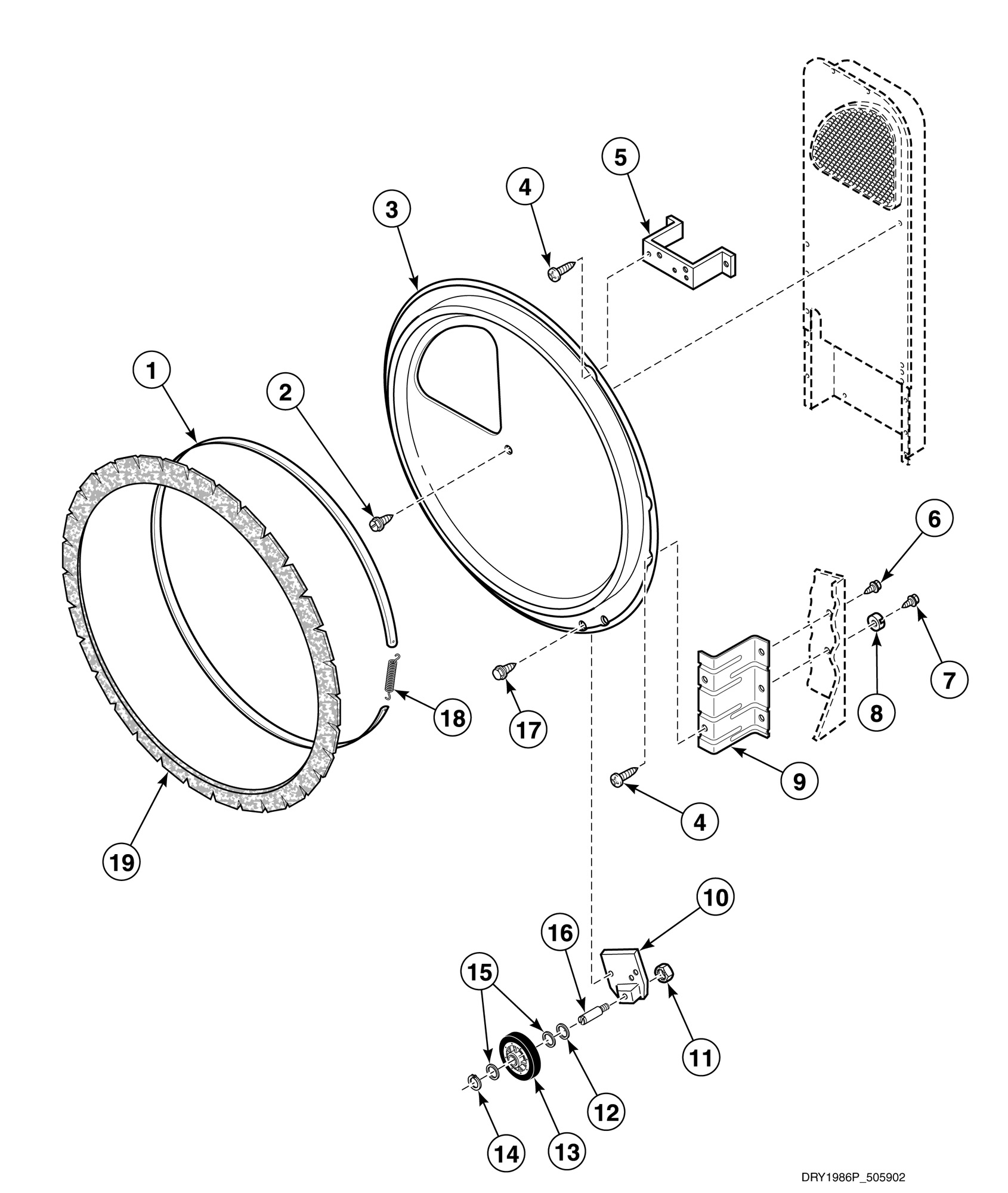

AEE953 Rear Bulkhead, Felt Seal and Cylinder Roller
Products
| Position | Product |
|---|---|
| 1 | Seal Strap |
| 2 | Screw |
| 4 | Screw |
| 6 | Screw |
| 7 | Screw (Comment: Green) |
| 8 | Washer |
| 10 | Wire Harness Assembly |
| 11 | Nut |
| 12 | Washer |
| 13 | Cylinder Roller |
| 14 | Retaining Ring |
| 15 | Washer |
| 16 | Shaft |
| 17 | Screw |
| 18 | Spring |
| 19 | Seal Assembly |
