AEG14AZL1 ROOM AIR CONDITIONER

AEG14AZL1 ROOM AIR CONDITIONER

Written by

in

AEG14AZL1 ROOM AIR CONDITIONER

Products

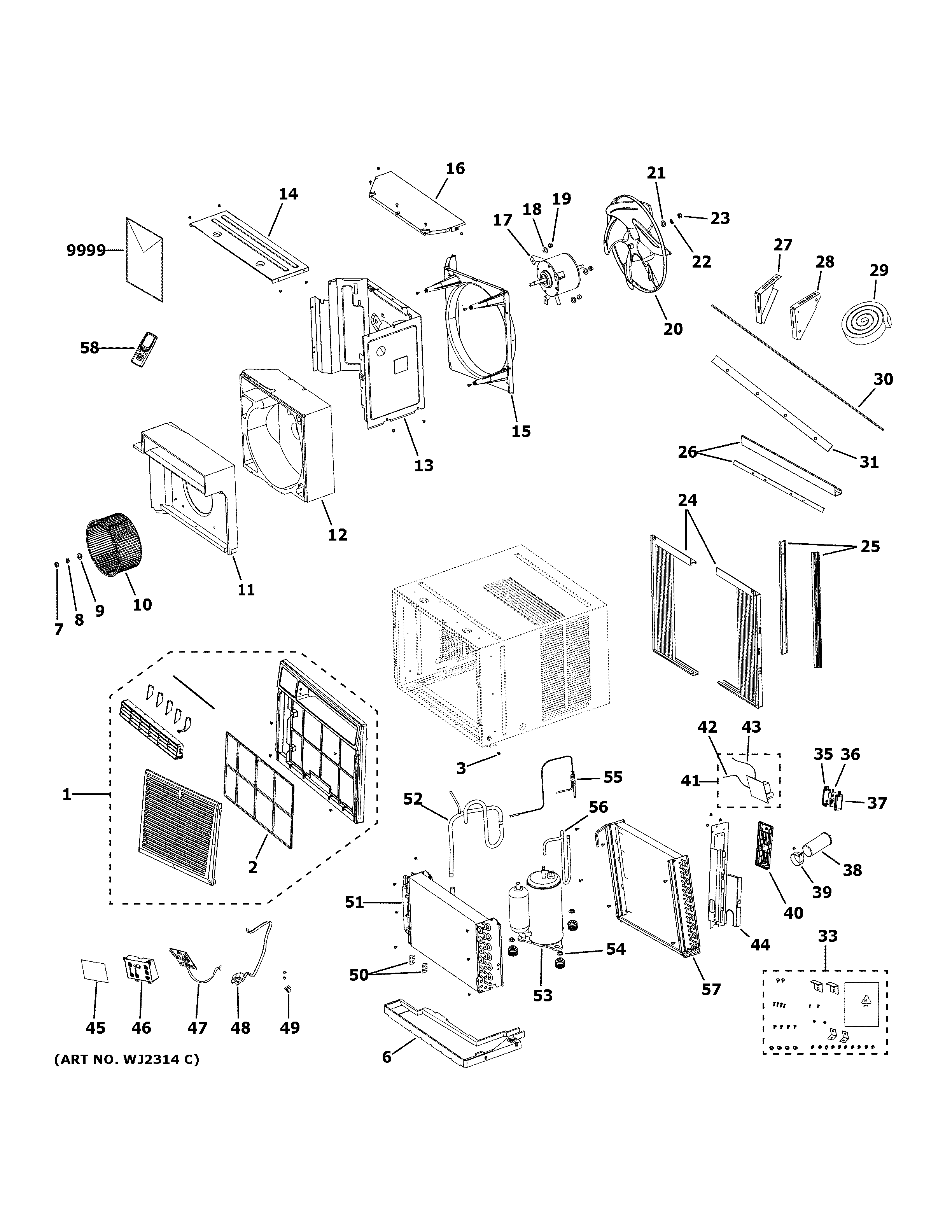

PositionProduct
1WJ82X30608 GE Front Panel Assembly
2WJ85X25180 GE Filter
3GEN WJ01X10343
6WJ05X10054 GE Air Conditioner Foam Water Tray
7WJ01X10347 GE Washer (6mm)
8WJ01X10266 GE Washer Assembly
9WJ43X10075 GE Gasket (Diameter 10mm)
10WJ73X10204 GE Centrifugal Fan
11WJ76X10307 GE Air Outlet Foam
12WJ76X10308 GE Air Conditioner Propeller Housing
13WJ66X10104 GE Motor Support Bracket
14WJ79X10274 GE Top Cover
15WJ79X10216 GE Condenser Cover
16WJ79X10217 GE Top Rear Cover
17WJ94X10334 GE Air Conditioner Fan Motor
18WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
19WJ01X10329 GE Air Conditioner Nut
20WJ73X10190 GE Air Conditioner Axial Flow Fan
21WJ43X10076 GE Gasket Diameter 8mm
22WJ43X10077 GE Gasket (Diameter 8mm)
23WJ01X10374 GE Levo Nut (M8)
24WJ65X30609 GE Fixing Frame Sub Assembly
25WJ69X30610 GE Curtain Quickset
26WJ65X30604 GE Guide Top
27WJ65X30606 GE Support Triangle Left
28WJ65X30605 GE Support Triangle Right
29WJ43X10079 GE Window Top Foam Gasket
30WJ43X10080 GE Window Seal Sash
31TOP RAIL GASKET
33WJ01X10376 GE Room Air Conditnr Installation
35WIFI BOX
36WIFI MODULE
37WIFI BOX COVER
38WJ20X21880 GE Capacitor
39WJ02X10034 GE Capacitor Clamp
40WJ26X24833 GE Mount Board
41WJ26X25835 GE Main Board
42WJ26X25836 GE Sensor Tube
43SENSOR TUBE
44WJ71X25837 GE Clapboard Front
45WJ01X25834 GE Air Conditioner Membrane
46WJ26X20179 GE Air Conditioner Remote Control Cover
47WJ26X25776 GE Air Conditioner Display Board
48WJ35X10165 GE Air Conditioner Power Cord
49WJ01X25833 GE Clamp Cable
50GEN WJ01X10330
51EVAPORATOR ASM
52WJ53X24828 GE Suction Tube Assembly
53WJ98X24830 GE Compressor and Fittings
54WJ01X10380 GE Rubber Grommet
55WJ53X20558 GE Capillary Sub-Assembly
56WJ49X20557 GE Discharge Tube
57WJ87X10296 GE Condenser Assembly
58WJ26X24768 GE Air Conditioner Remote Control
9999PM MINI MANUAL AND WIRING
9999PM OWNERS MANUAL
