AEG18DZL1 ROOM AIR CONDITIONER

AEG18DZL1 ROOM AIR CONDITIONER

Written by

in

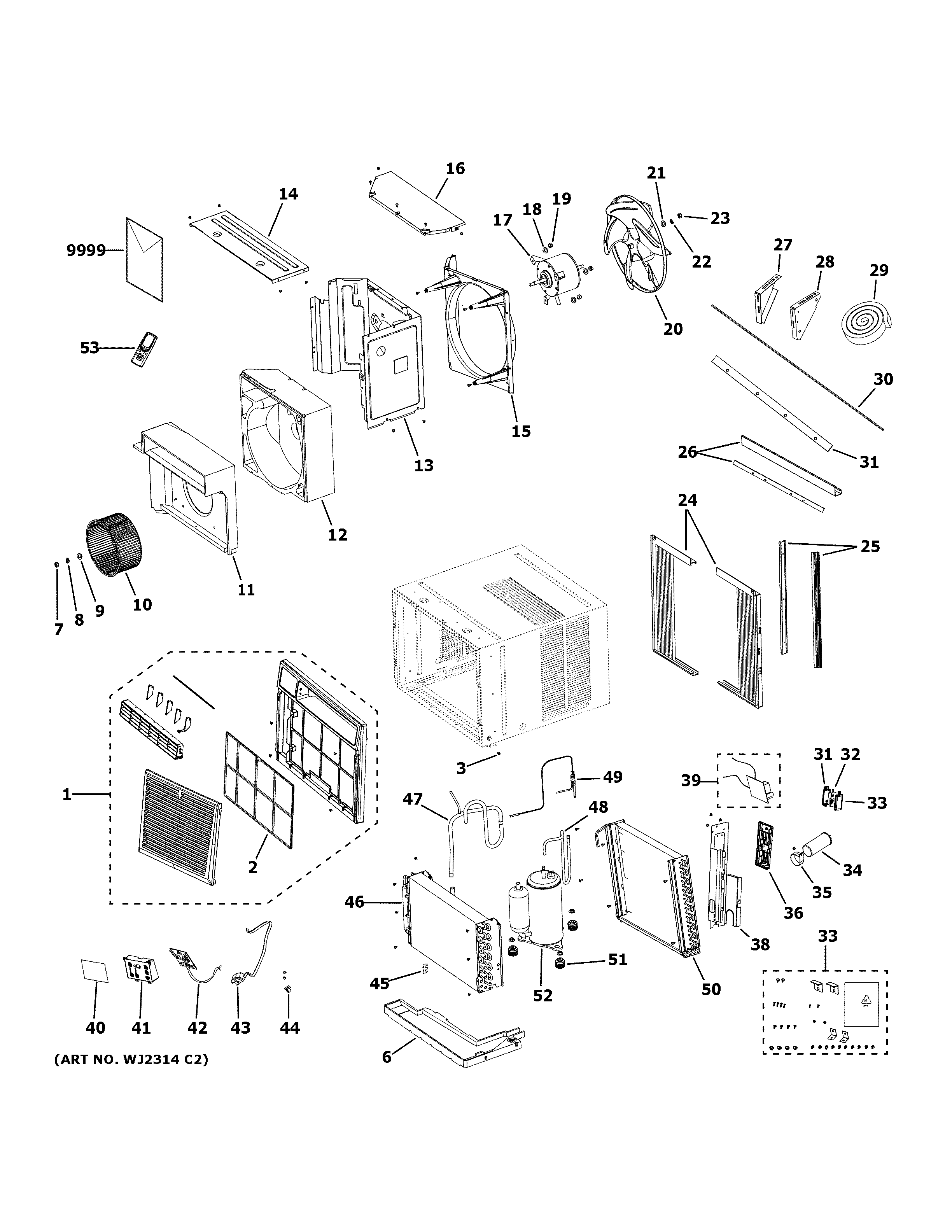

AEG18DZL1 ROOM AIR CONDITIONER

Products

PositionProduct
1WJ82X30608 GE Front Panel Assembly
2WJ85X25180 GE Filter
3SCREW ST4.2X9.5 TC
6WJ05X20192 GE Water Tray Foam
7WJ01X10347 GE Washer (6mm)
8WJ01X10313 GE Washer Air Conditioner
9WJ01X10314 GE Air Conditioner Nut with Washer
10WJ73X25853 GE Centrifugal Fan
11WJ76X10307 GE Air Outlet Foam
12WJ76X10308 GE Air Conditioner Propeller Housing
13WJ66X10104 GE Motor Support Bracket
14WJ79X10274 GE Top Cover
15WJ79X10216 GE Condenser Cover
16WJ79X10217 GE Top Rear Cover
17WJ94X10331 GE Air Conditioner Fan Motor
18WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
19WJ01X10329 GE Air Conditioner Nut
20WJ73X10190 GE Air Conditioner Axial Flow Fan
21WJ43X10076 GE Gasket Diameter 8mm
22WJ43X10077 GE Gasket (Diameter 8mm)
23WJ01X10374 GE Levo Nut (M8)
24WJ65X30609 GE Fixing Frame Sub Assembly
25WJ69X30610 GE Curtain Quickset
26WJ65X30604 GE Guide Top
27WJ65X30606 GE Support Triangle Left
28WJ65X30605 GE Support Triangle Right
29WJ43X10079 GE Window Top Foam Gasket
30WJ01X10376 GE Room Air Conditnr Installation
31WIFI BOX
32WiFi MODULE
33WIFI BOX COVER
34WJ02X10034 GE Capacitor Clamp
35WJ20X10207 GE Air Conditioner Capacitor
36WJ26X24833 GE Mount Board
38WJ05X20553 GE Front Clapboard
39WJ26X25855 GE Air Conditioner Main Board
40WJ01X25834 GE Air Conditioner Membrane
41WJ26X25854 GE Air Conditioner Electric Controller Box
42WJ26X25776 GE Air Conditioner Display Board
43WJ35X10165 GE Air Conditioner Power Cord
44WJ01X25833 GE Clamp Cable
45GEN WJ01X10330
46WJ88X20554 GE Air Conditioner Evaporator Assembly
47WJ57X20556 GE Suction Tube Assembly
48WJ49X20551 GE Discharge Tube
49CAPILLARY SUB-ASSY
50WJ87X20166 GE Air Conditioner Condenser Assembly
51WJ01X10380 GE Rubber Grommet
52WJ98X20555 GE Compressor and Fittings
53WJ26X24768 GE Air Conditioner Remote Control
9999PM MINI MANUAL AND WIRING
9999PM OWNERS MANUAL
