AEG24DZL1 ROOM AIR CONDITIONER

Products

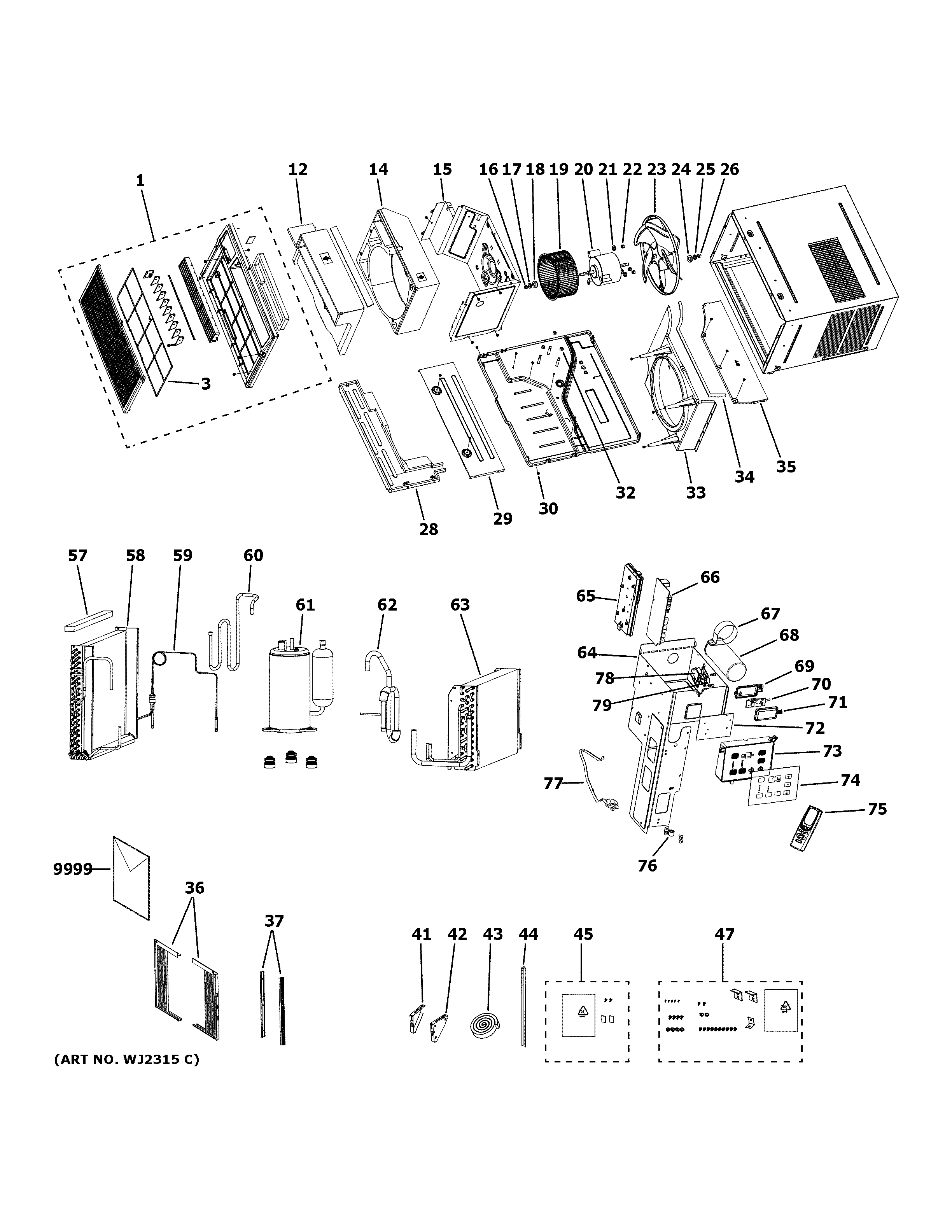

Position	Product
1	WJ71X23462 GE Air Conditioner Front Panel Assembly
3	WJ71X10710 GE Air Conditioner Filter
12	WJ76X10338 GE Foam Air Outlet
14	WJ76X10310 GE Propeller Housing
15	WJ01X20212 GE Motor Support Assembly
16	WJ01X10265 GE Washer Nut
17	WJ01X10266 GE Washer Assembly
18	WJ43X10075 GE Gasket (Diameter 10mm)
19	WJ73X21249 GE Centrifugal Fan
20	WJ95X10036 GE Air Conditioner Fan Motor
21	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
22	WJ01X10329 GE Air Conditioner Nut
23	WJ73X21247 GE Air Conditioner Axial Flow Fan
24	WJ43X10076 GE Gasket Diameter 8mm
25	WJ43X10077 GE Gasket (Diameter 8mm)
26	WJ01X10374 GE Levo Nut (M8)
28	WJ05X10064 GE Water Tray
29	WJ79X25874 GE Top Plate
30	WJ01X25775 GE Screw 4.2X9.5 Tc
32	WJ01X10335 GE Washer Nut M8
33	WJ88X21256 GE Condenser Cover
34	WJ66X10094 GE Sponge Rear Clapboard
35	WJ79X10246 GE Top Plate
36	WJ69X25877 GE Curtain Assembly
37	WJ68X23364 GE Air Conditioner Support Cabinet
41	WJ65X30606 GE Support Triangle Left
42	WJ65X30605 GE Support Triangle Right
43	WJ43X10079 GE Window Top Foam Gasket
44	WJ43X10080 GE Window Seal Sash
45	WJ01X10415 GE Hardware Kit
47	WJ01X23360 GE Air Conditioner Installation Hardware
57	WJ43X20215 GE Condenser Support
58	WJ88X21929 GE Condenser Assembly
59	WJ53X21927 GE Air Conditioner Capillary Assembly
60	DISCHARGE TUBE
61	WJ98X21928 GE Compressor and Fittings Assembly
62	WJ53X21933 GE Inhalation Tube Subassembly
63	WJ87X21931 GE Air Conditioner Evaporator Assembly
64	WJ26X25873 GE Control Assembly Cover
65	WJ26X24833 GE Mount Board
66	WJ26X25876 GE Main Board
67	WJ02X20201 GE Capacitor Clamp
68	WJ20X24725 GE Capacitor
69	WIFI BOX
70	WIFI MODULE
71	WIFI BOX COVER
72	WJ26X25875 GE Display Board
73	WJ07X20210 GE LCD Cover
74	WJ07X25878 GE Membrane
75	WJ26X24768 GE Air Conditioner Remote Control
76	CABLE CLAMP
77	WJ35X24839 GE Power Cord
78	WJ79X10255 GE OLP Cover
79	WJ23X10162 GE Overload Protector
9999	PM MINI MANUAL AND WIRING
9999	PM OWNERS MANUAL
