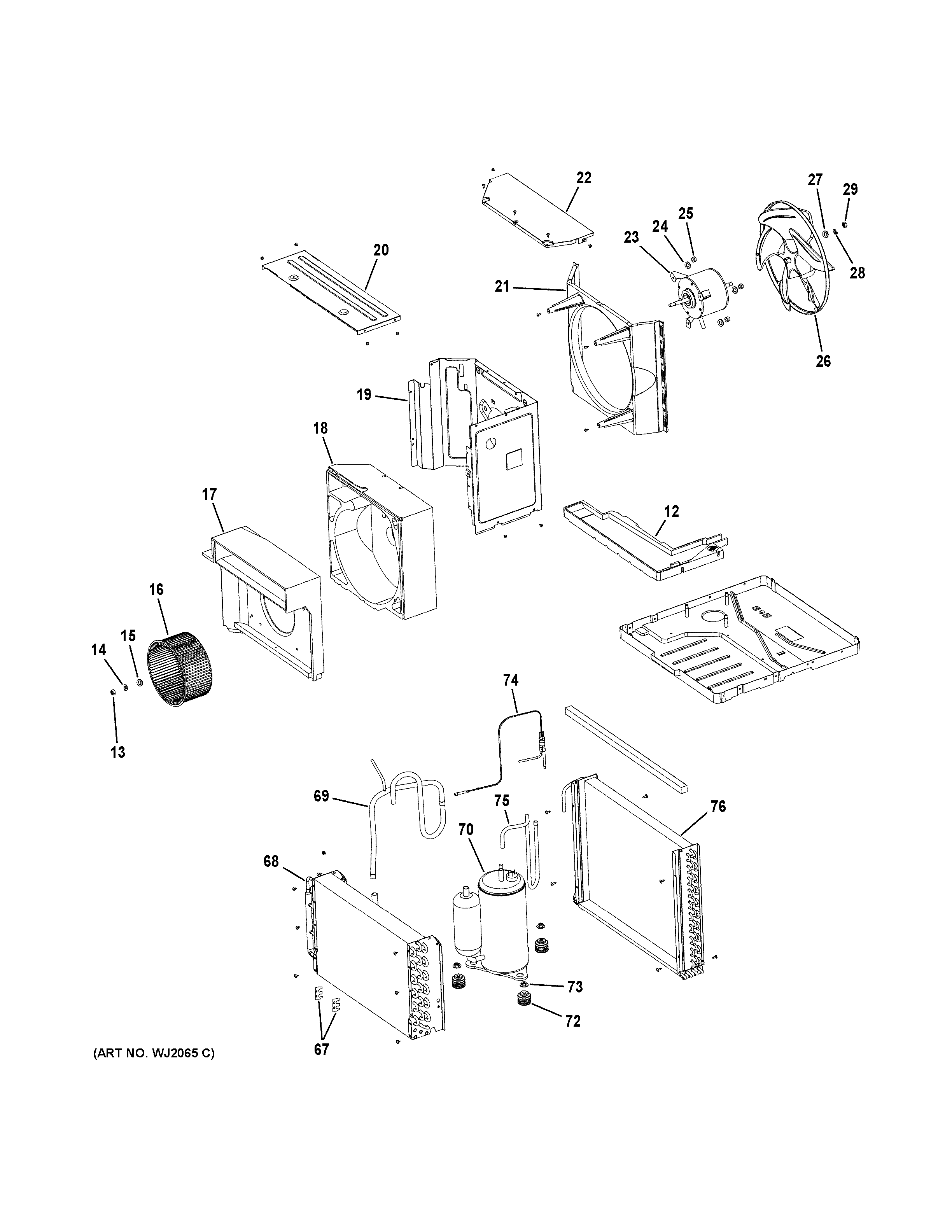

AEH18DQQ1 BASE PAN & UNIT PARTSadmin2025-04-26T08:49:34+00:00AEH18DQQ1 BASE PAN & UNIT PARTS ProductsPositionProduct12WJ05X10054 GE Air Conditioner Foam Water Tray13WJ01X10265 GE Washer Nut14WJ01X10266 GE Washer Assembly15WJ43X10075 GE Gasket (Diameter 10mm)16WJ73X10204 GE Centrifugal Fan17WJ76X10307 GE Air Outlet Foam18WJ76X10308 GE Air Conditioner Propeller Housing19MOTOR SUPPORTING20TOP COVER21WJ79X10216 GE Condenser Cover22WJ79X10217 GE Top Rear Cover23WJ94X10331 GE Air Conditioner Fan Motor24WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)25WJ01X10329 GE Air Conditioner Nut26WJ73X10190 GE Air Conditioner Axial Flow Fan27WJ43X10076 GE Gasket Diameter 8mm28WJ43X10077 GE Gasket (Diameter 8mm)29WJ01X10374 GE Levo Nut (M8)67WJ02X10036 GE Sensor Support68EVAPORATOR ASM69WJ57X10035 GE Suction Tube70WJ98X10329 GE Compressor Assembly72WJ01X10428 GE Rubber Grommet73WJ01X10335 GE Washer Nut M874CAPILLARY ASM75TUBE, DISCHARGE76CONDENSER ASM
