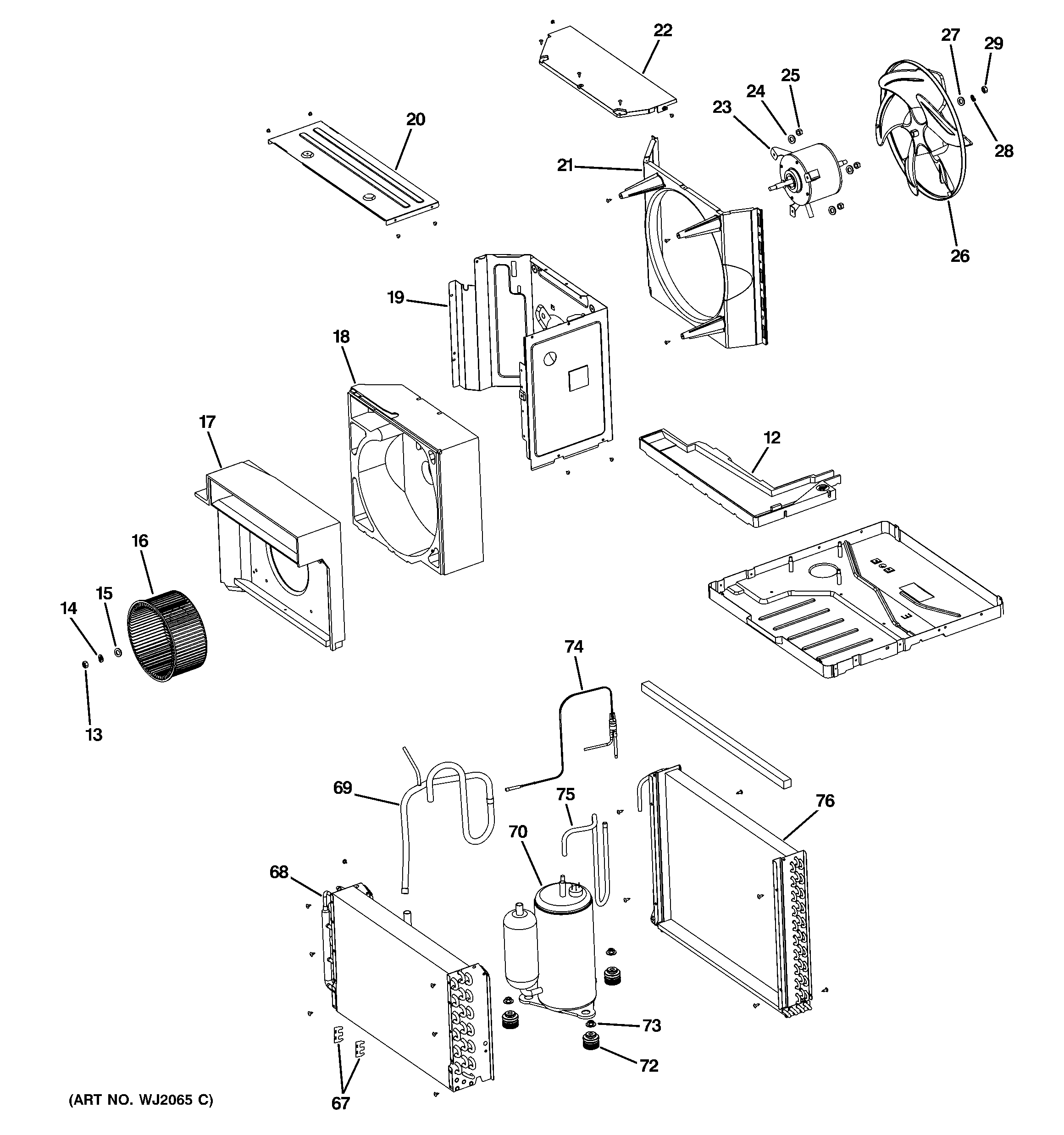

AEH18DSQ1 BASE PAN & UNIT PARTS

AEH18DSQ1 BASE PAN & UNIT PARTS

Written by

in

AEH18DSQ1 BASE PAN & UNIT PARTS

Products

PositionProduct
12GEN WJ05X20195
13GEN WJ88X20190
14WJ76X10307 GE Air Outlet Foam
15WJ01X10428 GE Rubber Grommet
16GEN WJ98X20187
17GEN WJ49X20193
18GEN WJ49X20188
19GEN WJ53X20185
20WJ73X10204 GE Centrifugal Fan
21WJ76X10308 GE Air Conditioner Propeller Housing
22WJ71X20196 GE Top Cover
23WJ66X10104 GE Motor Support Bracket
24WJ79X10217 GE Top Rear Cover
25WJ79X10216 GE Condenser Cover
26WJ94X20191 GE Air Conditioner Fan Motor
27WJ73X10190 GE Air Conditioner Axial Flow Fan
28WJ87X20166 GE Air Conditioner Condenser Assembly
29WJ90X10126 GE Cabinet Assembly
