AEH18DTL1 ROOM AIR CONDITIONER

Products

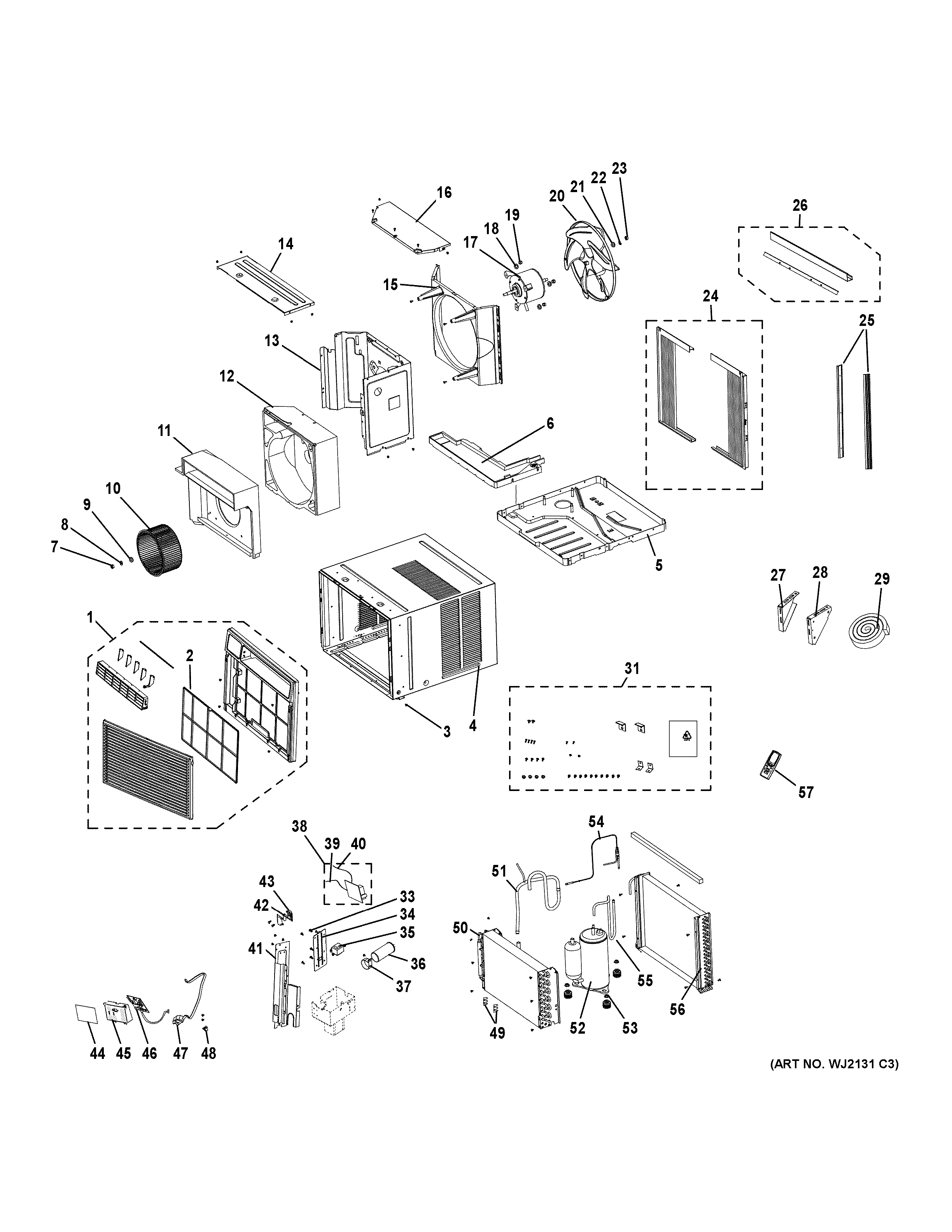

Position	Product
1	WJ71X10778 GE Air Conditioner Front Panel Assembly
2	WJ71X10668 GE Air Conditioner Filter Assembly
3	WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
4	WJ90X20266 GE Cabinet Assembly
5	CHASSIS SUB-ASSY
6	WJ05X20192 GE Water Tray Foam
7	WJ01X10265 GE Washer Nut
8	WJ01X10266 GE Washer Assembly
9	WJ43X10075 GE Gasket (Diameter 10mm)
10	WJ73X10204 GE Centrifugal Fan
11	WJ76X10307 GE Air Outlet Foam
12	WJ76X10308 GE Air Conditioner Propeller Housing
13	WJ66X10104 GE Motor Support Bracket
14	WJ79X10274 GE Top Cover
15	WJ79X10216 GE Condenser Cover
16	WJ79X10217 GE Top Rear Cover
17	WJ94X10331 GE Air Conditioner Fan Motor
18	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
19	WJ01X10329 GE Air Conditioner Nut
20	WJ73X10190 GE Air Conditioner Axial Flow Fan
21	WJ43X10076 GE Gasket Diameter 8mm
22	WJ43X10077 GE Gasket (Diameter 8mm)
23	WJ01X10374 GE Levo Nut (M8)
24	WJ69X10018 GE Air Conditioner Curtain Assembly
25	WJ68X10065 GE Cabinet Support
26	WJ65X21244 GE Air Conditioner Top Guide
27	WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
28	WJ67X20198 GE Right Case Mount Bracket
29	WJ43X10079 GE Window Top Foam Gasket
31	WJ01X10376 GE Room Air Conditnr Installation
33	WJ01X10354 GE Support PCB
35	WJ27X10154 GE Air Conditioner Transformer
36	WJ20X10207 GE Air Conditioner Capacitor
37	WJ02X10034 GE Capacitor Clamp
38	WJ26X20550 GE Air Conditioner Main Control Board
39	WJ27X10122 GE Air Conditioner Thermostat
40	WJ27X10135 GE Sensor Tube
41	WJ05X20553 GE Front Clapboard
42	WJ23X10162 GE Overload Protector
43	WJ79X10255 GE OLP Cover
44	WJ01X20176 GE Air Conditioner Membrane
45	WJ26X20179 GE Air Conditioner Remote Control Cover
46	WJ26X20184 GE Air Conditioner Room Display
47	WJ35X10165 GE Air Conditioner Power Cord
48	CABLE CLAMP
49	WJ71X20269 GE Electric Box Side Plate
50	WJ88X20554 GE Air Conditioner Evaporator Assembly
51	WJ57X20556 GE Suction Tube Assembly
52	WJ98X20555 GE Compressor and Fittings
53	WJ01X10335 GE Washer Nut M8
54	CAPILLARY SUB-ASSY
55	WJ49X20551 GE Discharge Tube
56	WJ87X20166 GE Air Conditioner Condenser Assembly
57	WJ26X20522 GE Air Conditioner Remote Controller
