AEH24DVH1 ROOM AIR CONDITIONER

Products

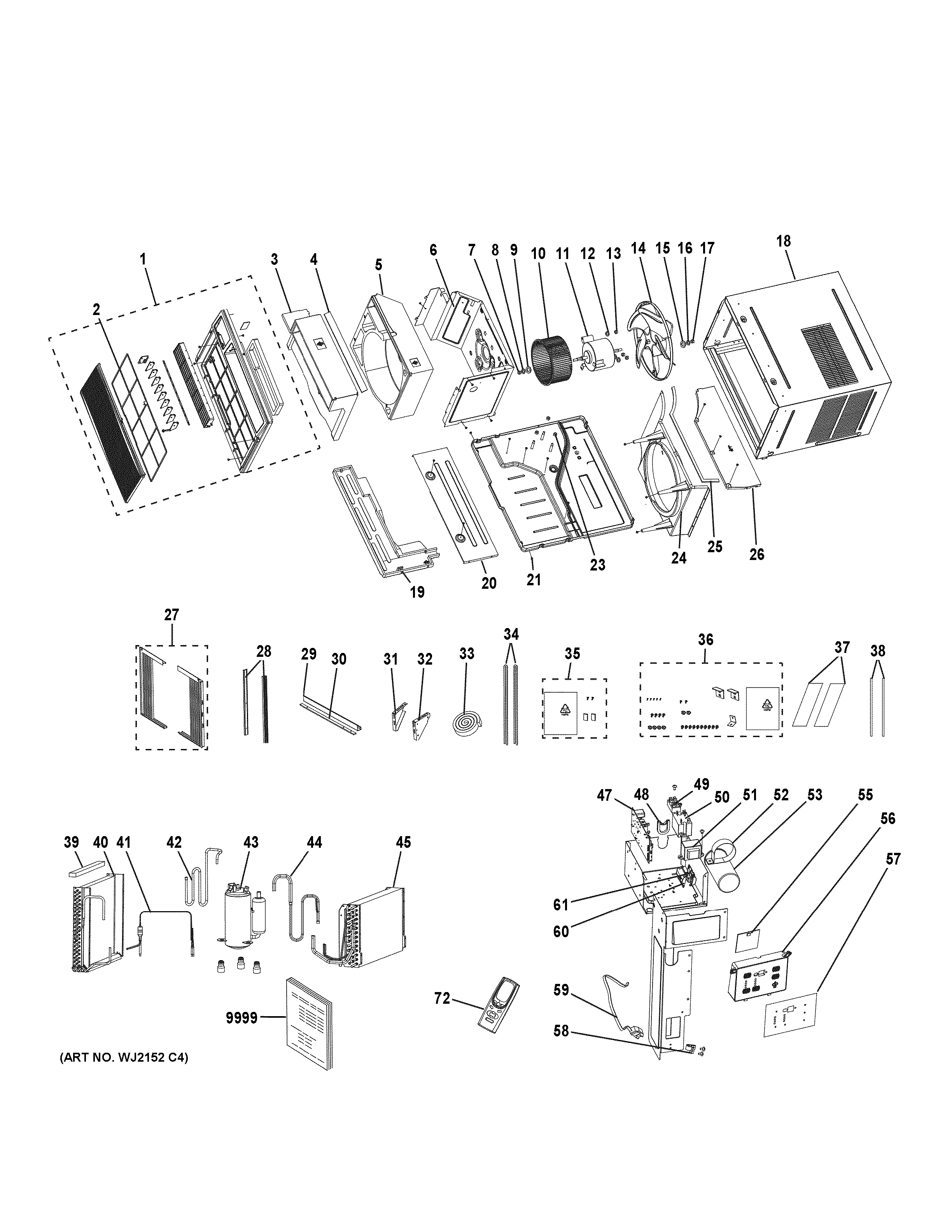

Position	Product
1	WJ71X10779 GE Front Panel Assembly
2	WJ71X10710 GE Air Conditioner Filter
3	WJ76X10338 GE Foam Air Outlet
4	WJ43X20216 GE Connecting Foam Sponge
5	WJ76X10310 GE Propeller Housing
6	WJ01X20212 GE Motor Support Assembly
7	WJ01X10265 GE Washer Nut
8	WJ01X10266 GE Washer Assembly
9	WJ43X10075 GE Gasket (Diameter 10mm)
10	WJ73X21249 GE Centrifugal Fan
11	WJ94X20207 GE Fan Motor
12	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
13	WJ01X10329 GE Air Conditioner Nut
14	WJ73X21247 GE Air Conditioner Axial Flow Fan
15	WJ43X10076 GE Gasket Diameter 8mm
16	WJ43X10077 GE Gasket (Diameter 8mm)
17	WJ01X10374 GE Levo Nut (M8)
18	WJ90X20542 GE Cabinet Assembly
19	WJ05X10064 GE Water Tray
20	WJ79X10244 GE Top Plate
21	WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
23	WJ01X10335 GE Washer Nut M8
24	WJ88X21256 GE Condenser Cover
25	WJ66X10094 GE Sponge Rear Clapboard
26	WJ79X10246 GE Top Plate
27	WJ69X10017 GE Air Conditioner Curtain Assembly
28	WJ68X10064 GE Cabinet Support
29	WJ82X10069 GE Top Guide
30	WJ43X10082 GE Gasket Form
31	WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
32	WJ67X20198 GE Right Case Mount Bracket
33	WJ43X10079 GE Window Top Foam Gasket
34	WJ43X10080 GE Window Seal Sash
35	WJ01X10415 GE Hardware Kit
36	WJ01X21257 GE Installation Hardware
37	WJ43X21258 GE Sealing Sponge
38	WJ43X21200 GE Air Conditioner Accordian Panel Seal
39	WJ43X20215 GE Condenser Support
40	WJ87X20545 GE Condenser Assembly
41	WJ53X20544 GE Capillary Subassembly
42	WJ49X20547 GE Air Conditioner Discharge Tube
43	WJ98X20546 GE Air Conditioner Compressor and Fittings
44	WJ57X20549 GE Air Conditioner Suction Tube Assembly
45	WJ87X21255 GE Air Conditioner Evaporator Assembly
47	WJ26X20543 GE Air Conditioner Main Board
48	WJ01X20199 GE Loop Cable Cross
49	TERMINAL BOARD
50	WJ24X20540 GE Relay
51	WJ27X10154 GE Air Conditioner Transformer
52	WJ02X20201 GE Capacitor Clamp
53	WJ20X20541 GE Air Conditioner CBB65 Capacitor
55	WJ26X20184 GE Air Conditioner Room Display
56	WJ07X20210 GE LCD Cover
57	WJ07X20211 GE Membrane
58	CABLE CLAMP
59	WJ35X10168 GE Air Conditioner Power Cord
60	WJ79X10255 GE OLP Cover
61	WJ23X10162 GE Overload Protector
72	WJ26X20522 GE Air Conditioner Remote Controller
9999	PM MINI-MANUAL
9999	PM OWNERS MANUAL
