AEH24DXL1 GRILLE & CHASSIS PARTS

AEH24DXL1 GRILLE & CHASSIS PARTS

Written by

in

AEH24DXL1 GRILLE & CHASSIS PARTS

Products

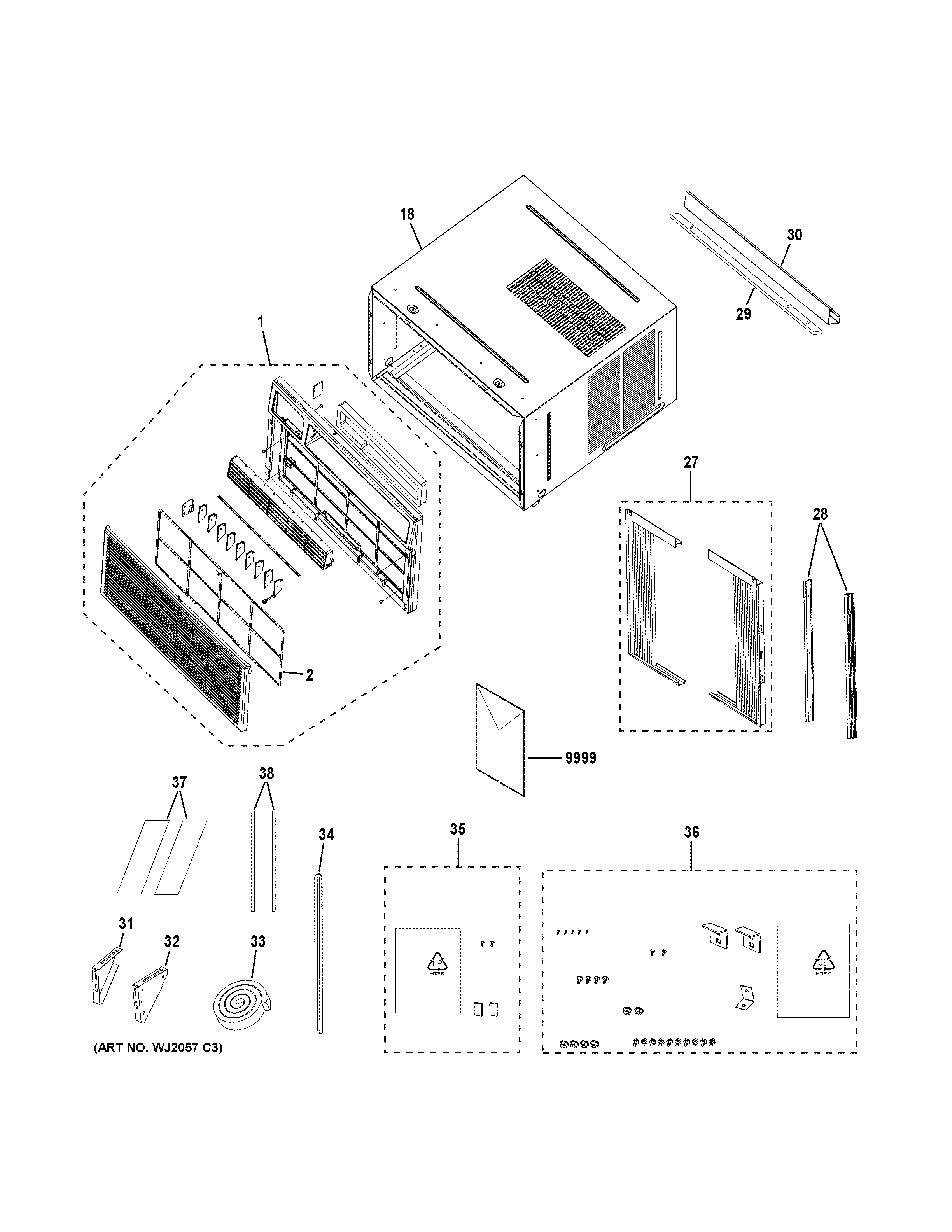

PositionProduct
1WJ71X10779 GE Front Panel Assembly
2WJ71X10710 GE Air Conditioner Filter
18WJ90X20542 GE Cabinet Assembly
27WJ69X10017 GE Air Conditioner Curtain Assembly
28WJ68X10064 GE Cabinet Support
29WJ82X10069 GE Top Guide
30WJ43X10082 GE Gasket Form
31WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
32WJ67X20198 GE Right Case Mount Bracket
33WJ43X10079 GE Window Top Foam Gasket
34WJ43X10080 GE Window Seal Sash
35WJ01X10415 GE Hardware Kit
36WJ01X21257 GE Installation Hardware
37WJ43X21258 GE Sealing Sponge
38WJ43X21200 GE Air Conditioner Accordian Panel Seal
9999PM USE & CARE
9999PM MINI MANUAL
