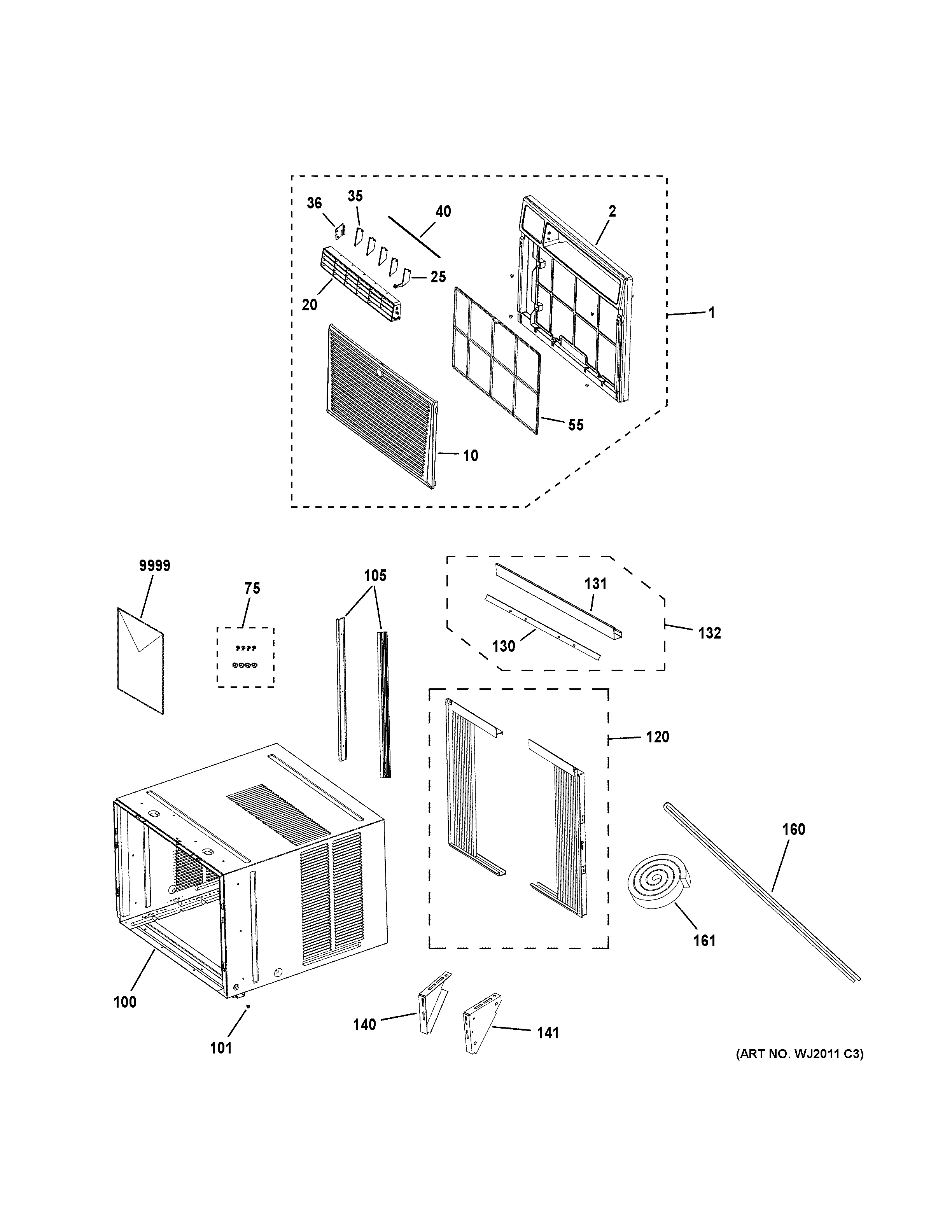

AEH25DPL1 GRILLE & CHASSIS PARTS

Products

Position	Product
1	FRONT PANEL ASM
2	PANEL ASM, FRONT
10	WJ71X10715 GE Front Panel
20	AIR GUIDE
25	SWING LOUVER 1
35	SWING LOUVER
36	SUPPORT OF LOUVER
40	LINK VERTICAL LOUVER
55	WJ71X10710 GE Air Conditioner Filter
75	WJ01X10415 GE Hardware Kit
100	CABINET ASM
101	SELF-TAPPING SCREW
105	WJ68X10064 GE Cabinet Support
120	WJ69X10017 GE Air Conditioner Curtain Assembly
130	WJ43X10082 GE Gasket Form
131	WJ82X10069 GE Top Guide
132	CURTAIN ASM
140	WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
141	WJ67X10003 GE Right Side Case Mount Bracket
160	WJ43X10080 GE Window Seal Sash
161	WJ43X10079 GE Window Top Foam Gasket
9999	MINI MANUAL
9999	WJ01X10433 GE Hardware Installation
9999	PM OWNERS MANUAL/INSTALL
