AEL10AVL1 ROOM AIR CONDITIONER

Products

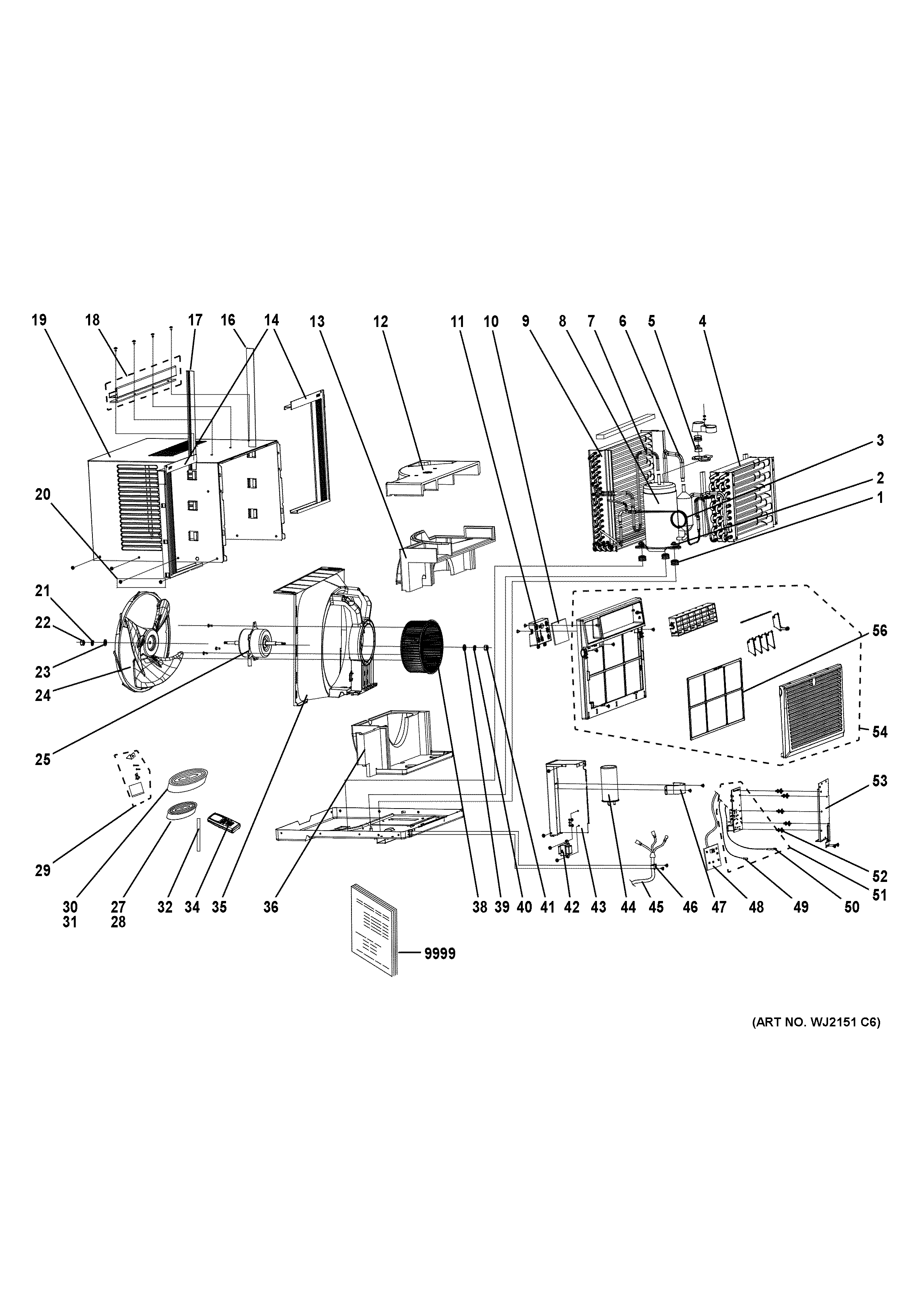

Position	Product
1	WJ01X10435 GE Rubber Grommet
2	NUT
3	WJ53X21233 GE Air Conditioner Capillary Assembly
4	WJ87X21898 GE Evaporator Assembly
5	OVERLOAD PROTECTOR
6	WJ53X21281 GE Suction Tube
7	WJ53X21897 GE Discharge Tube
8	COMPRESSOR AND FITTINGS
9	WJ88X21896 GE Condenser Assembly
10	WJ07X20239 GE Escutcheon
11	WJ05X20235 GE LCD Cover
12	WJ76X21806 GE Indoor Fan Shroud Upper
13	WJ76X21808 GE Indoor Fan Shroud Center
14	WJ86X21887 GE Curtain Assembly
16	WJ65X21892 GE Left Side Panel Rail
17	WJ65X21893 GE Side Panel Right Rail
18	WJ65X21824 GE Top Rail Assembly
19	CABINET ASSY
20	WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
21	WJ01X10313 GE Washer Air Conditioner
22	WJ01X10314 GE Air Conditioner Nut with Washer
23	WJ01X10312 GE Air Conditioner Washer
24	WJ73X21228 GE Outdoor Fan
25	WJ94X21809 GE Air Conditioner Fan Motor
27	WJ43X21200 GE Air Conditioner Accordian Panel Seal
28	WJ43X21888 GE Curtain Seal
29	WJ01X21231 GE Room Air Conditnr Installation
30	WJ01X10425 GE Gasket Seal
31	WJ01X10426 GE Gasket Seal
32	CURTAIN SEAL TOP RAIL
34	WJ26X20522 GE Air Conditioner Remote Controller
35	WJ76X21810 GE Outdoor Fan Shroud
36	WJ76X21807 GE Indoor Lower Fan Shroud
38	CENTRIFUGAL FAN
39	WJ01X10347 GE Washer (6mm)
40	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
41	WJ01X10329 GE Air Conditioner Nut
42	WJ27X20238 GE Air Conditioner Transformer
43	WJ05X20228 GE Electric Box
44	WJ20X21201 GE Capacitor
45	WJ35X10169 GE Power Cord
46	WJ03X20292 GE Cable Clamp
47	WJ03X20231 GE Capacitor Clamp
48	WJ26X21846 GE Air Conditioner Display Board
49	WJ62X25554 GE Sensor Tube
50	WJ27X10122 GE Air Conditioner Thermostat
51	WJ26X21894 GE Main Board
52	WJ65X20236 GE PCB Support
53	WJ05X20229 GE Electric Box Cover
54	WJ71X21259 GE Front Panel Assembly
56	WJ85X21215 GE Air Filter Replacement
9999	PM OWNERS & INSTALL
