AEL12ASL1 ROOM AIR CONDITIONER

AEL12ASL1 ROOM AIR CONDITIONER

Written by

in

AEL12ASL1 ROOM AIR CONDITIONER

Products

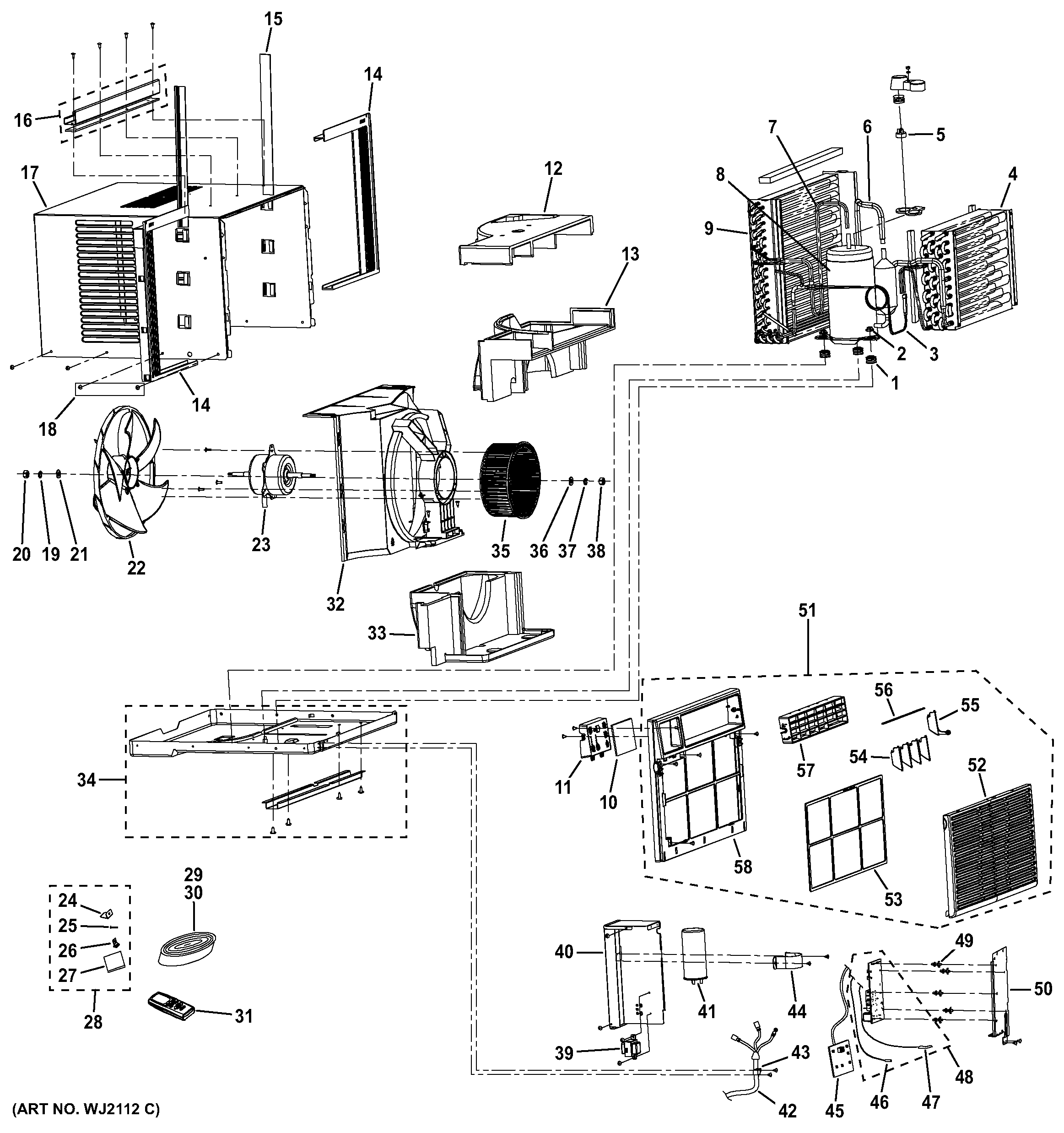

Position	Product
1	WJ01X10419 GE Grommet Rubber
2	WJ01X10335 GE Washer Nut M8
3	WJ53X20502 GE Capillary Subassembly
4	GEN WJ87X20224
6	GEN WJ57X20286
7	GEN WJ62X10033
8	GEN WJ98X20283
9	WJ87X20284 GE Condenser Assembly
10	WJ07X20239 GE Escutcheon
11	WJ05X20235 GE LCD Cover
12	GEN WJ43X20233
13	GEN WJ43X20232
14	WJ68X10067 GE Air Conditioner Curtain Assembly
15	WJ66X10095 GE Connection Bar to Cabinet
16	TOP RAIL ASM
17	GEN WJ90X10137
18	WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
19	WJ01X10313 GE Washer Air Conditioner
20	WJ01X10314 GE Air Conditioner Nut with Washer
21	WJ01X10312 GE Air Conditioner Washer
22	GEN WJ73X10220
23	GEN WJ94X10333
24	WJ01X10349 GE Room Air Conditioner Installation Hardware
25	WJ01X10351 GE Screw
26	WJ43X20227 GE Installation Clamp
27	WJ01X10350 GE Plastic Bag
28	WJ01X10422 GE Installation Hardware Assembly
29	WJ01X10425 GE Gasket Seal
30	WJ01X10426 GE Gasket Seal
31	WJ26X20522 GE Air Conditioner Remote Controller
32	GEN WJ76X20287
33	GEN WJ76X10333
34	GEN WJ90X20282
35	GEN WJ73X20281
36	WJ01X10347 GE Washer (6mm)
37	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
38	WJ01X10329 GE Air Conditioner Nut
39	WJ27X20238 GE Air Conditioner Transformer
40	WJ05X20228 GE Electric Box
41	WJ20X10201 GE Air Conditioner Capacitor
42	WJ35X10169 GE Power Cord
43	CABLE CLAMP
44	WJ03X20231 GE Capacitor Clamp
45	WJ26X20184 GE Air Conditioner Room Display
46	WJ62X25554 GE Sensor Tube
47	WJ27X10122 GE Air Conditioner Thermostat
48	GEN WJ26X20237
49	WJ65X20236 GE PCB Support
50	WJ05X20229 GE Electric Box Cover
51	GEN WJ71X20234
52	GEN WJ82X10080
53	WJ71X10671 GE Air Conditioner Filter Assembly
54	GEN WJ71X10574
55	WJ71X10573 GE Air Conditioner Swing Louver
56	LINK, LOUVER VERTICAL
57	WJ14X10082 GE Air Guide Frame
58	GEN WJ71X10730
