AEL14ASL1 ROOM AIR CONDITIONER

AEL14ASL1 ROOM AIR CONDITIONER

Written by

in

AEL14ASL1 ROOM AIR CONDITIONER

Products

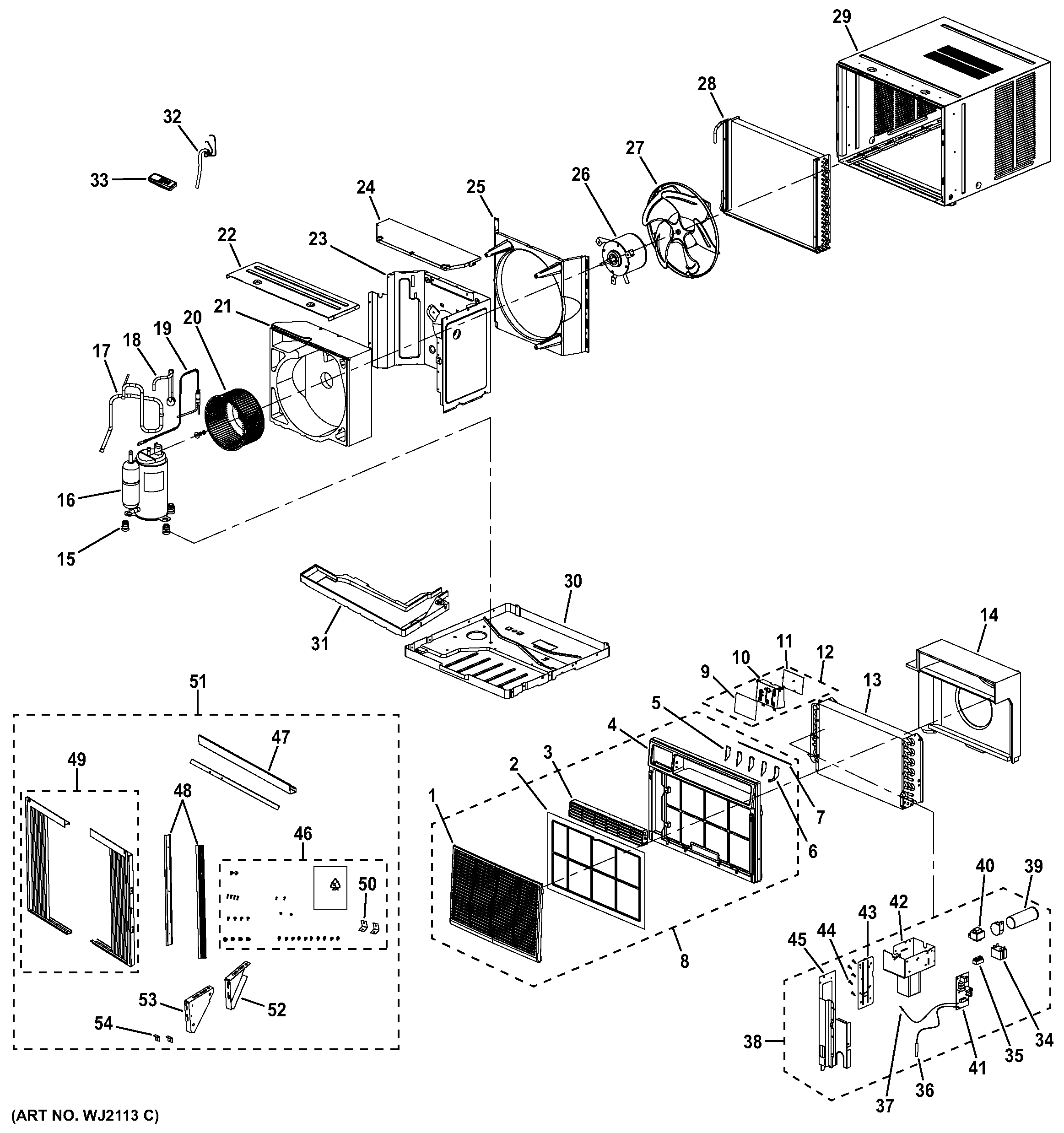

PositionProduct
1GEN WJ71X10732
2WJ71X10668 GE Air Conditioner Filter Assembly
3GEN WJ14X10086
4GEN WJ71X10725
5GEN WJ71X10574
6WJ71X10573 GE Air Conditioner Swing Louver
7LINK VERTICAL LOUVER
7WJ82X10081 GE Front Panel Assembly
9WJ01X20176 GE Air Conditioner Membrane
10WJ26X20179 GE Air Conditioner Remote Control Cover
11WJ26X20184 GE Air Conditioner Room Display
12GEN WJ05X20178
13EVAPORATOR ASSY
14WJ76X10307 GE Air Outlet Foam
15GEN WJ01X10429
16WJ98X20165 GE Compressor and Fittings
17INHALATION TUBE SUB-ASSY
18GEN WJ49X20167
19GEN WJ53X20163
20WJ73X10204 GE Centrifugal Fan
21WJ76X10308 GE Air Conditioner Propeller Housing
22WJ05X20182 GE Refrigerator Top Cover Board Sub-Assembly
23WJ66X10104 GE Motor Support Bracket
24WJ79X10217 GE Top Rear Cover
25WJ79X10216 GE Condenser Cover
26WJ94X10334 GE Air Conditioner Fan Motor
27WJ73X10190 GE Air Conditioner Axial Flow Fan
28WJ87X20166 GE Air Conditioner Condenser Assembly
29WJ90X10126 GE Cabinet Assembly
30CHASSIS SUB-ASSY
31WJ05X10054 GE Air Conditioner Foam Water Tray
32WJ35X10170 GE Air Conditioner Power Cord
33WJ26X20522 GE Air Conditioner Remote Controller
34GEN WJ24X10008
36GEN WJ27X10140
37WJ26X25108 GE Temperature Sensor
38GEN WJ05X20168
39WJ20X10189 GE Air Conditioner Capacitor
40WJ27X10170 GE Transformer
41GEN WJ26X20175
42GEN WJ05X20169
43GEN WJ05X20180
44WJ01X10354 GE Support PCB
45GEN WJ79X20171
46WJ01X10376 GE Room Air Conditnr Installation
47WJ82X20183 GE Top Guide
48WJ68X10065 GE Cabinet Support
49WJ69X10018 GE Air Conditioner Curtain Assembly
50WJ66X10076 GE Window Lock Bracket
51WJ01X20177 GE Mounting Accessories
52GEN WJ82X20181
53WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
54WJ67X10004 GE Support Bracket
