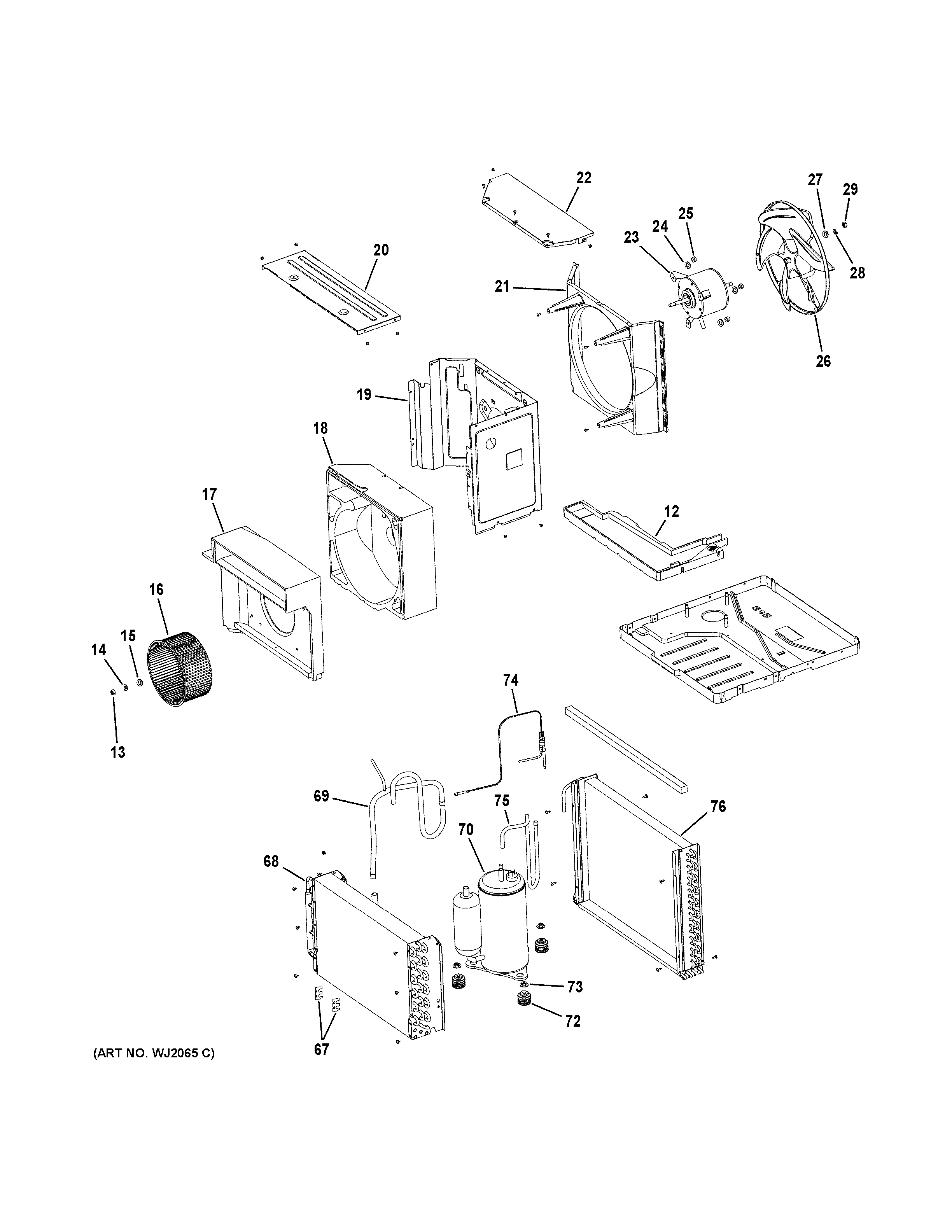

AEL18DQQ1 BASE PAN & UNIT PARTS

Products

Position	Product
12	WJ05X10054 GE Air Conditioner Foam Water Tray
13	WJ01X10265 GE Washer Nut
14	WJ01X10266 GE Washer Assembly
15	WJ43X10075 GE Gasket (Diameter 10mm)
16	WJ73X10204 GE Centrifugal Fan
17	WJ76X10307 GE Air Outlet Foam
18	WJ76X10308 GE Air Conditioner Propeller Housing
19	MOTOR SUPPORTING
20	TOP COVER
21	WJ79X10216 GE Condenser Cover
22	WJ79X10217 GE Top Rear Cover
23	WJ94X10331 GE Air Conditioner Fan Motor
24	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
25	WJ01X10329 GE Air Conditioner Nut
26	WJ73X10190 GE Air Conditioner Axial Flow Fan
27	WJ43X10076 GE Gasket Diameter 8mm
28	WJ43X10077 GE Gasket (Diameter 8mm)
29	WJ01X10374 GE Levo Nut (M8)
67	WJ02X10036 GE Sensor Support
68	EVAPORATOR ASM
69	WJ57X10035 GE Suction Tube
70	WJ98X10329 GE Compressor Assembly
72	WJ01X10428 GE Rubber Grommet
73	WJ01X10335 GE Washer Nut M8
74	CAPILLARY ASM
75	TUBE, DISCHARGE
76	CONDENSER ASM
