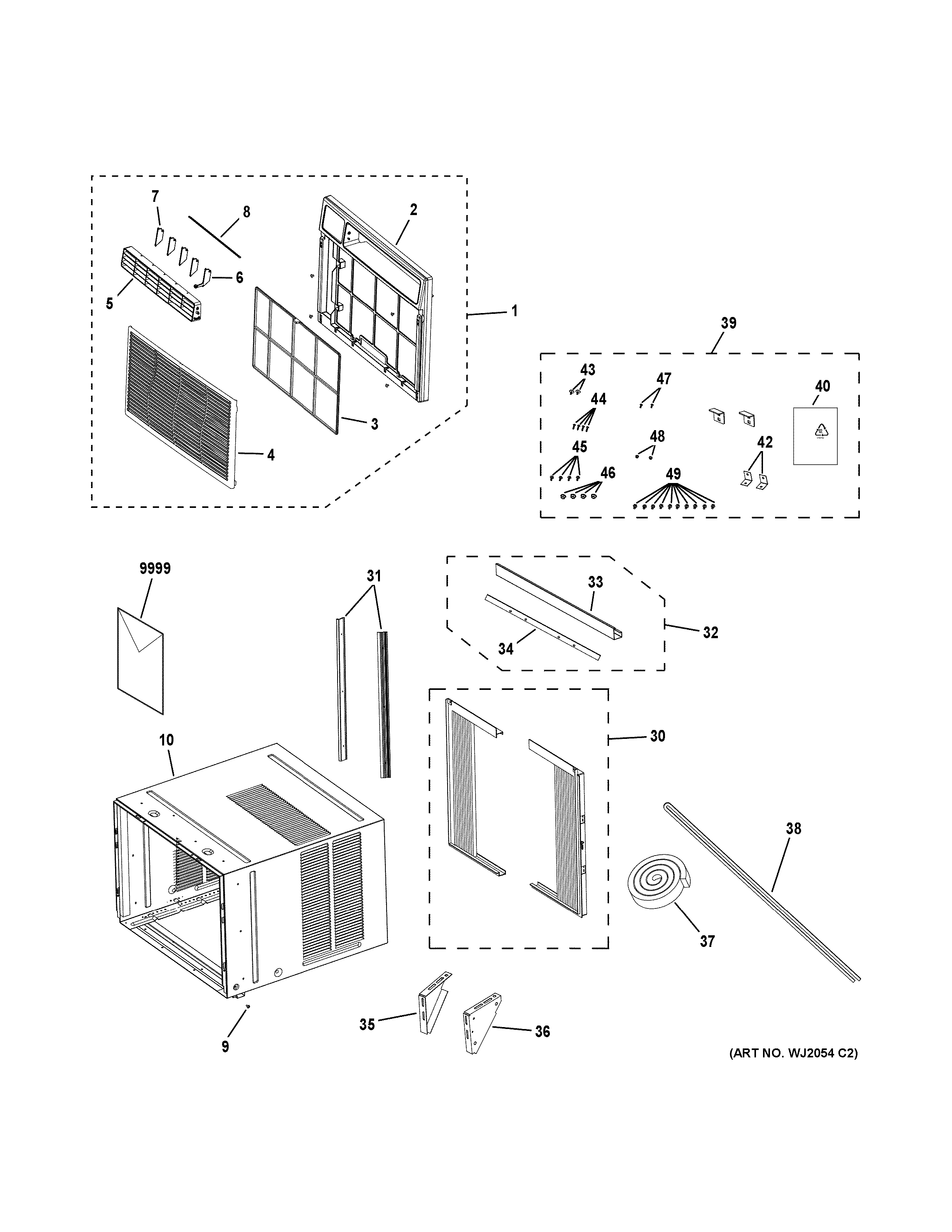

AEL18DQQ1 GRILLE & CHASSIS PARTS

AEL18DQQ1 GRILLE & CHASSIS PARTS

Written by

in

AEL18DQQ1 GRILLE & CHASSIS PARTS

Products

PositionProduct
1WJ82X10081 GE Front Panel Assembly
2GEN WJ71X10725
3WJ71X10668 GE Air Conditioner Filter Assembly
4GEN WJ71X10732
5GEN WJ14X10086
6WJ71X10573 GE Air Conditioner Swing Louver
7GEN WJ71X10574
8LINK VERTICAL LOUVER
9SELF-TAPPING SCREW
10WJ90X10126 GE Cabinet Assembly
30WJ69X10018 GE Air Conditioner Curtain Assembly
31WJ68X10065 GE Cabinet Support
32WJ14X10087 GE Air Conditioner Top Guide Assembly
33WJ65X21244 GE Air Conditioner Top Guide
34WJ43X10078 GE Top Rail Gasket
35WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
36WJ67X10003 GE Right Side Case Mount Bracket
37WJ43X10079 GE Window Top Foam Gasket
38WJ43X10080 GE Window Seal Sash
39WJ01X10376 GE Room Air Conditnr Installation
40WJ01X10350 GE Plastic Bag
42WJ66X10098 GE Window Locking Bracket
43BOLT M6X19
44WJ01X10351 GE Screw
45BOLT M5X13
46NUT M5X5
47SCREW
48NUT M6X6
49SCREW M4.8X8
9999MINI MANUAL
9999PM OWNERS MANUAL/INSTALL
