AEL24DSL1 ROOM AIR CONDITIONER

AEL24DSL1 ROOM AIR CONDITIONER

Written by

in

AEL24DSL1 ROOM AIR CONDITIONER

Products

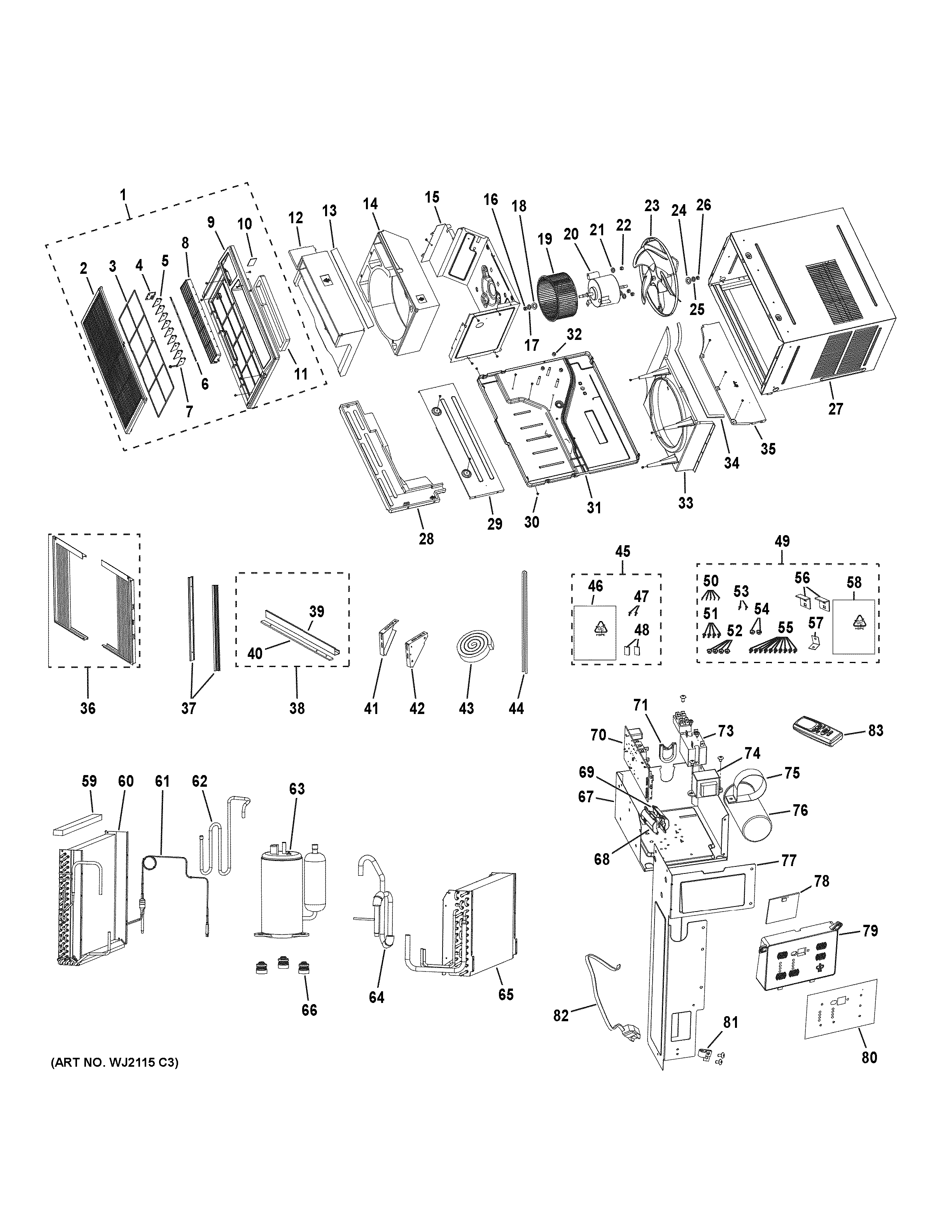

PositionProduct
1PANEL ASM, FRONT
2GRILL FRONT, AIR INTAKE
3WJ71X10710 GE Air Conditioner Filter
4SUPPORT OF LOUVER
5SWING LOUVER
6LINK VERTICAL LOUVER
7SWING LOUVER 1
8AIR GUIDE
9PANEL ASM, FRONT
10SPONGE 1 (PANEL FRAME)
11WJ43X20217 GE Panel Frame Support
12WJ76X10338 GE Foam Air Outlet
13WJ43X20216 GE Connecting Foam Sponge
14WJ76X10310 GE Propeller Housing
15WJ01X20212 GE Motor Support Assembly
16WJ01X10265 GE Washer Nut
17WJ01X10266 GE Washer Assembly
18WJ43X10075 GE Gasket (Diameter 10mm)
19WJ73X10204 GE Centrifugal Fan
20WJ94X20207 GE Fan Motor
21WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
22WJ01X10329 GE Air Conditioner Nut
23WJ73X10190 GE Air Conditioner Axial Flow Fan
24WJ43X10076 GE Gasket Diameter 8mm
25WJ43X10077 GE Gasket (Diameter 8mm)
26WJ01X10374 GE Levo Nut (M8)
27CABINET ASM
28WJ05X10064 GE Water Tray
29WJ79X10244 GE Top Plate
30SELF-TAPPING SCREW
31CHASSIS SUB-ASSY
32WJ01X10335 GE Washer Nut M8
33WJ79X10245 GE Condenser Cover
34WJ66X10094 GE Sponge Rear Clapboard
35WJ79X10246 GE Top Plate
36WJ69X10017 GE Air Conditioner Curtain Assembly
37WJ68X10064 GE Cabinet Support
38CURTAIN ASM
39WJ82X10069 GE Top Guide
40WJ43X10082 GE Gasket Form
41WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
42WJ67X20198 GE Right Case Mount Bracket
43WJ43X10079 GE Window Top Foam Gasket
44WJ43X10080 GE Window Seal Sash
45WJ01X10415 GE Hardware Kit
47SCREW ST4.2X13 TA
48FORM GASKET 4
49WJ01X10433 GE Hardware Installation
50SCREW ST4.2X19 TA
51BOLT M5X13
52NUT M5X5
53BOLT M6X19
54NUT M6X6
55SCREW M4.8X8
56WJ67X10004 GE Support Bracket
57WINDOW LOCKING BRACKET
58WJ01X10350 GE Plastic Bag
59WJ43X20215 GE Condenser Support
60WJ87X10263 GE Air Conditioner Condenser Assembly
61WJ53X20202 GE Capillary Subassembly
62DISCHARGE TUBE
63COMPRESSOR AND FITTINGS
64WJ57X10056 GE Air Conditioner Suction Tube
65WJ88X10240 GE Air Conditioner Evaporator Assembly
66WJ01X20205 GE Compressor Gasket
67WJ07X20206 GE Electric Box Sub-Assembly
68WJ79X10255 GE OLP Cover
69WJ23X10162 GE Overload Protector
70GEN WJ26X20175
71WJ01X20199 GE Loop Cable Cross
73GEN WJ24X10004
74WJ27X10154 GE Air Conditioner Transformer
75WJ02X20201 GE Capacitor Clamp
76GEN WJ20X20200
77GEN WJ05X20209
78WJ26X20184 GE Air Conditioner Room Display
79WJ07X20210 GE LCD Cover
80WJ07X20211 GE Membrane
81CABLE CLAMP
82WJ35X10168 GE Air Conditioner Power Cord
83WJ26X20522 GE Air Conditioner Remote Controller
