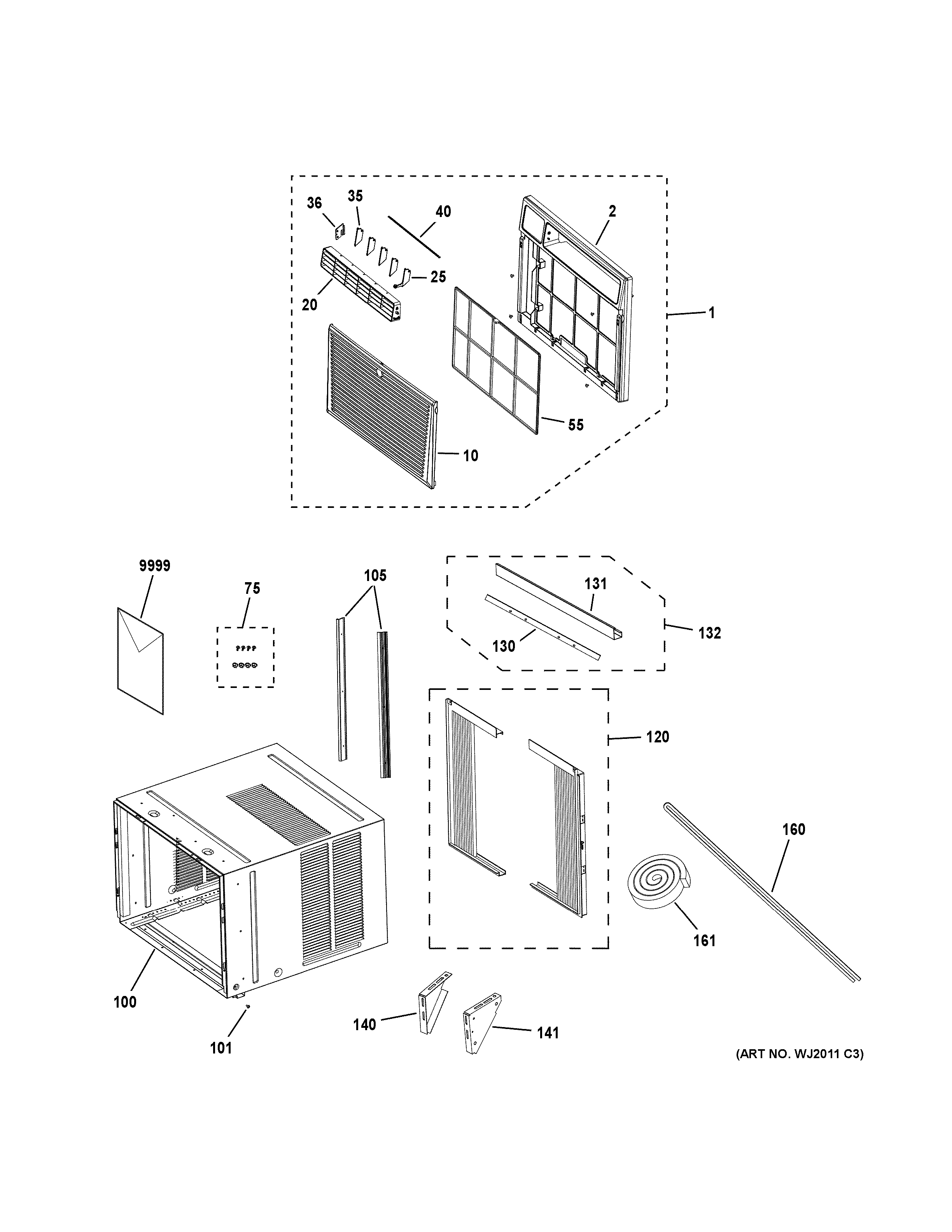

AEL25DPL1 GRILLE & CHASSIS PARTS

AEL25DPL1 GRILLE & CHASSIS PARTS

Written by

in

AEL25DPL1 GRILLE & CHASSIS PARTS

Products

PositionProduct
1PANEL ASM, FRONT
2PANEL ASM, FRONT
10GRILL FRONT, AIR INTAKE
20AIR GUIDE
25SWING LOUVER 1
35SWING LOUVER
36SUPPORT OF LOUVER
40LINK VERTICAL LOUVER
55WJ71X10710 GE Air Conditioner Filter
75WJ01X10415 GE Hardware Kit
100CABINET ASM
101SELF-TAPPING SCREW
105WJ68X10064 GE Cabinet Support
120WJ69X10017 GE Air Conditioner Curtain Assembly
130WJ43X10082 GE Gasket Form
131WJ82X10069 GE Top Guide
132CURTAIN ASM
140WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
141WJ67X10003 GE Right Side Case Mount Bracket
160WJ43X10080 GE Window Seal Sash
161WJ43X10079 GE Window Top Foam Gasket
9999MINI MANUAL
9999WJ01X10433 GE Hardware Installation
9999PM OWNERS MANUAL/INSTALL
