AEM06LSQ1 ROOM AIR CONDITIONER

AEM06LSQ1 ROOM AIR CONDITIONER

Written by

in

AEM06LSQ1 ROOM AIR CONDITIONER

Products

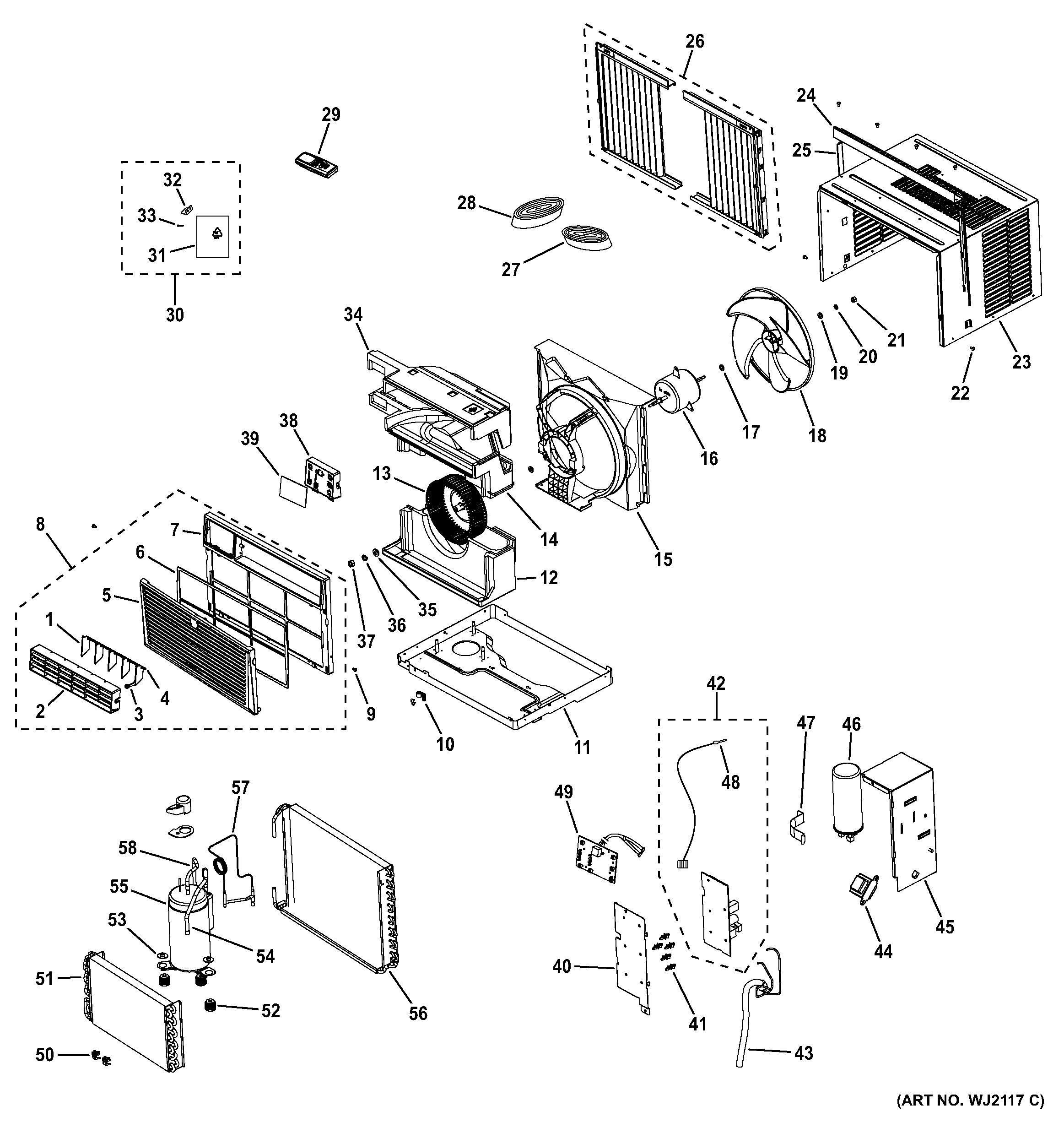

Position	Product
1	GEN WJ71X10574
2	WJ14X10082 GE Air Guide Frame
3	WJ71X10573 GE Air Conditioner Swing Louver
4	LINK, LOUVER VERTICAL
5	GEN WJ71X10737
6	WJ71X10657 GE Air Filter
7	FRONT CASE
8	WJ82X10084 GE Air Conditioner Panel Assembly Front
9	GEN WJ01X20253
10	WJ02X10035 GE Cable Clamp
11	BASE ASM
12	WJ76X10314 GE Lower Propeller Housing
13	FAN, CENTRIFUGAL
14	WJ76X10315 GE Propeller Housing
15	WJ01X10346 GE Motor Support
16	GEN WJ94X10337
17	WJ43X10072 GE Gasket (8 mm Diameter)
18	WJ73X10218 GE Axial Flow Fan
19	WJ01X10347 GE Washer (6mm)
20	WJ01X10313 GE Washer Air Conditioner
21	WJ01X10314 GE Air Conditioner Nut with Washer
22	WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
23	WJ90X20243 GE Cabinet Assembly
24	WJ82X20256 GE Top Rail
25	WJ66X10084 GE Connection Bar to Cabinet
26	WJ01X10353 GE Air Conditioner Room Side CU
27	WJ43X10073 GE Air Conditioner Gasket Seal
28	WJ43X10074 GE Seal Gasket
29	WJ26X20522 GE Air Conditioner Remote Controller
31	SCREW BAG
32	WJ01X10349 GE Room Air Conditioner Installation Hardware
33	WJ01X10351 GE Screw
34	GEN WJ79X10252
35	GEN WJ01X10345
36	WJ03X10074 GE Washer Spring (5 mm Diameter)
37	WJ01X10344 GE Nut (M5)
38	WJ07X20251 GE Electric Controller Box
39	WJ07X20239 GE Escutcheon
40	WJ26X10322 GE Electric Box
41	WJ01X10354 GE Support PCB
42	GEN WJ26X20252
43	WJ35X10172 GE Air Conditioner Power Cord
44	WJ27X20257 GE Transformer
45	WJ07X20250 GE Electric Box Assembly
46	CAPACITOR
47	WJ02X20245 GE Clamp Capacitor
48	WJ27X10122 GE Air Conditioner Thermostat
49	WJ26X20184 GE Air Conditioner Room Display
50	WJ03X10067 GE Sensor Holder
51	GEN WJ88X10253
52	GEN WJ01X10368
53	WJ01X10432 GE M6 Nut with Washer
54	WJ57X20255 GE Suction Tube
55	GEN WJ98X20247
56	WJ87X20248 GE Condenser Assembly
57	CAPILLARY ASSY
58	GEN WJ49X20249
