AEM08LPQ1 BASE PAN PARTS

AEM08LPQ1 BASE PAN PARTS

Written by

in

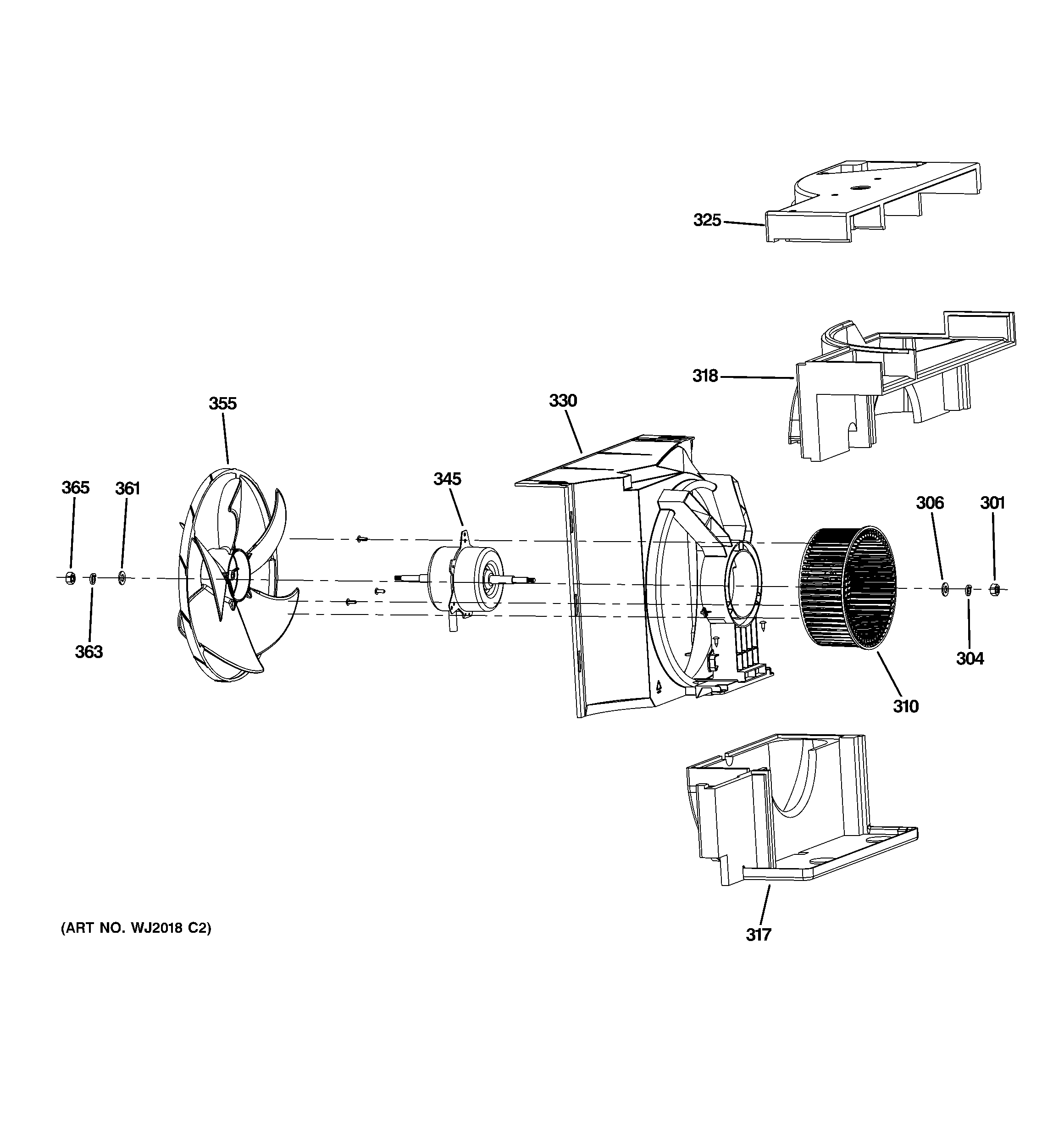

AEM08LPQ1 BASE PAN PARTS

Products

PositionProduct
301WJ01X10344 GE Nut (M5)
304WJ03X10074 GE Washer Spring (5 mm Diameter)
306GEN WJ01X10345
310FAN, CENTRIFUGAL
317WJ76X10314 GE Lower Propeller Housing
318WJ76X10315 GE Propeller Housing
325GEN WJ79X10252
330WJ01X10346 GE Motor Support
345GEN WJ94X10336
355FAN, AXIAL FLOW
361WJ01X10347 GE Washer (6mm)
363WJ01X10313 GE Washer Air Conditioner
365WJ01X10314 GE Air Conditioner Nut with Washer
