AEM08LSL1 ROOM AIR CONDITIONER

AEM08LSL1 ROOM AIR CONDITIONER

Written by

in

AEM08LSL1 ROOM AIR CONDITIONER

Products

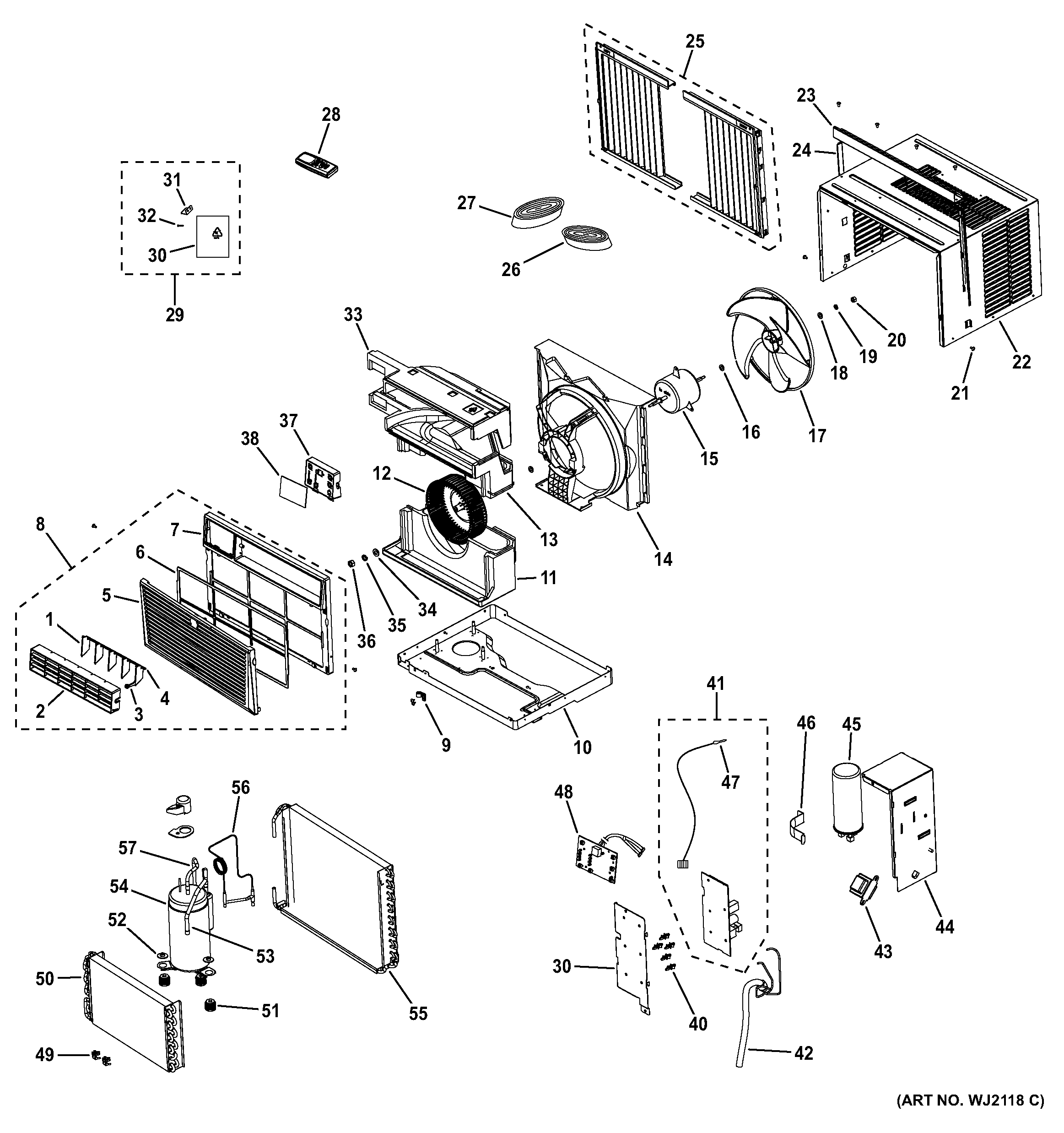

Position	Product
1	GEN WJ71X10574
2	WJ14X20288 GE Frame Air Guide
3	WJ71X10573 GE Air Conditioner Swing Louver
4	WJ71X20305 GE Vertical Louver Link
5	AIR INTAKE PANEL
6	WJ71X20302 GE Air Conditioner Filter Assembly
7	WJ82X20303 GE Front Case Assembly
8	WJ82X20304 GE Front Panel Assembly
9	WJ03X20292 GE Cable Clamp
10	WJ82X20290 GE Base Assembly
11	GEN WJ76X20306
12	FAN, CENTRIFUGAL
13	GEN WJ76X20307
14	WJ01X20308 GE Motor Support
15	WJ94X20301 GE Air Conditioner Fan Motor
16	WJ43X10072 GE Gasket (8 mm Diameter)
17	WJ73X10218 GE Axial Flow Fan
18	WJ01X10347 GE Washer (6mm)
19	WJ01X10313 GE Washer Air Conditioner
20	WJ01X10314 GE Air Conditioner Nut with Washer
21	WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
22	WJ90X20291 GE Cabinet
23	WJ66X20309 GE Top Rail
24	WJ66X10084 GE Connection Bar to Cabinet
25	WJ01X10353 GE Air Conditioner Room Side CU
26	WJ43X10073 GE Air Conditioner Gasket Seal
27	WJ43X10074 GE Seal Gasket
28	WJ26X20522 GE Air Conditioner Remote Controller
30	SCREW BAG
31	WJ01X10349 GE Room Air Conditioner Installation Hardware
32	WJ01X10351 GE Screw
33	WJ76X20310 GE Upper Propeller Housing
34	GEN WJ01X10345
35	WJ03X10074 GE Washer Spring (5 mm Diameter)
36	WJ01X10344 GE Nut (M5)
37	WJ07X20251 GE Electric Controller Box
38	WJ07X20239 GE Escutcheon
40	WJ01X10354 GE Support PCB
41	GEN WJ26X20252
42	WJ35X10169 GE Power Cord
43	WJ27X20257 GE Transformer
44	WJ26X20298 GE Electric Box Assembly
45	CAPACITOR
46	WJ02X20245 GE Clamp Capacitor
47	WJ27X10122 GE Air Conditioner Thermostat
48	WJ26X20184 GE Air Conditioner Room Display
49	WJ03X10067 GE Sensor Holder
50	WJ88X20300 GE Evaporator Assembly
51	WJ01X10435 GE Rubber Grommet
52	WJ01X10432 GE M6 Nut with Washer
53	WJ57X10045 GE Suction Tube
54	WJ98X20295 GE Air Conditioner Compressor and Fittings
55	GEN WJ87X20296
56	GEN WJ53X20294
57	GEN WJ49X20297
