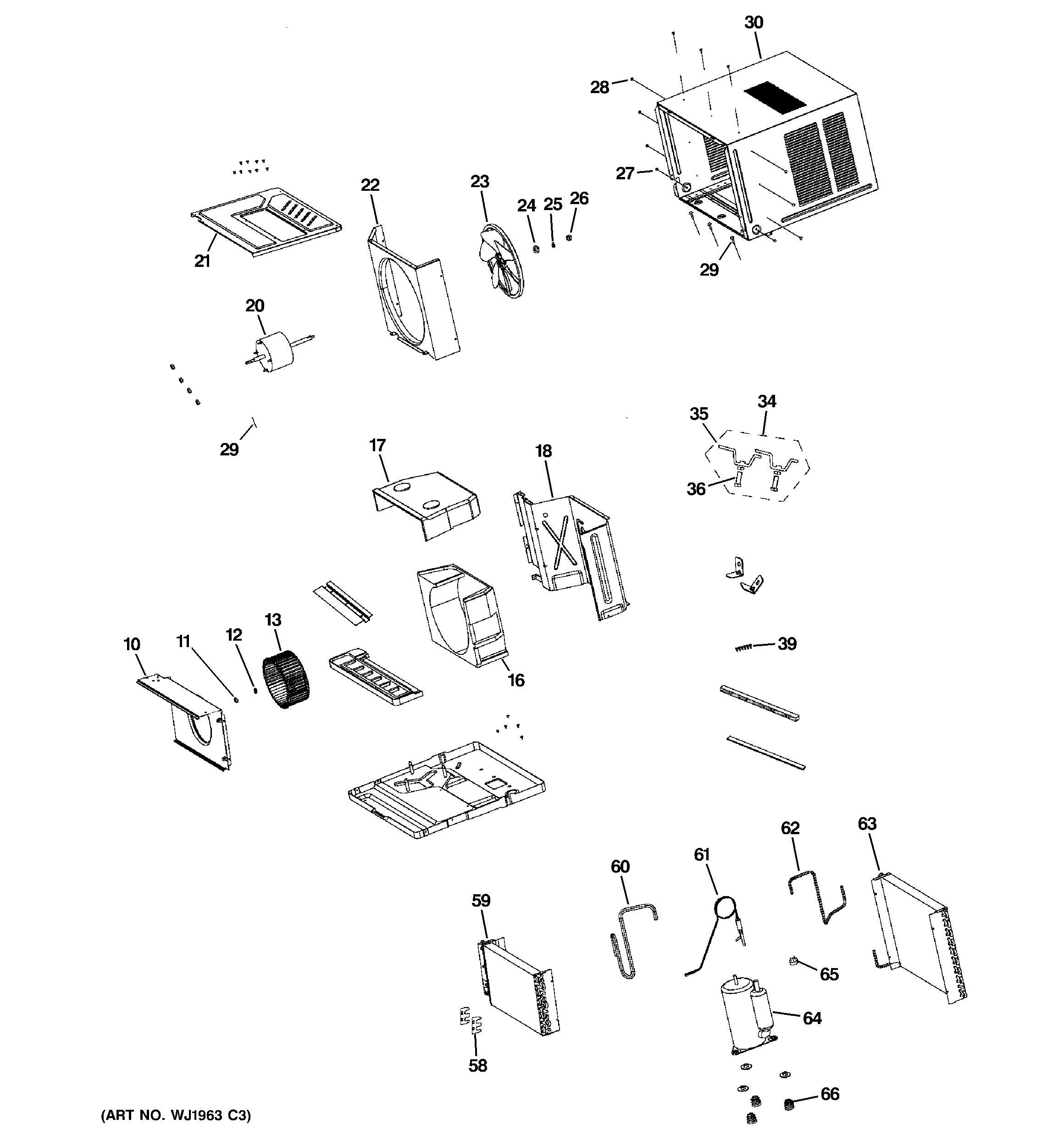

AEM12ANL1 CABINET & COMPONENTS

Products

Position	Product
10	WJ76X10274 GE Front Plate Insulation
11	WJ01X20351 GE Nut (M8)
12	WJ03X10075 GE Washer Spring (Diameter 8mm)
13	GEN WJ73X10167
16	WJ76X10255 GE Lower Snail Shell
17	GEN WJ76X10275
18	WJ45X10031 GE Middle Insulation Plate
20	GEN WJ95X10026
21	GEN WJ79X10207
22	GEN WJ79X10206
23	GEN WJ73X10188
24	WJ01X10312 GE Air Conditioner Washer
25	WJ01X10313 GE Washer Air Conditioner
26	WJ01X10314 GE Air Conditioner Nut with Washer
27	SELF-TAPPING SCREW
28	GEN WJ01X10413
29	SCREW
30	GEN WJ90X10124
34	WJ79X10208 GE Air Conditioner Mounting Rack Assembly
35	WJ79X10209 GE Mounting Rack
36	GEN WJ01X10360
39	WJ01X10351 GE Screw
58	WJ03X10067 GE Sensor Holder
59	GEN WJ87X10261
59	EVAPORATOR ASM
60	GEN WJ57X10029
60	TUBE, SUCTION
61	GEN WJ53X10210
61	GEN WJ53X10211
62	TUBE, DISCHARGE
62	WJ62X10017 GE Discharge Tube
63	GEN WJ88X10220
63	GEN WJ88X10219
64	COMPRESSOR ASM
64	GEN WJ98X10294
65	PROTECTOR, OVERLOAD
65	GEN WJ23X10152
66	WJ01X10419 GE Grommet Rubber
66	WJ01X10355 GE Rubber Grommet
