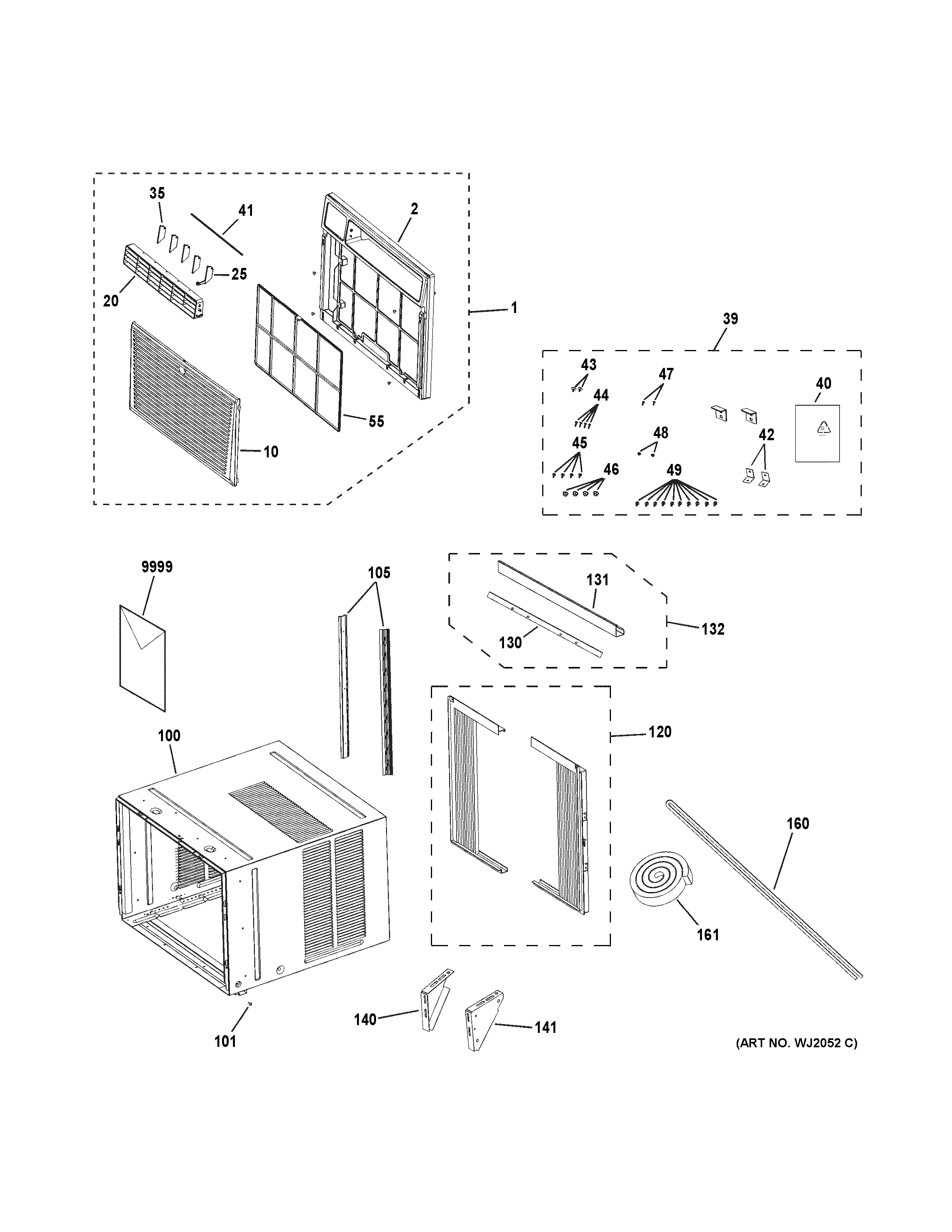

AEM14AQL1 GRILLE & CHASSIS PARTS

AEM14AQL1 GRILLE & CHASSIS PARTS

Written by

in

AEM14AQL1 GRILLE & CHASSIS PARTS

Products

PositionProduct
1PANEL ASM, FRONT
2GEN WJ71X10725
10GRILL FRONT, AIR INTAKE
20GEN WJ14X10086
25WJ71X10573 GE Air Conditioner Swing Louver
35GEN WJ71X10574
39WJ01X10376 GE Room Air Conditnr Installation
40WJ01X10350 GE Plastic Bag
41LINK VERTICAL LOUVER
42WJ66X10098 GE Window Locking Bracket
43BOLT M6X19
44WJ01X10351 GE Screw
45BOLT M5X13
46NUT M5X5
47SCREW
48NUT M6X6
49SCREW M4.8X8
55WJ71X10668 GE Air Conditioner Filter Assembly
100WJ90X10126 GE Cabinet Assembly
101SELF-TAPPING SCREW
105WJ68X10065 GE Cabinet Support
120WJ69X10018 GE Air Conditioner Curtain Assembly
130WJ43X10078 GE Top Rail Gasket
131WJ65X21244 GE Air Conditioner Top Guide
132WJ14X10087 GE Air Conditioner Top Guide Assembly
140WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
141WJ67X10003 GE Right Side Case Mount Bracket
160WJ43X10080 GE Window Seal Sash
161WJ43X10079 GE Window Top Foam Gasket
9999PM OWNERS MANUAL/INSTALL
9999MINI MANUAL
