AEM14AXL1 ROOM AIR CONDITIONER

Products

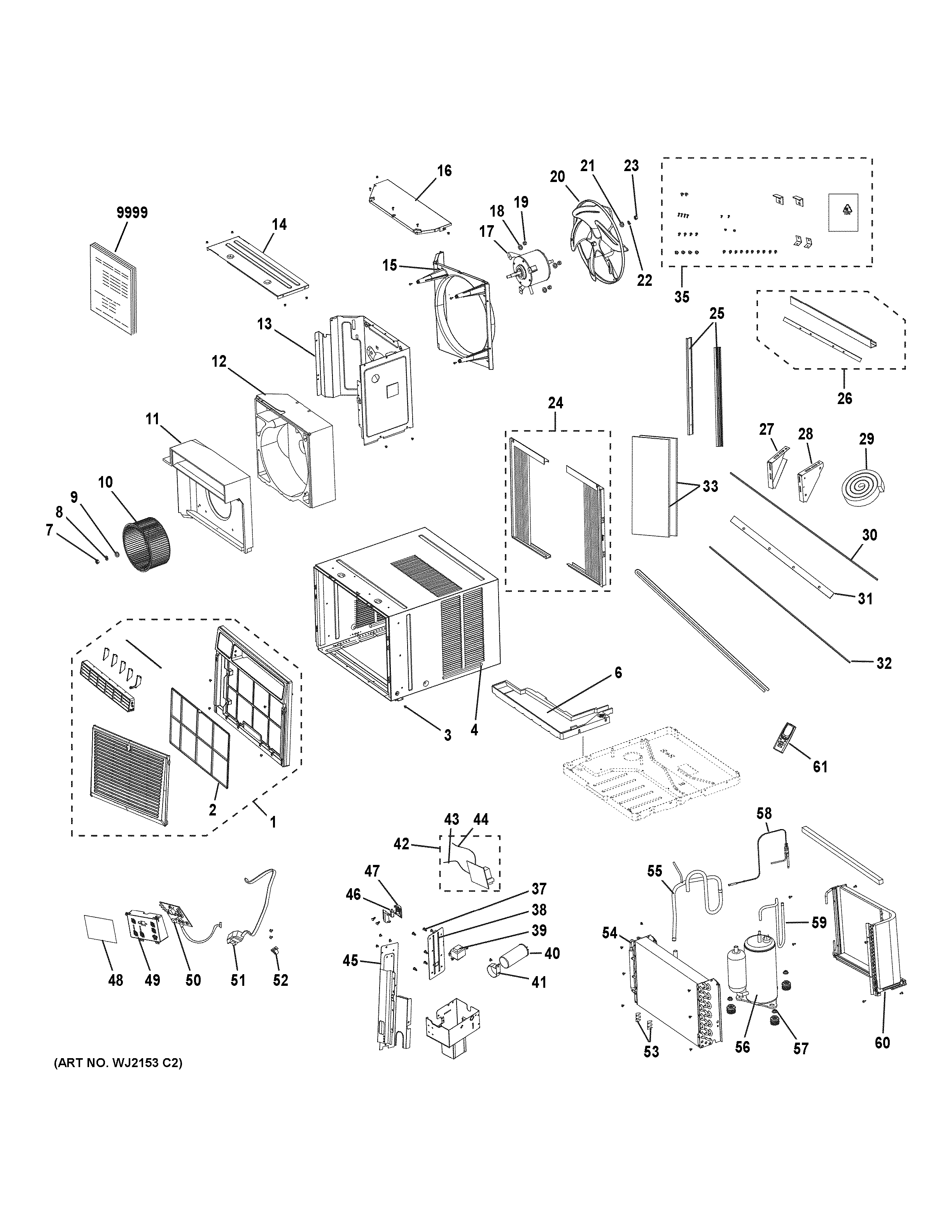

Position	Product
1	WJ82X30608 GE Front Panel Assembly
2	WJ71X10668 GE Air Conditioner Filter Assembly
3	WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
4	WJ90X30602 GE Room Air Conditioner Cabinet Sub Assembly
6	WJ05X10054 GE Air Conditioner Foam Water Tray
7	WJ01X10265 GE Washer Nut
8	WJ01X10266 GE Washer Assembly
9	WJ43X10075 GE Gasket (Diameter 10mm)
10	WJ73X21249 GE Centrifugal Fan
11	WJ76X21250 GE Air Duct
12	WJ76X21251 GE Indoor Fan Shroud
13	WJ66X10104 GE Motor Support Bracket
14	WJ05X20182 GE Refrigerator Top Cover Board Sub-Assembly
15	WJ76X21243 GE Outdoor Fan Shroud
16	WJ76X21241 GE Cover
17	WJ94X21246 GE Air Conditioner Fan Motor
18	WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)
19	WJ01X10329 GE Air Conditioner Nut
20	WJ73X21247 GE Air Conditioner Axial Flow Fan
21	WJ43X10076 GE Gasket Diameter 8mm
22	WJ43X10077 GE Gasket (Diameter 8mm)
23	WJ01X10374 GE Levo Nut (M8)
24	WJ65X30609 GE Fixing Frame Sub Assembly
25	WJ69X30610 GE Curtain Quickset
26	WJ65X30604 GE Guide Top
27	WJ65X30606 GE Support Triangle Left
28	WJ65X30605 GE Support Triangle Right
29	WJ43X10079 GE Window Top Foam Gasket
30	WJ43X10080 GE Window Seal Sash
31	WJ43X10078 GE Top Rail Gasket
32	WJ43X21200 GE Air Conditioner Accordian Panel Seal
33	WJ43X30607 GE Foam Insulation
35	WJ01X10376 GE Room Air Conditnr Installation
37	WJ01X10354 GE Support PCB
38	WJ71X20269 GE Electric Box Side Plate
39	WJ27X10170 GE Transformer
40	WJ20X21880 GE Capacitor
41	WJ02X10034 GE Capacitor Clamp
42	WJ26X21885 GE Air Conditioner Main Board
43	SENSOR TUBE
44	WJ26X25108 GE Temperature Sensor
45	WJ71X20268 GE Front Clapboard
46	WJ24X20540 GE Relay
47	TERMINAL BOARD
48	WJ01X20176 GE Air Conditioner Membrane
49	WJ26X20179 GE Air Conditioner Remote Control Cover
50	WJ26X21846 GE Air Conditioner Display Board
51	WJ35X10170 GE Air Conditioner Power Cord
52	CABLE CLAMP
53	WJ02X10036 GE Sensor Support
54	WJ87X21884 GE Air Conditioner Evaporator Assembly
55	WJ53X21886 GE Suction Tube Subassembly
56	WJ98X21882 GE Air Conditioner Compressor and Fittings
57	WJ01X10335 GE Washer Nut M8
58	WJ53X21881 GE Sub Assembly Capillary
59	WJ53X21883 GE Discharge Tube
60	WJ88X21240 GE Air Conditioner Condenser Assembly
61	WJ26X20522 GE Air Conditioner Remote Controller
9999	PM OWNERS MANUAL
9999	PM USE & CARE
