AEM18DSQ1 ROOM AIR CONDITIONER

AEM18DSQ1 ROOM AIR CONDITIONER

Written by

in

AEM18DSQ1 ROOM AIR CONDITIONER

Products

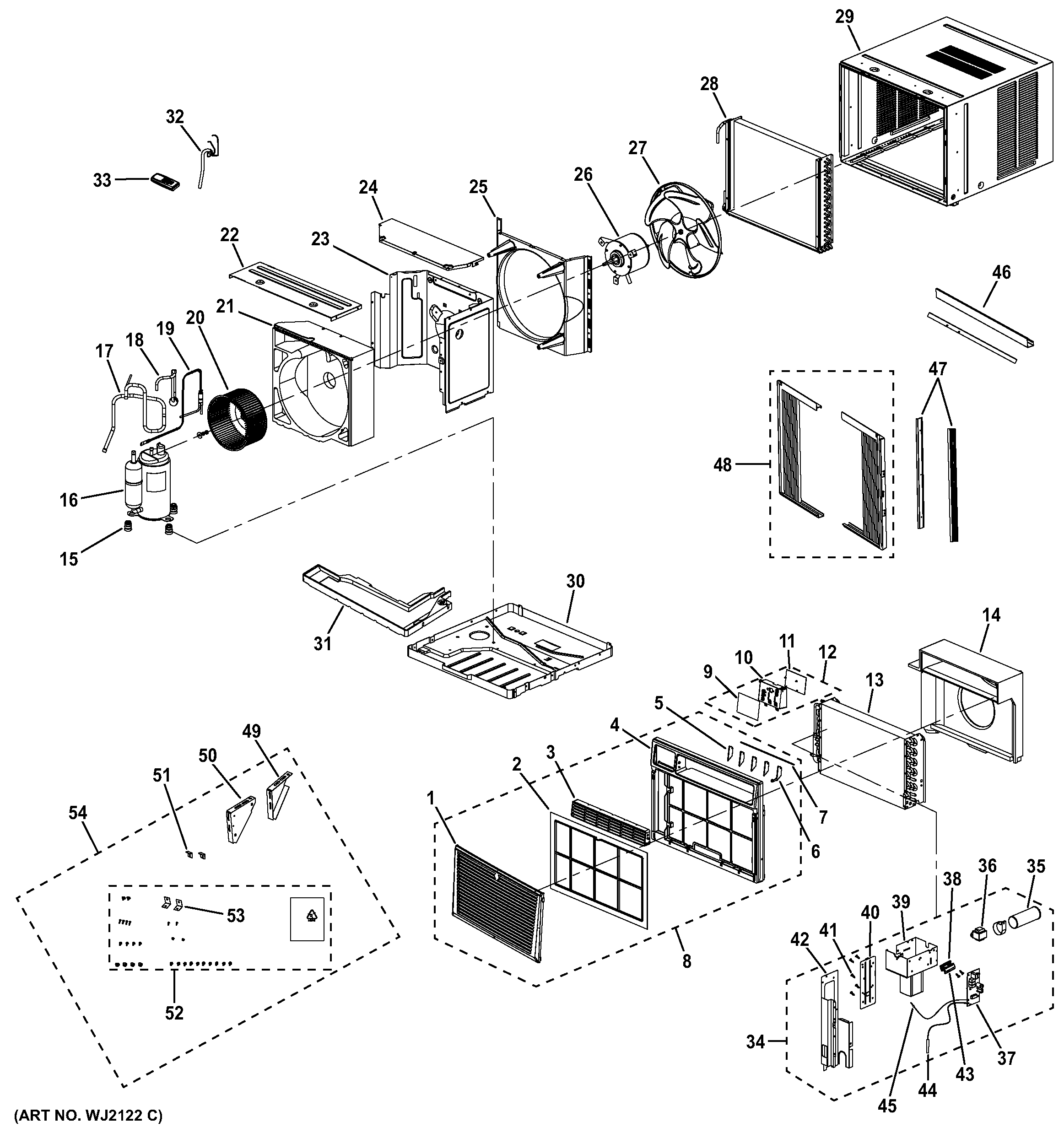

Position	Product
1	GRILL FRONT, AIR INTAKE
2	WJ71X10668 GE Air Conditioner Filter Assembly
3	GEN WJ14X10086
4	GEN WJ71X10725
5	GEN WJ71X10574
6	WJ71X10573 GE Air Conditioner Swing Louver
7	LINK VERTICAL LOUVER
8	WJ82X10081 GE Front Panel Assembly
9	WJ01X20176 GE Air Conditioner Membrane
10	WJ26X20179 GE Air Conditioner Remote Control Cover
11	WJ26X20184 GE Air Conditioner Room Display
12	GEN WJ05X20195
13	GEN WJ88X20190
14	WJ76X10307 GE Air Outlet Foam
15	WJ01X10428 GE Rubber Grommet
16	GEN WJ98X20187
17	GEN WJ49X20193
18	GEN WJ49X20188
19	GEN WJ53X20185
20	WJ73X10204 GE Centrifugal Fan
21	WJ76X10308 GE Air Conditioner Propeller Housing
22	WJ71X20196 GE Top Cover
23	WJ66X10104 GE Motor Support Bracket
24	WJ79X10217 GE Top Rear Cover
25	WJ79X10216 GE Condenser Cover
26	WJ94X20191 GE Air Conditioner Fan Motor
27	WJ73X10190 GE Air Conditioner Axial Flow Fan
28	WJ87X20166 GE Air Conditioner Condenser Assembly
29	WJ90X20266 GE Cabinet Assembly
30	GEN WJ05X20186
31	WJ05X20192 GE Water Tray Foam
32	WJ35X10165 GE Air Conditioner Power Cord
33	WJ26X20522 GE Air Conditioner Remote Controller
34	GEN WJ79X20189
35	CAPACITOR CBB65
36	WJ27X10154 GE Air Conditioner Transformer
37	GEN WJ26X20194
38	WJ79X10255 GE OLP Cover
39	WJ26X20267 GE Electric Box Subassembly
40	WJ71X20269 GE Electric Box Side Plate
41	WJ01X10354 GE Support PCB
42	WJ71X20268 GE Front Clapboard
43	WJ23X10162 GE Overload Protector
44	WJ27X10122 GE Air Conditioner Thermostat
45	WJ27X10135 GE Sensor Tube
46	WJ82X20183 GE Top Guide
47	WJ68X10065 GE Cabinet Support
48	WJ69X10018 GE Air Conditioner Curtain Assembly
49	GEN WJ82X20181
50	WJ67X20197 GE Air Conditioner Left Hand Mounting Bracket Case
51	WJ67X10004 GE Support Bracket
52	WJ01X10376 GE Room Air Conditnr Installation
53	WJ66X10076 GE Window Lock Bracket
54	WJ01X20177 GE Mounting Accessories
