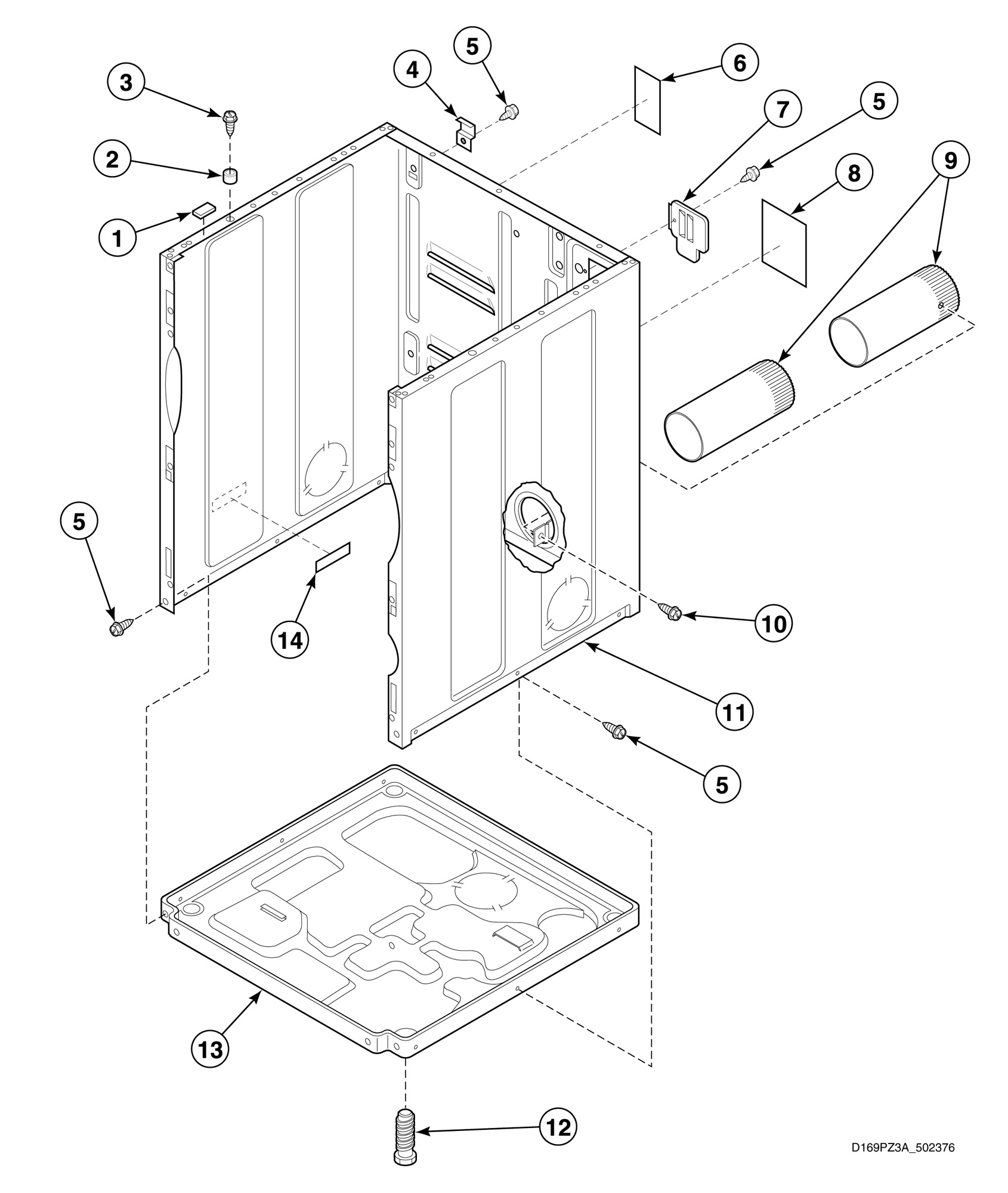

AEM197 Cabinet, Exhaust Duct and Base

Products

PositionProduct
NADirectional Exhaust Kit (Comment: To vent dryer out the sides or bottom)
1Bumper Pad
2Panel Locator
3Screw
4Top Hinge
5Screw
6NOT ON YOUR MODEL
7Access Panel Plate
8Electric Clearance Label
9Exhaust Duct
10Screw
11Panel Kit (Comment: Almond)
11Panel Kit (Comment: White)
12Leveling Leg
13Dryer Base
14Fuse Notice Label
