AEM197 Loading Door – Aparts

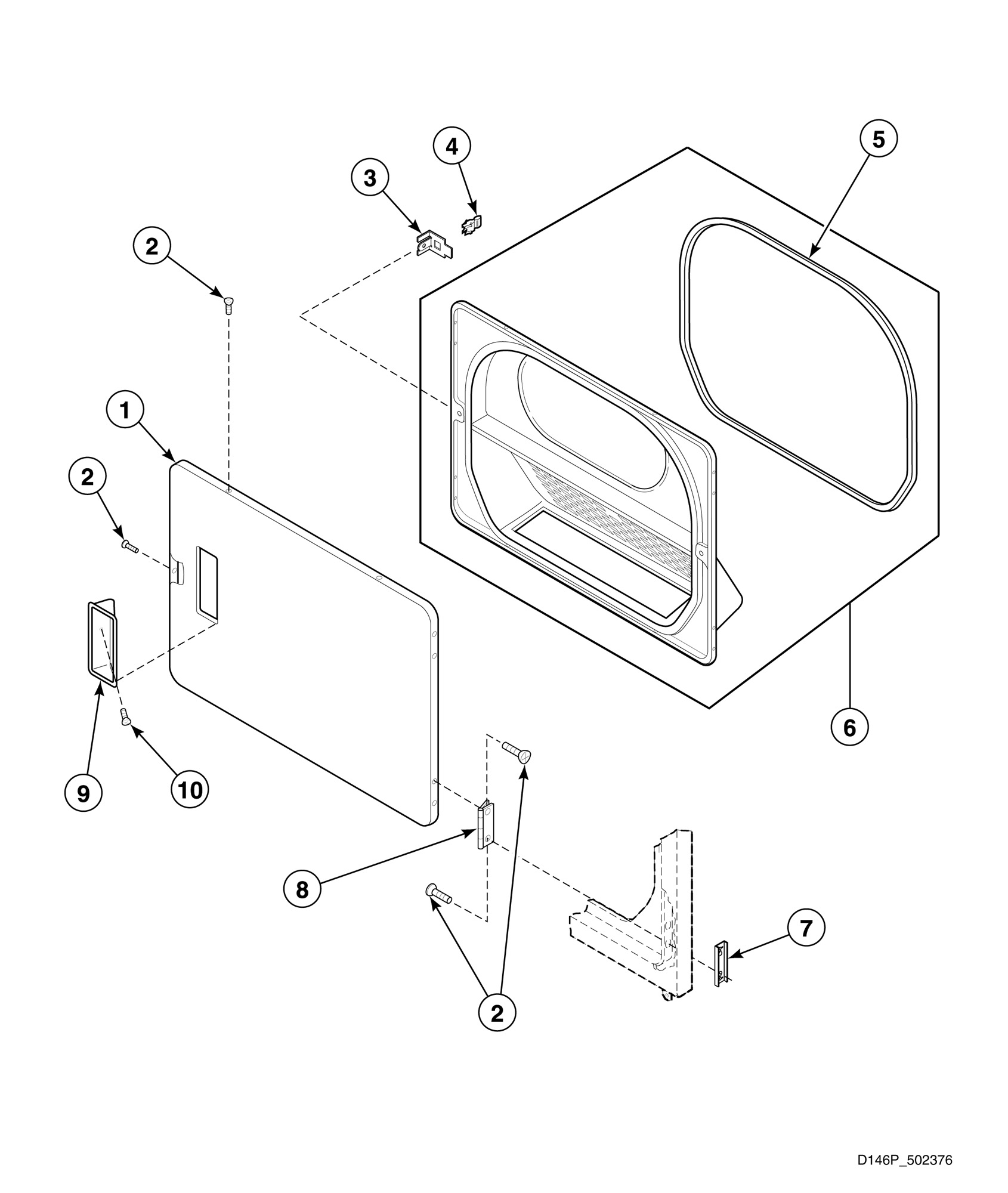

AEM197 Loading Door

Products

Position	Product
1	Dryer Door (Comment: Almond)
1	Dryer Door (Comment: White)
2	Screw
3	Door Strike Mount
4	Door Strike
5	Door Seal
6	Liner and Seal Assembly
7	Door Hinge Mounting Clip
8	Door Hinge
9	Door Pull
10	Wire Harness Assembly
