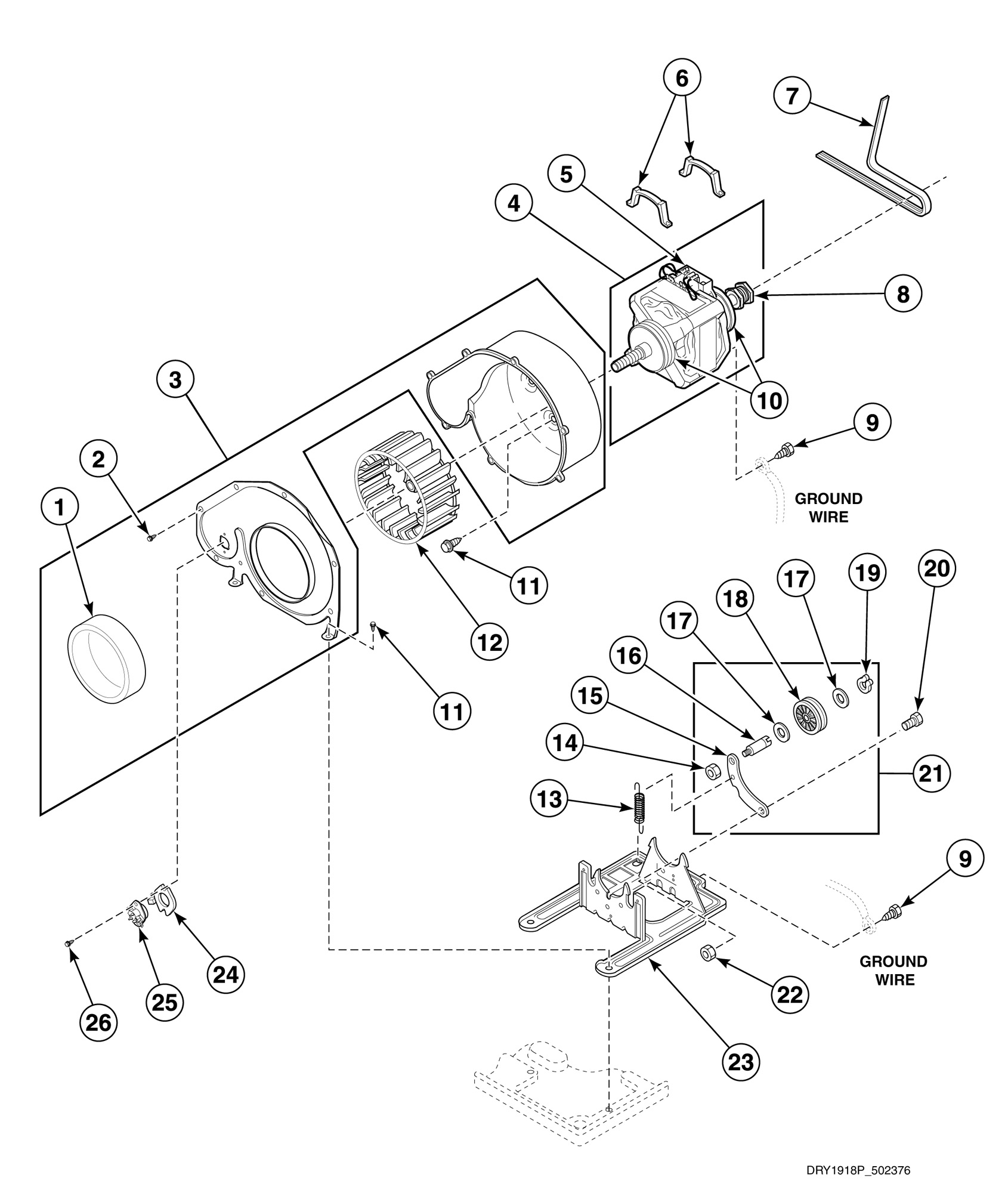

AEM197 Motor, Exhaust Fan and Belt

AEM197 Motor, Exhaust Fan and Belt

Written by

in

AEM197 Motor, Exhaust Fan and Belt

Products

PositionProduct
1Blower Housing Seal
2Screw
3Blower Housing and Cover Kit
4Motor and Pulley Assembly
5Motor Switch Kit
6Motor Mount Clamp
7Cylinder Belt
8Motor Pulley
9Screw
10Motor Hub Ring Kit
11Screw
12Blower Fan Assembly
13Idler Spring
14Nut
15Idler Lever
16Shaft
17Washer
18Idler Wheel and Bearing Assembly
19Retaining Ring
20Screw
21Idler Lever and Wheel Assembly
22Nut
23Motor Mount
24Thermostat Heater (Comment: Use with 61372 Thermostat)
25Thermostat
26Screw
26Screw
