AEM197 Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

AEM197 Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

Written by

in

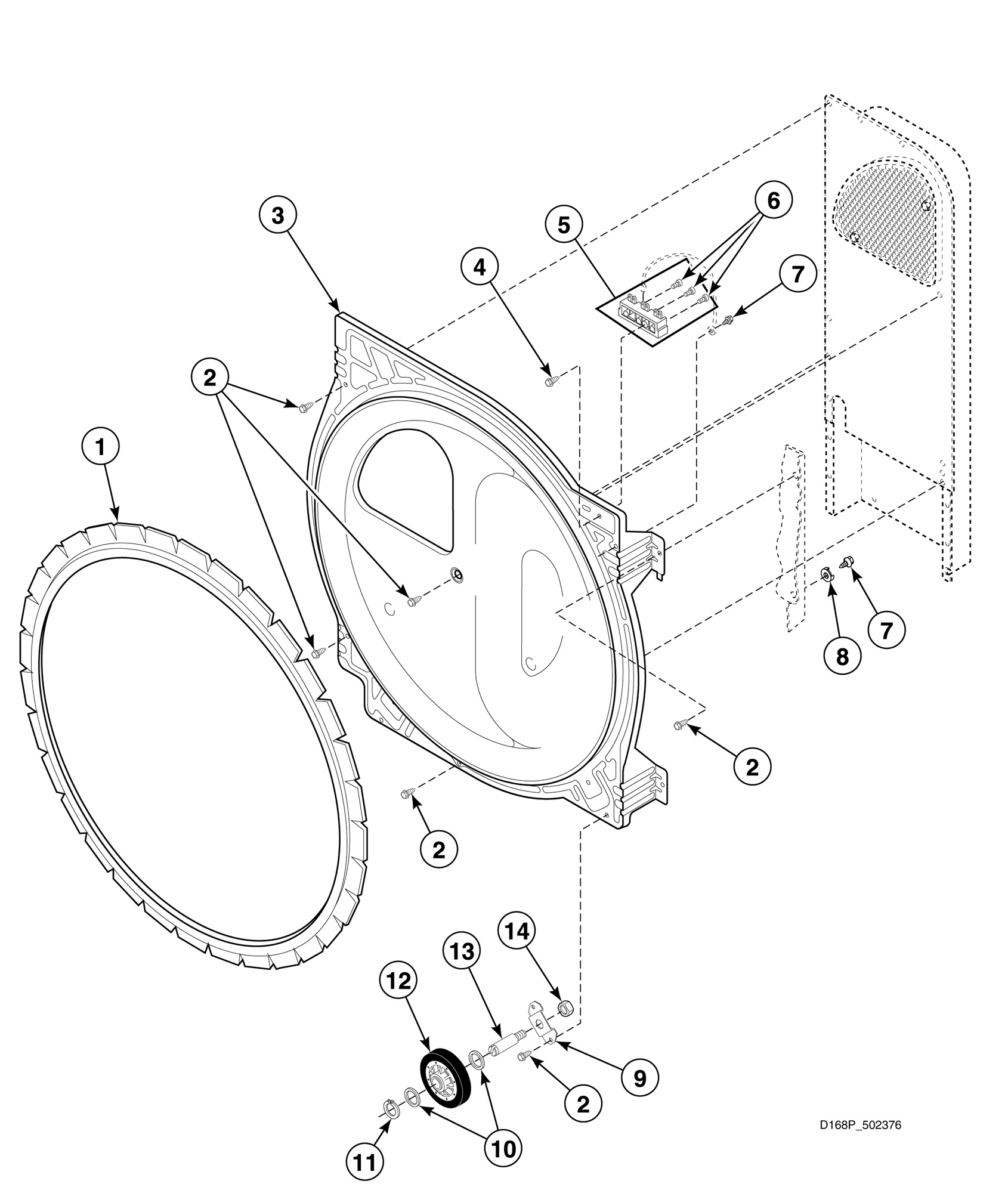

AEM197 Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

Products

PositionProduct
NAAdhesive (Comment: For cylinder seal)
1Cylinder Seal Assembly
2Screw
3Rear Bulkhead Assembly (Comment: Includes item 1)
4Screw
5Terminal Block Assembly (Comment: Includes 3 of item 2)
6Screw
7Screw
8Washer
9Cylinder Roller Bracket
10Washer
11Retaining Ring
12Cylinder Roller
13Shaft
14Nut
