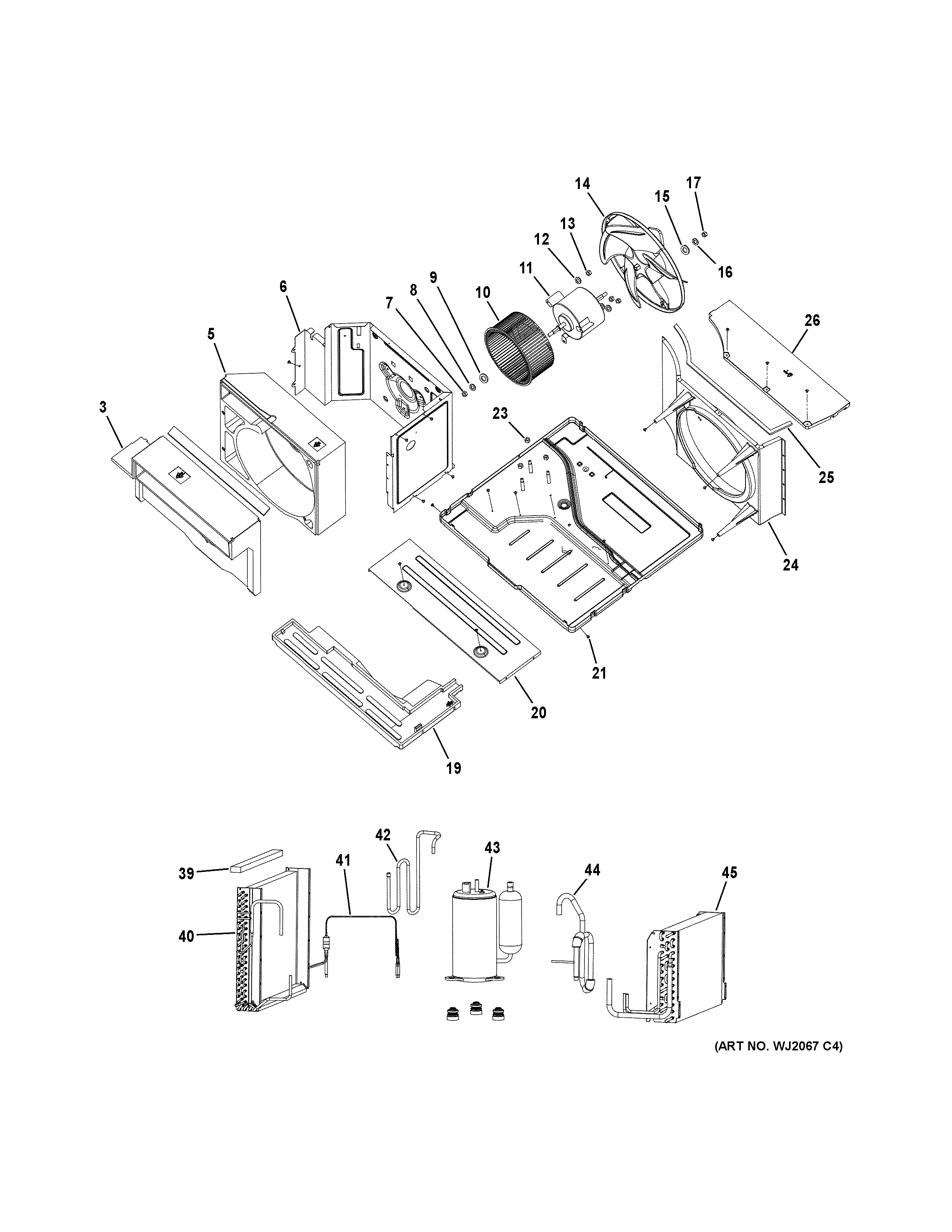

AEM24DXL1 BASE PAN & UNIT PARTSadmin2025-04-26T08:49:29+00:00AEM24DXL1 BASE PAN & UNIT PARTS ProductsPositionProduct3WJ76X10338 GE Foam Air Outlet5WJ76X10310 GE Propeller Housing6WJ01X20212 GE Motor Support Assembly7WJ01X10265 GE Washer Nut8WJ01X10266 GE Washer Assembly9WJ43X10075 GE Gasket (Diameter 10mm)10WJ73X21249 GE Centrifugal Fan11WJ95X10036 GE Air Conditioner Fan Motor12WJ01X10373 GE Air Conditioner Spring Washer (Diameter 6mm)13WJ01X10329 GE Air Conditioner Nut14WJ73X21247 GE Air Conditioner Axial Flow Fan15WJ43X10076 GE Gasket Diameter 8mm16WJ43X10077 GE Gasket (Diameter 8mm)17WJ01X10374 GE Levo Nut (M8)19WJ05X10064 GE Water Tray20WJ79X10244 GE Top Plate21WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC23WJ01X10335 GE Washer Nut M824WJ88X21256 GE Condenser Cover25WJ66X10094 GE Sponge Rear Clapboard26WJ79X10246 GE Top Plate39WJ43X20215 GE Condenser Support40WJ88X21929 GE Condenser Assembly41WJ53X21927 GE Air Conditioner Capillary Assembly42WJ53X21930 GE Discharge Tube43WJ98X21928 GE Compressor and Fittings Assembly44WJ53X21933 GE Inhalation Tube Subassembly45WJ87X21931 GE Air Conditioner Evaporator Assembly
