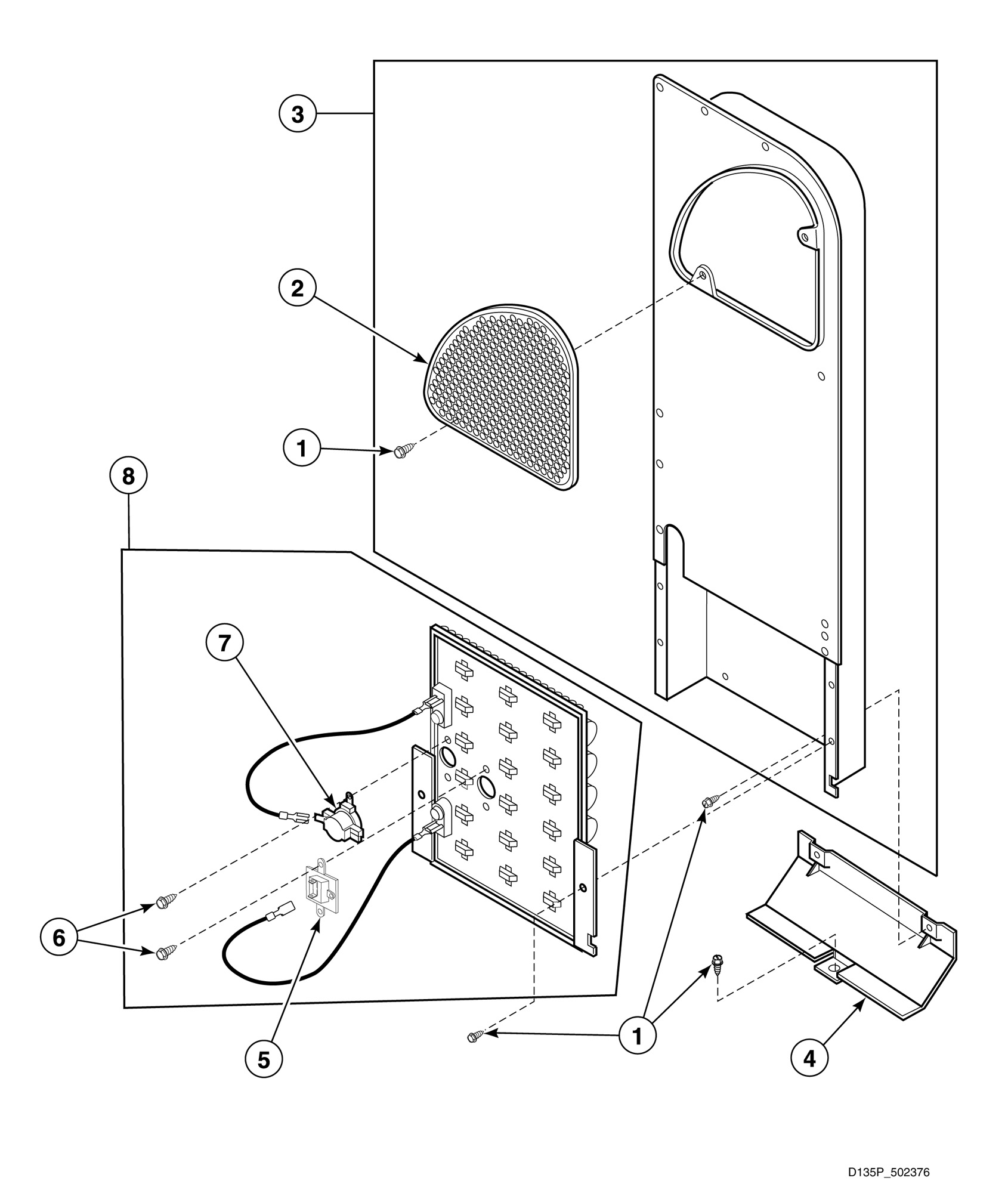

AEM377 Heater Duct Assembly – Electric Models

Written by

Products

Position	Product
1	Screw
2	Outlet Cover
3	Heater Duct and Screw Assembly
4	Heat Duct Shield
5	Thermal Fuse Assembly
6	Screw
7	Limit Thermostat
8	Heater Kit Assembly (Comment: 240 Volt, 5000 Watt, Red, Includes items 1, 7 and 8)
8	Heater Kit Assembly (Comment: 208 Volt, 4750 Watt, White, Includes items 1, 7 and 8)
