AEM377 Lower Access Panel, Front Panel and Seal

AEM377 Lower Access Panel, Front Panel and Seal

Written by

in

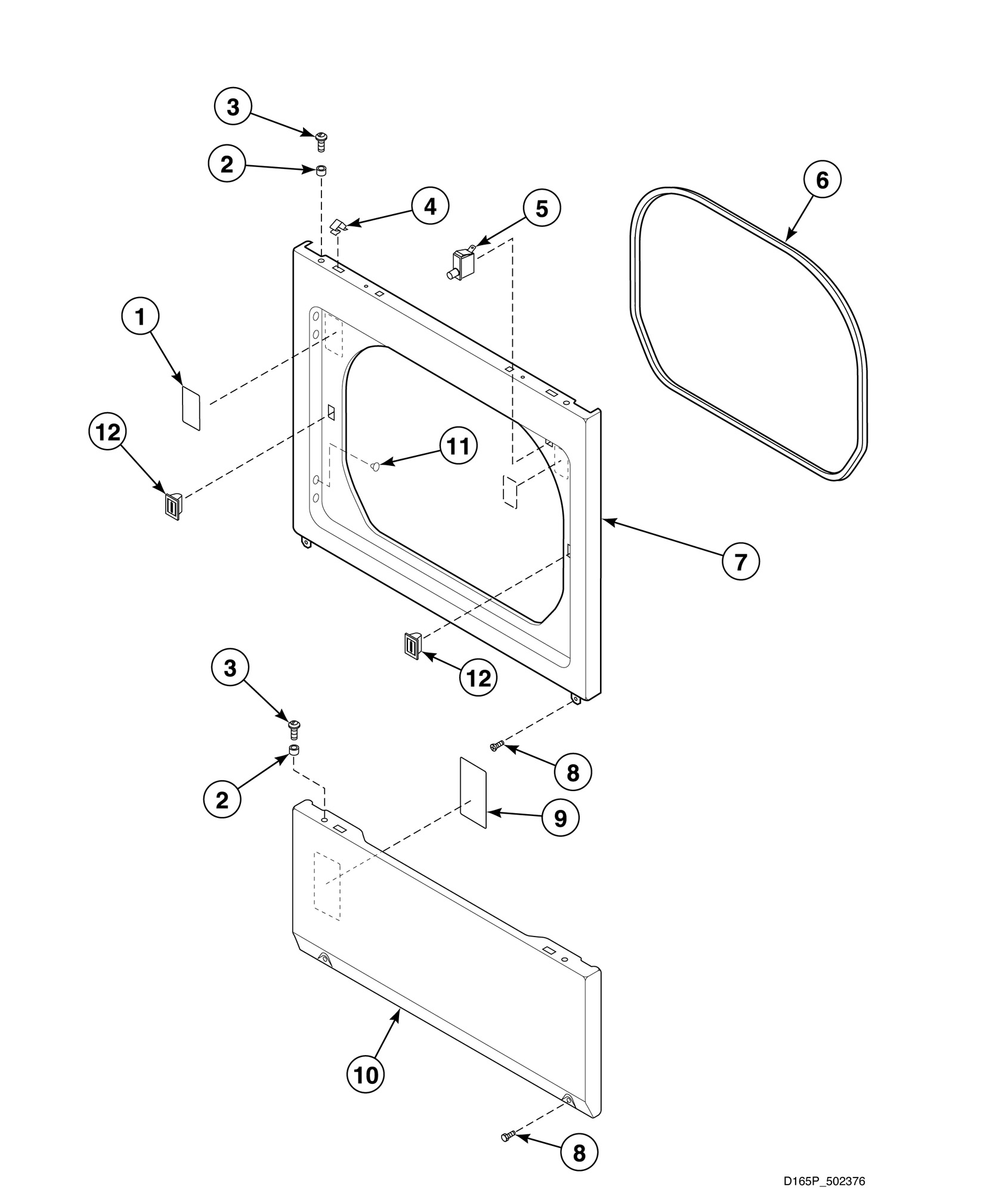

AEM377 Lower Access Panel, Front Panel and Seal

Products

PositionProduct
1Warning/Caution Label
2Panel Locator
3Screw
4Speed Clip
5Switch
6Front Panel Seal
7Wire Harness Assembly
7Front Panel (Comment: White)
8Screw
9NOT ON YOUR MODEL
10Access Panel (Comment: White)
10Access Panel (Comment: Almond)
11Screw
12Door Catch Assembly
