AEM397 Front Bulkhead, Air Duct, Felt Seal and Cylinder

AEM397 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Written by

in

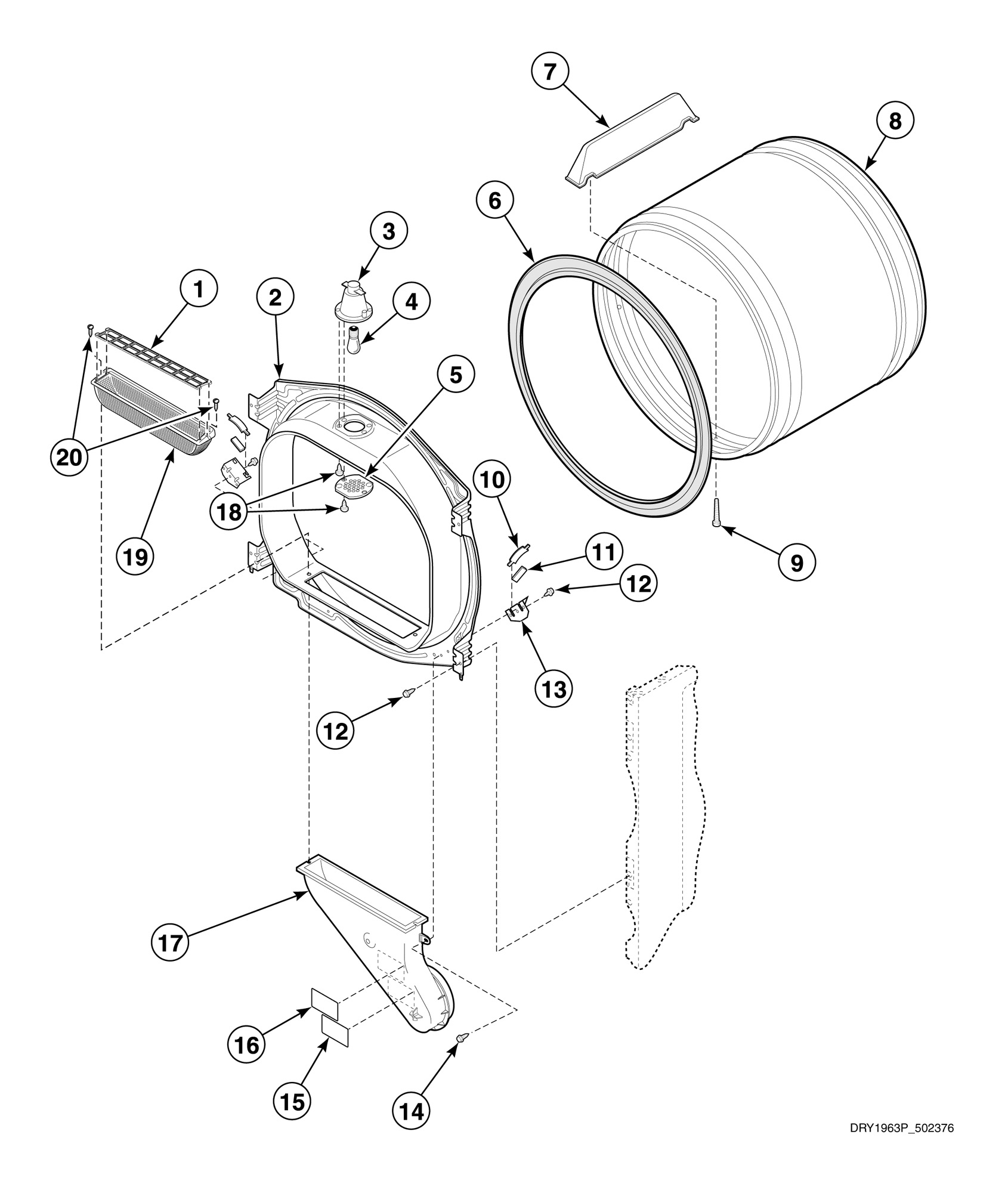

AEM397 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Products

PositionProduct
NAAdhesive (Comment: For cylinder seal)
1Lint Filter Cover
2Front Bulkhead Assembly (Comment: Includes items 6 and 10-13, White, Without light)
2Front Bulkhead Assembly (Comment: Includes items 6 and 10-13, Unpainted)
2Front Bulkhead Assembly (Comment: Includes items 6 and 10-13, White, With light)
6Cylinder Seal Assembly
7Cylinder Baffle
8Cylinder Assembly
9Screw
10Cylinder Glide (Comment: 1 required per side)
11Felt Pad
12Screw
13Cylinder Glide Bracket
14Screw
16Warning Label
17Wire Harness Assembly
18NOT ON YOUR MODEL
19Lint Filter
20Screw
