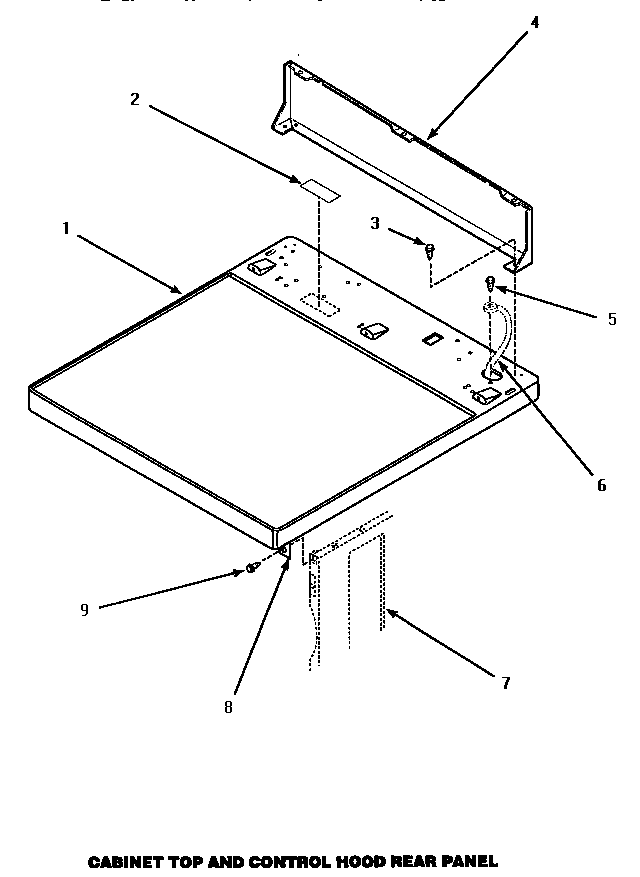

AEM407W 02 – CABINET TOP & CONTROL HOOD REAR PANEL

Written by

Products

Position	Product
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
1	MAY 500085HP
1	MAY 500085LP
1	MAY 500085WP
2	MAY 24903
3	MAY 501086
4	MAY 500343
5	MAY 20530
7	SEE NOTE GROUND WIRE, GREEN
8	MAY 500084
9	MAY 33562
