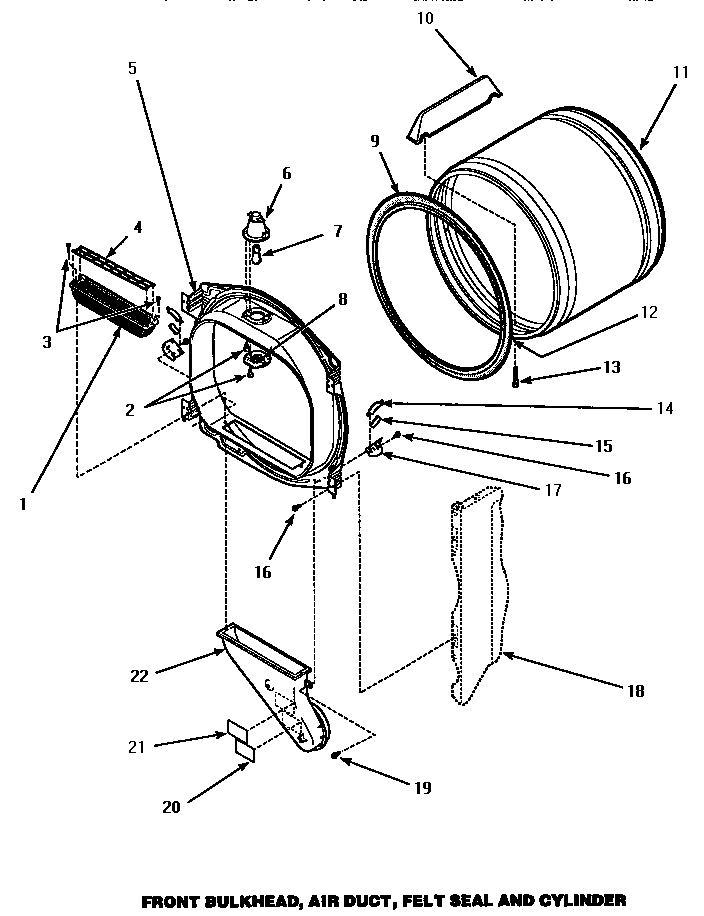

AEM407W 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

AEM407W 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

Written by

in

AEM407W 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

Products

PositionProduct
1MAY 502140P
1MAY 502093
2MAY 500248
3MAY 500226
4MAY 502092
5MAY 500117W
6MAY 500153
7MAY Y60954
8MAY 500094
9WP37001132 Whirlpool Felt Seal
10MAY 500022
11MAY 500013WP
12MAY 22506P
13MAY Y62588
14MAY Y501676
15MAY 500121
16MAY 501668
1712002090 Whirlpool Glide Bracket Kit
18SEE NOTE GROUND WIRE, GREEN
19MAY Y31645
20MAY 56259
21MAY 500049
22MAY 500241
