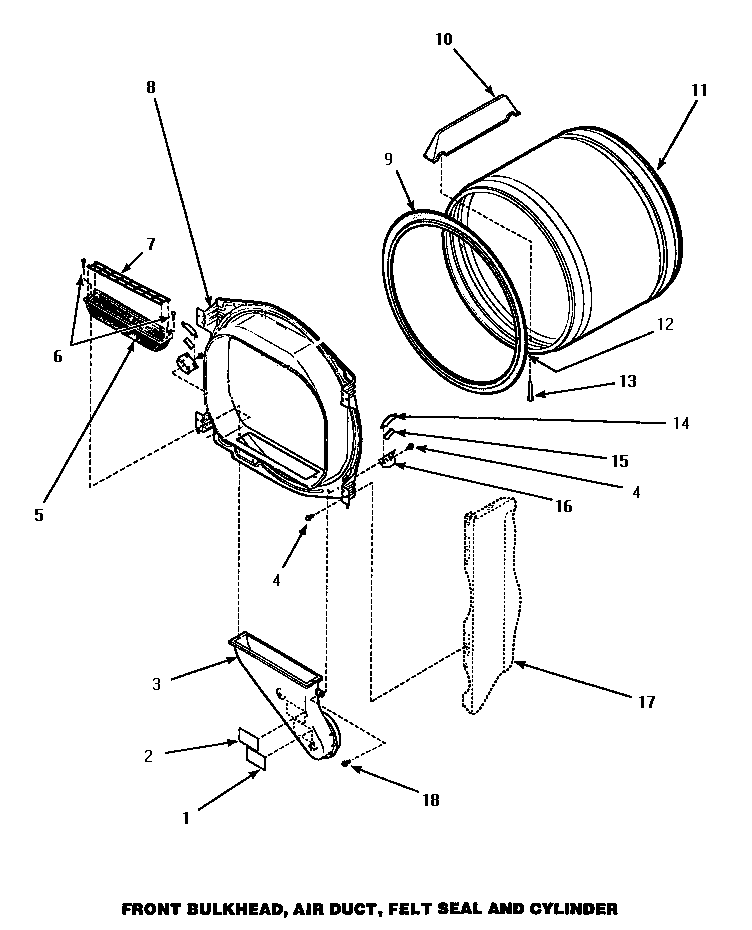

AEM497W2 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

AEM497W2 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

Written by

in

AEM497W2 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

Products

PositionProduct
1MAY 56259
2MAY 500049
3MAY 502231
4MAY 501668
5MAY 502140P
6MAY 500226
7MAY 502092
8WP37001132 Whirlpool Felt Seal
9MAY 500117W
10MAY 500022
11MAY 500013WP
12MAY 22506P
13MAY Y62588
14MAY Y501676
15MAY 500121
1612002090 Whirlpool Glide Bracket Kit
17SEE NOTE GROUND WIRE, GREEN
18MAY Y31645
