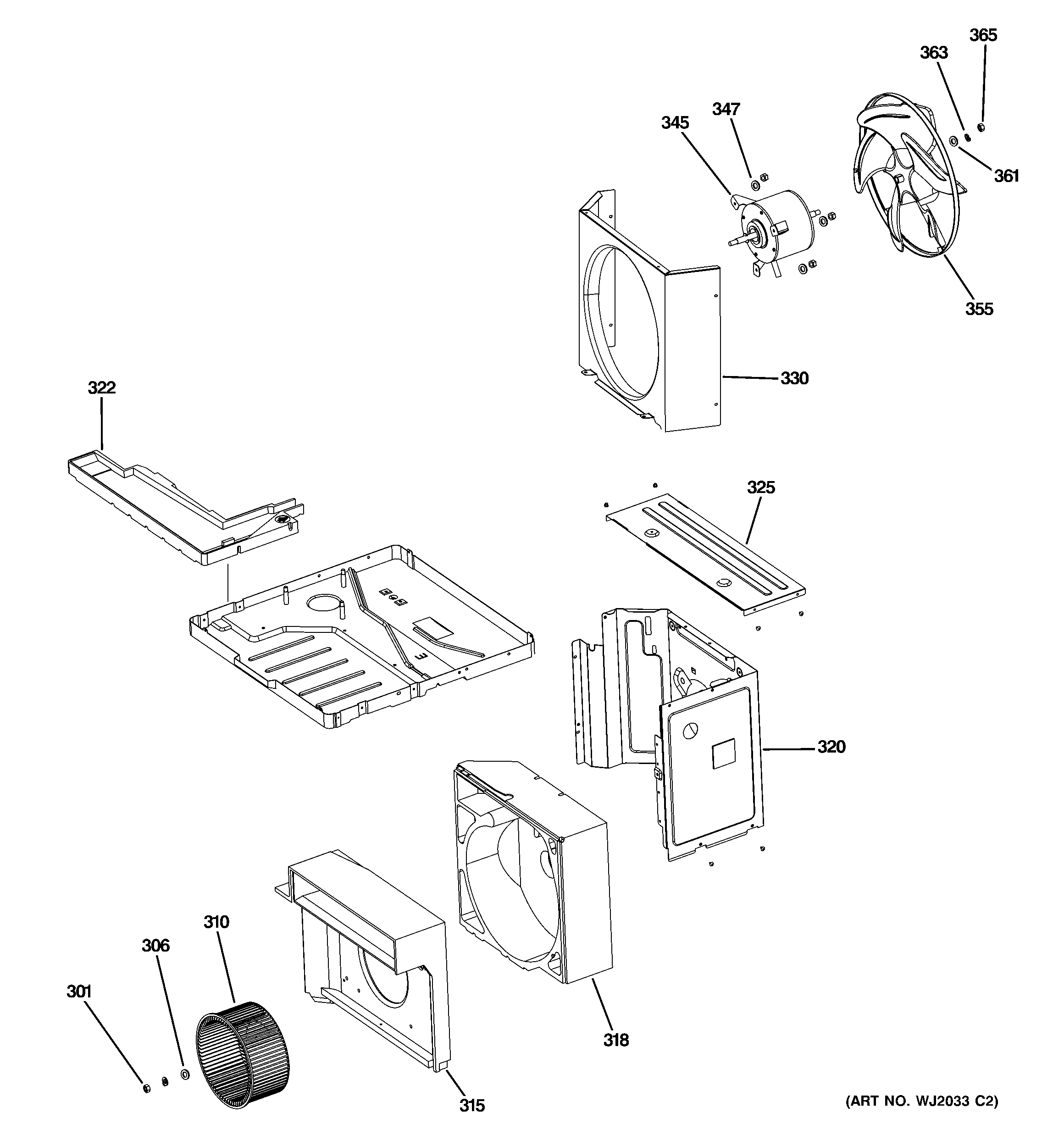

AEN12APL1 BASE PAN PARTS

AEN12APL1 BASE PAN PARTS

Written by

in

AEN12APL1 BASE PAN PARTS

Products

PositionProduct
301WJ01X20351 GE Nut (M8)
306WJ03X10075 GE Washer Spring (Diameter 8mm)
310GEN WJ73X10167
315WJ76X10274 GE Front Plate Insulation
318WJ76X10255 GE Lower Snail Shell
320WJ45X10031 GE Middle Insulation Plate
322WJ71X20360 GE Water Tray
325GEN WJ76X10275
330GEN WJ79X10206
345GEN WJ94X10343
355GEN WJ73X10188
361WJ01X10313 GE Washer Air Conditioner
363WJ01X10312 GE Air Conditioner Washer
365WJ01X10412 GE Nut (M4)
365WJ01X10314 GE Air Conditioner Nut with Washer
