AEN12ASL1 ROOM AIR CONDITIONER

AEN12ASL1 ROOM AIR CONDITIONER

Written by

in

AEN12ASL1 ROOM AIR CONDITIONER

Products

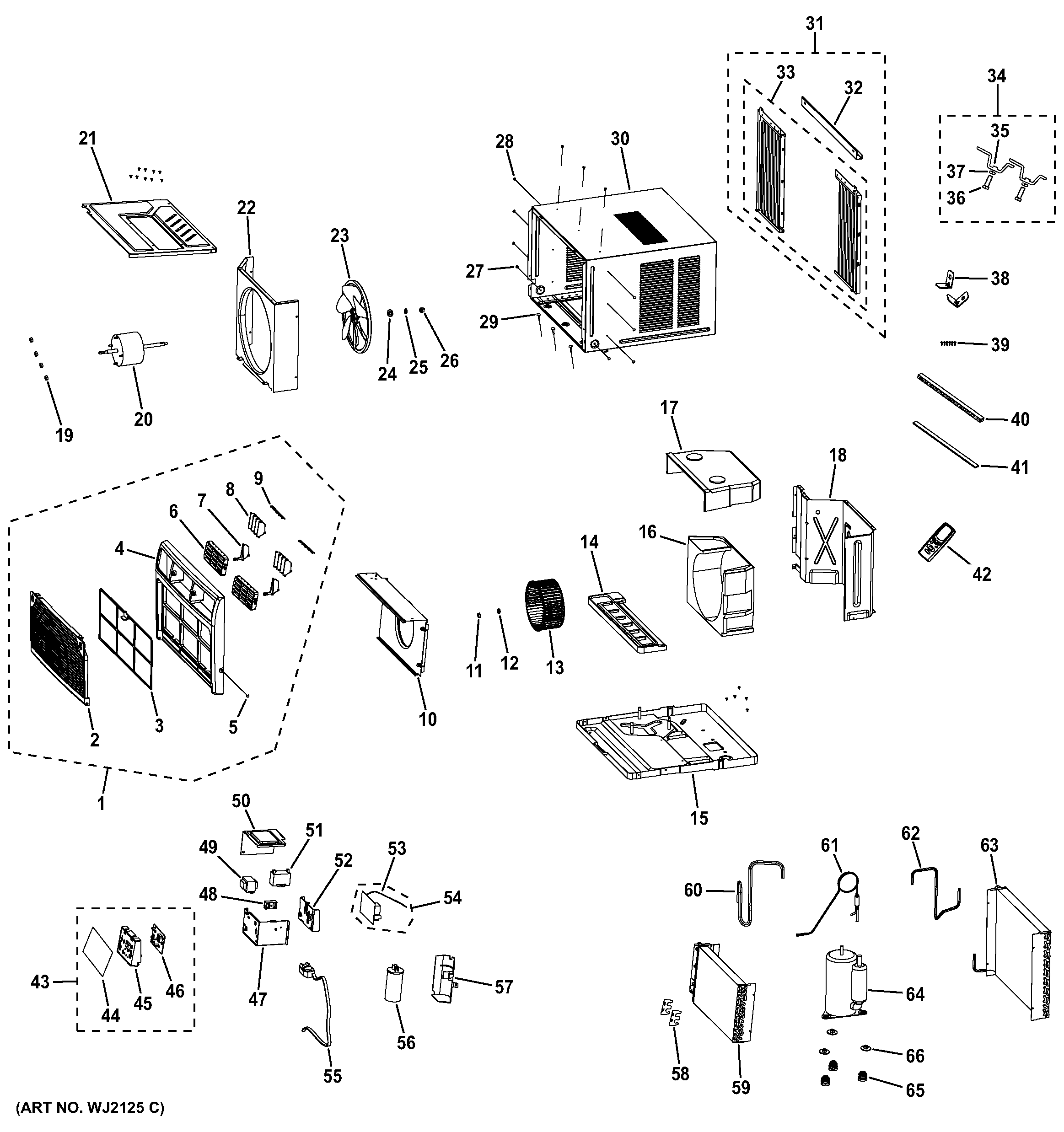

PositionProduct
1GEN WJ71X20341
2GEN WJ71X20340
3GEN WJ71X20335
4GEN WJ71X20339
5GEN WJ01X20253
7GEN WJ71X20343
8GEN WJ01X20342
9GEN WJ71X20344
10GEN WJ87X20333
12WJ01X20355 GE Washer Spring (Dia 8mm)
13WJ73X20320 GE Air Conditioner Centrifugal Fan Assembly
14WJ71X20360 GE Water Tray
15GEN WJ90X20364
16WJ76X10255 GE Lower Snail Shell
17GEN WJ76X20359
18WJ94X20347 GE Motor Supporting Assembly
19WJ01X10412 GE Nut (M4)
20GEN WJ94X20334
21WJ05X20357 GE Top Cover Board Assembly
22WJ71X20324 GE Condenser Cover
23WJ73X20314 GE Air Conditioner Axial Flow Fan
24WJ01X10312 GE Air Conditioner Washer
25WJ01X10313 GE Washer Air Conditioner
26WJ01X10314 GE Air Conditioner Nut with Washer
27WJ01X20240 GE Air Conditioner Screw ST4.2X9.5 TC
28GEN WJ01X20354
29SCREW ST4.2X13 TA
30GEN WJ90X20316
32WJ01X20336 GE Curved Frame Assembly
36WJ01X20349 GE Mounting Rack Subassembly
37WJ01X20351 GE Nut (M8)
38WJ66X10076 GE Window Lock Bracket
39WJ01X10351 GE Screw
40WJ44X10015 GE Seal Strip
41WJ44X10016 GE Seal Strip
42WJ26X20522 GE Air Conditioner Remote Controller
43GEN WJ26X20327
44GEN WJ07X20331
45GEN WJ05X20328
46WJ26X20184 GE Air Conditioner Room Display
47GEN WJ05X20329
49WJ27X20238 GE Air Conditioner Transformer
50GEN WJ05X20330
51WJ20X10146 GE Compressor Capacitor
52WJ26X20346 GE Main Board Support Assembly
53WJ27X10122 GE Air Conditioner Thermostat
54GEN WJ26X20252
55GEN WJ35X20352
56GEN WJ20X20362
57WJ03X20361 GE Capacitor Box
58WJ03X10067 GE Sensor Holder
59GEN WJ87X20368
60GEN WJ62X20369
61GEN WJ53X20363
62GEN WJ62X20367
63GEN WJ87X20366
64GEN WJ98X20365
65WJ01X10419 GE Grommet Rubber
66WJ01X10335 GE Washer Nut M8
