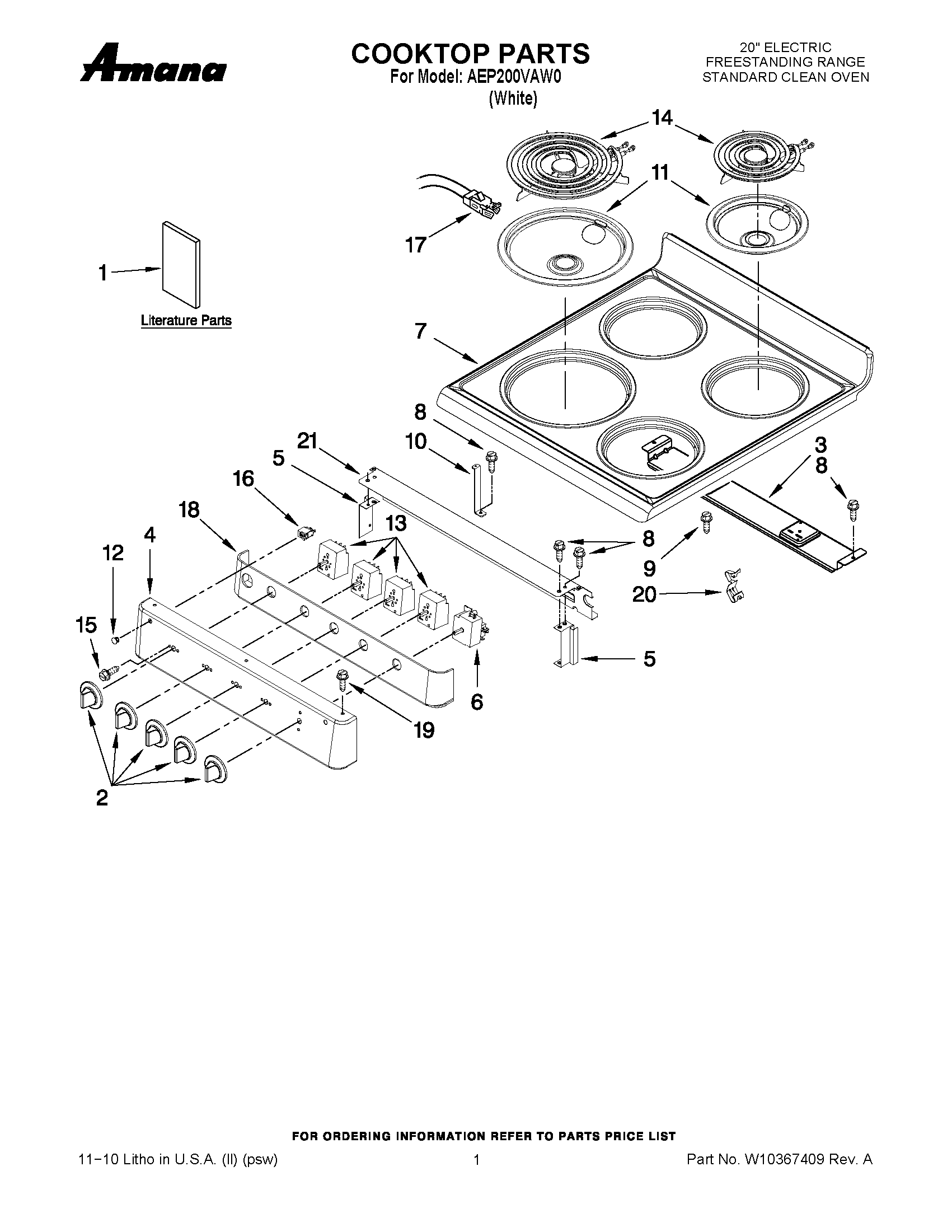

AEP200VAW0 01 – COOKTOP PARTS

AEP200VAW0 01 – COOKTOP PARTS

Written by

in

AEP200VAW0 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10181328
1TECH SHEET
1TIPS, SAFE COOKING (ENGLISH)
1MAY 98015589
1MAY W10175654
2KNOB, CONTROL
3SUPPORT, BURNER
4MAY W10320816
5BRACKET, SUPPORT RIGHT
5BRACKET, SUPPORT LEFT
6THERMOSTAT
7COOKTOP (WHITE)
8SCREW
9SCREW
10BRACKET, COOKTOP
11BOWL, CHROME (6" (LEFT REAR, RIGHT REAR, RIGHT FRONT))
11BOWL, CHROME (8" (LEFT FRONT))
12LENS, INDICATOR
13SWITCH, INFINITE (LEFT FRONT)
13SWITCH, INFINITE (LEFT REAR, RIGHT REAR, RIGHT FRONT)
14MAY W10179644
14MAY W10179646
15SCREW
16INDICATOR, LIGHT
17RECEPTACLE, ELEMENT
18FOIL, PANEL
19SCREW
20CLIP, THERM BULB
21SHIELD, CONTROL
