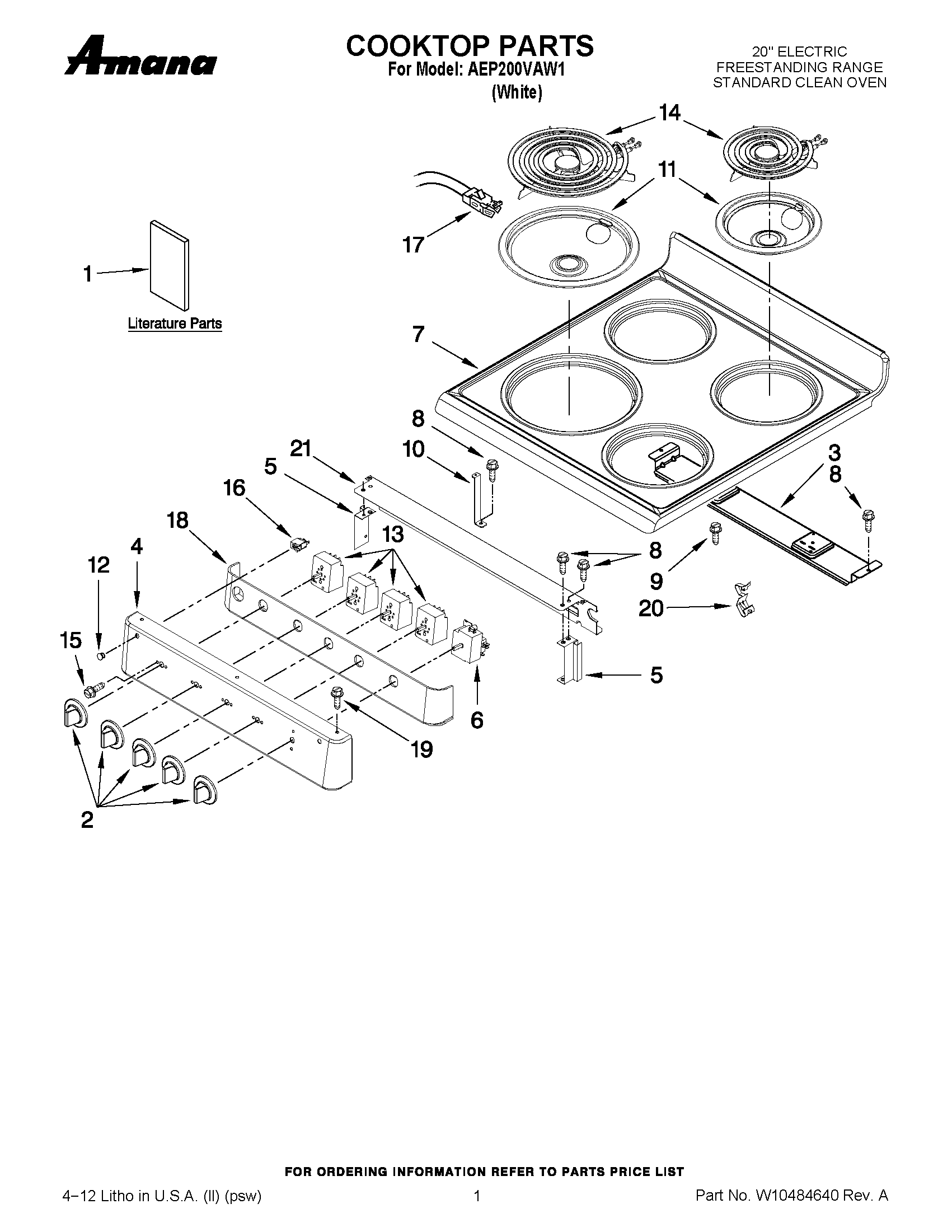

AEP200VAW1 01 – COOKTOP PARTS

Products

Position	Product
1	INSALLATION INSTRUCTIONS
1	TECH SHEET
1	TIPS, SAFE COOKING (ENGLISH)
1	USE & CARE GUIDE
2	KNOB, CONTROL
3	SUPPORT, BURNER
4	MAY W10320816
5	BRACKET, SUPPORT LEFT
5	BRACKET, SUPPORT RIGHT
6	THERMOSTAT
7	COOKTOP (WHITE)
8	SCREW
9	SCREW
10	BRACKET, COOKTOP
11	BOWL, CHROME (6" (LEFT REAR, RIGHT REAR, RIGHT FRONT))
11	BOWL, CHROME (8" (LEFT FRONT))
12	LENS, INDICATOR
13	SWITCH, INFINITE (LEFT REAR, RIGHT REAR, RIGHT FRONT)
13	SWITCH, INFINITE (LEFT FRONT)
14	ELEMENT COIL 6" (LEFT REAR, RIGHT REAR, RIGHT FRONT)
14	ELEMENT, COIL 8" (LEFT FRONT)
15	SCREW
16	INDICATOR, LIGHT
17	RECEPTACLE, ELEMENT
18	FOIL, PANEL
19	SCREW
20	CLIP, THERM BULB
21	SHIELD, CONTROL
