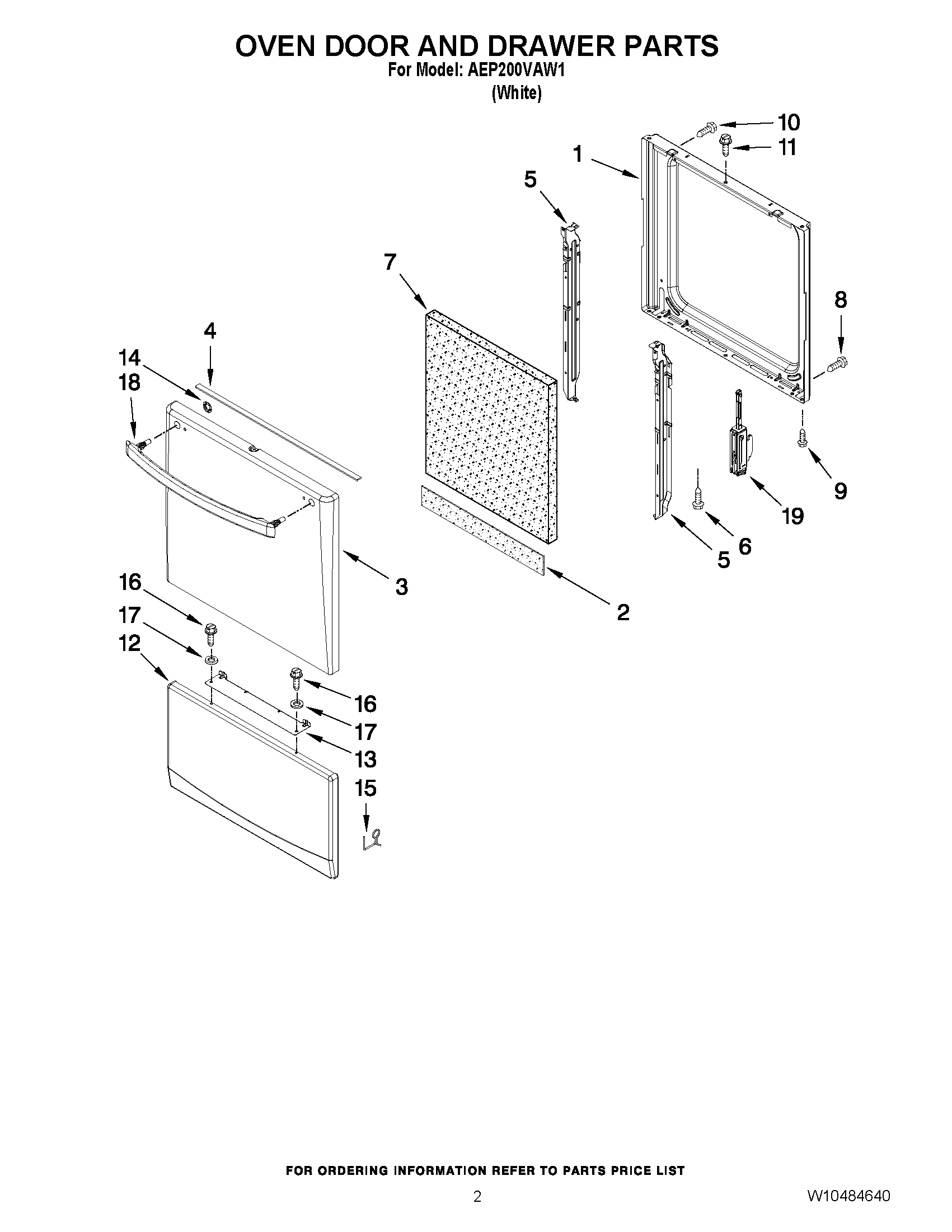

AEP200VAW1 02 – OVEN DOOR AND DRAWER PARTS

AEP200VAW1 02 – OVEN DOOR AND DRAWER PARTS

Written by

in

AEP200VAW1 02 – OVEN DOOR AND DRAWER PARTS

Products

PositionProduct
1MAY 98010414
2RETAINER, INSULATION
3MAY 98009525
4MAY W10205601
5RETAINER (RIGHT HAND)
5RETAINER (LEFT HAND)
6SCREW
7MAY W10208853
8SCREW
9SCREW
10SCREW
11SCREW (WHITE)
12DOOR, BROIL
13BRACKET, PANEL
14NUT, PUSH
15CLIP, DOOR
16SCREW
17WASHER
18HANDLE, DOOR (WHITE)
19HINGE, OVEN DOOR (YELLOW)
