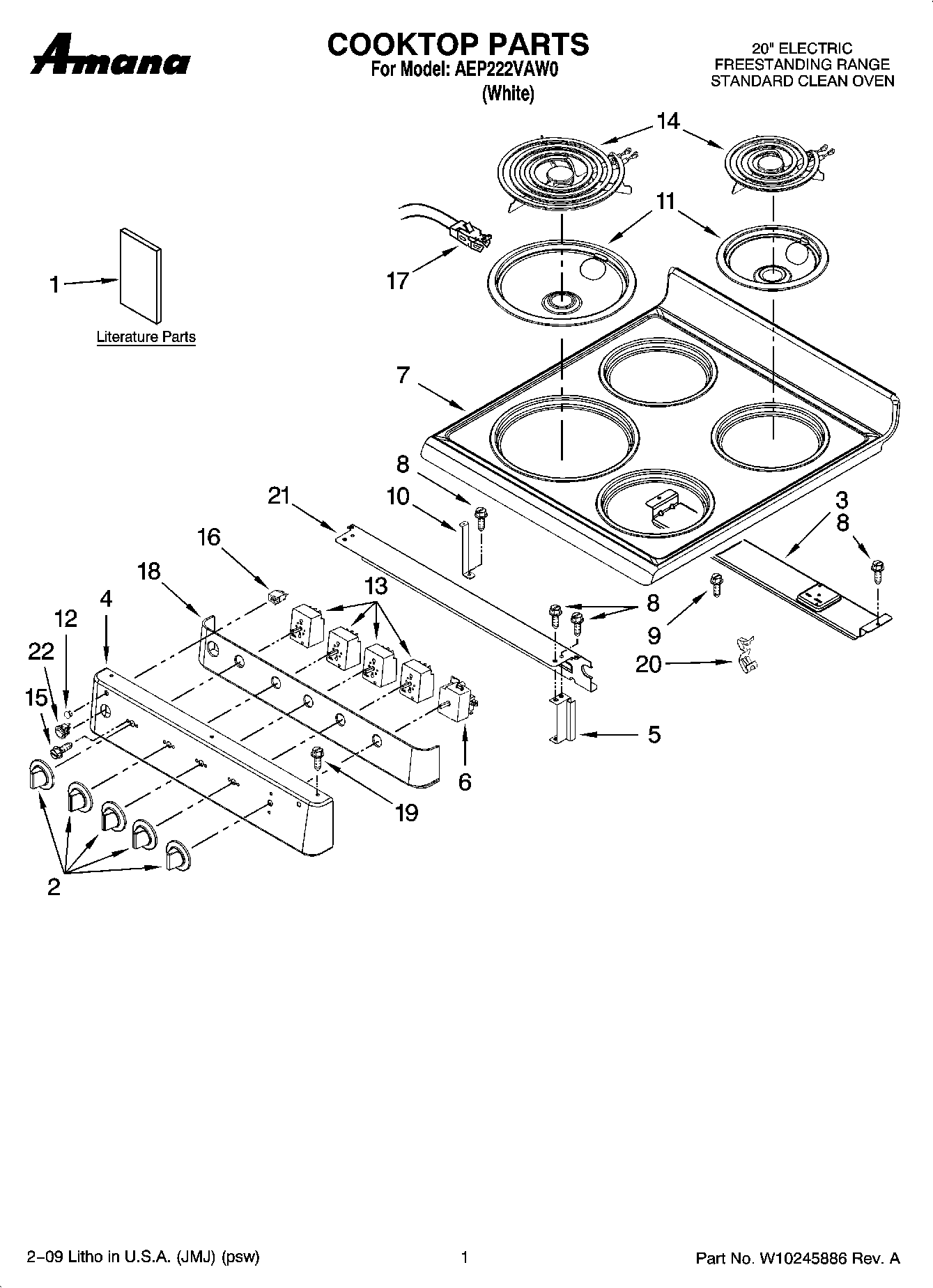

AEP222VAW0 01 – COOKTOP PARTS

AEP222VAW0 01 – COOKTOP PARTS

Written by

in

AEP222VAW0 01 – COOKTOP PARTS

Products

PositionProduct
1MAY 98015589
1TECH SHEET
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10175654
1MAY W10181328
2KNOB, CONTROL
3SUPPORT, BURNER
4MAY W10187996
5MAY W10206396
6THERMOSTAT
7COOKTOP (WHITE)
8SCREW
9SCREW
10MAY W10161199
11BOWL, CHROME (8" (LEFT FRONT))
11BOWL, CHROME (6" (LEFT REAR, RIGHT REAR, RIGHT FRONT))
12LENS, INDICATOR
13SWITCH, INFINITE (LEFT REAR, RIGHT REAR, RIGHT FRONT)
13SWITCH, INFINITE (LEFT FRONT)
14MAY W10179646
14MAY W10179644
15SCREW
16INDICATOR, LIGHT
17RECEPTACLE, ELEMENT
18MAY W10190578
19SCREW
20CLIP, THERM BULB
21SHIELD, CONTROL
22SWITCH, ROCKER (WHITE)
