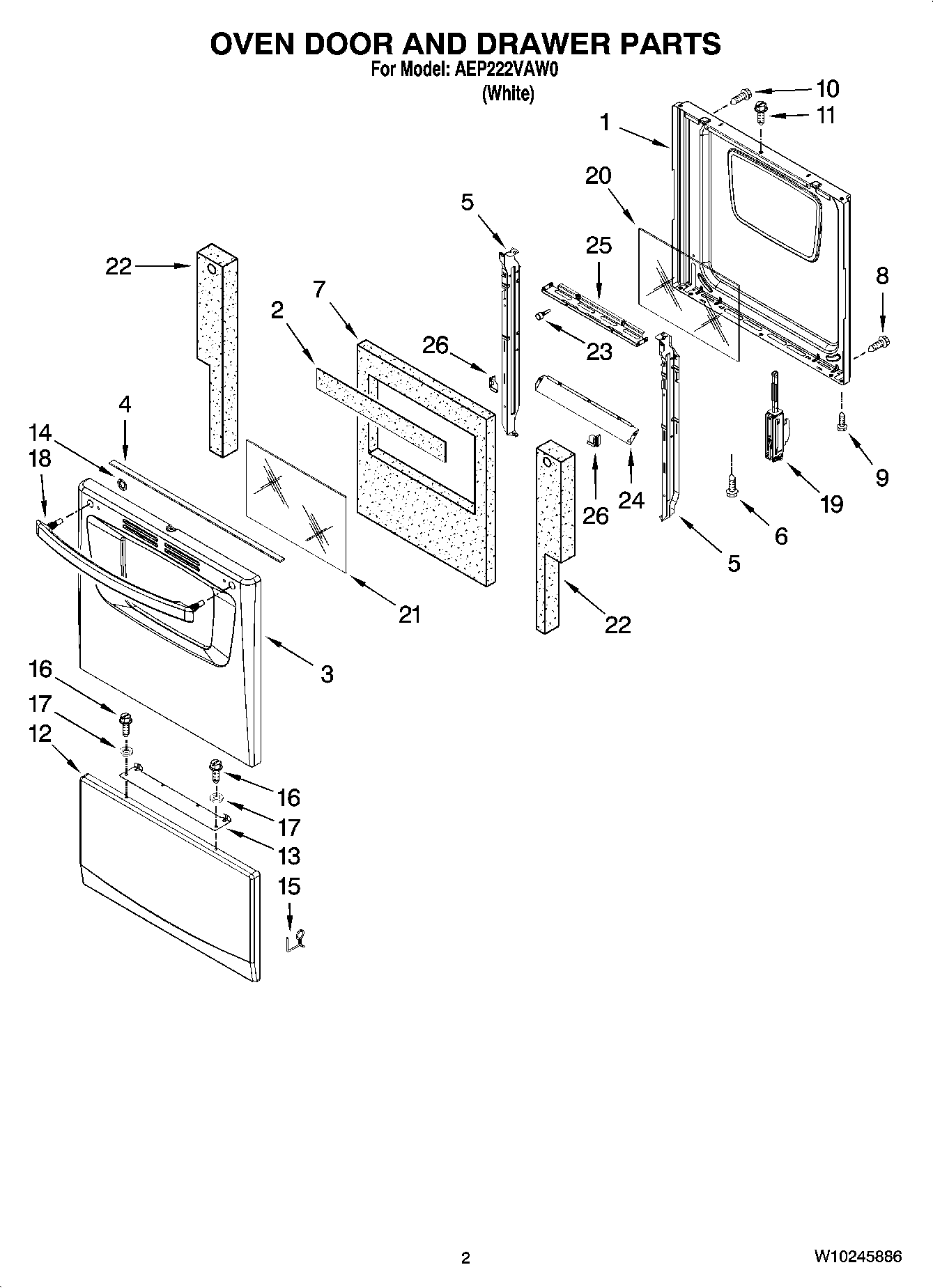

AEP222VAW0 02 – OVEN DOOR AND DRAWER PARTS

Products

PositionProduct
1MAY 98010413
2MAY 98006716
3Panel, Oven Door
4MAY W10198647
5RETAINER (RIGHT HAND)
5RETAINER (LEFT HAND)
6SCREW
7MAY W10137237
8SCREW
9SCREW
10SCREW
11SCREW (WHITE)
12DOOR, BROIL
13BRACKET, PANEL
14NUT, PUSH
15CLIP, DOOR
16SCREW
17WASHER
18HANDLE, DOOR (WHITE)
19HINGE, OVEN DOOR (YELLOW)
20GLASS, INNER
21GLASS, OUTER
22Insulation (Left)
22Insulation (Right)
23BUMPER
24RETAINER, INSULATION (BOTTOM)
25RETAINER, INSULATION (TOP)
26CLIP, GLASS (LEFT HAND)
26CLIP, GLASS (RIGHT HAND)
