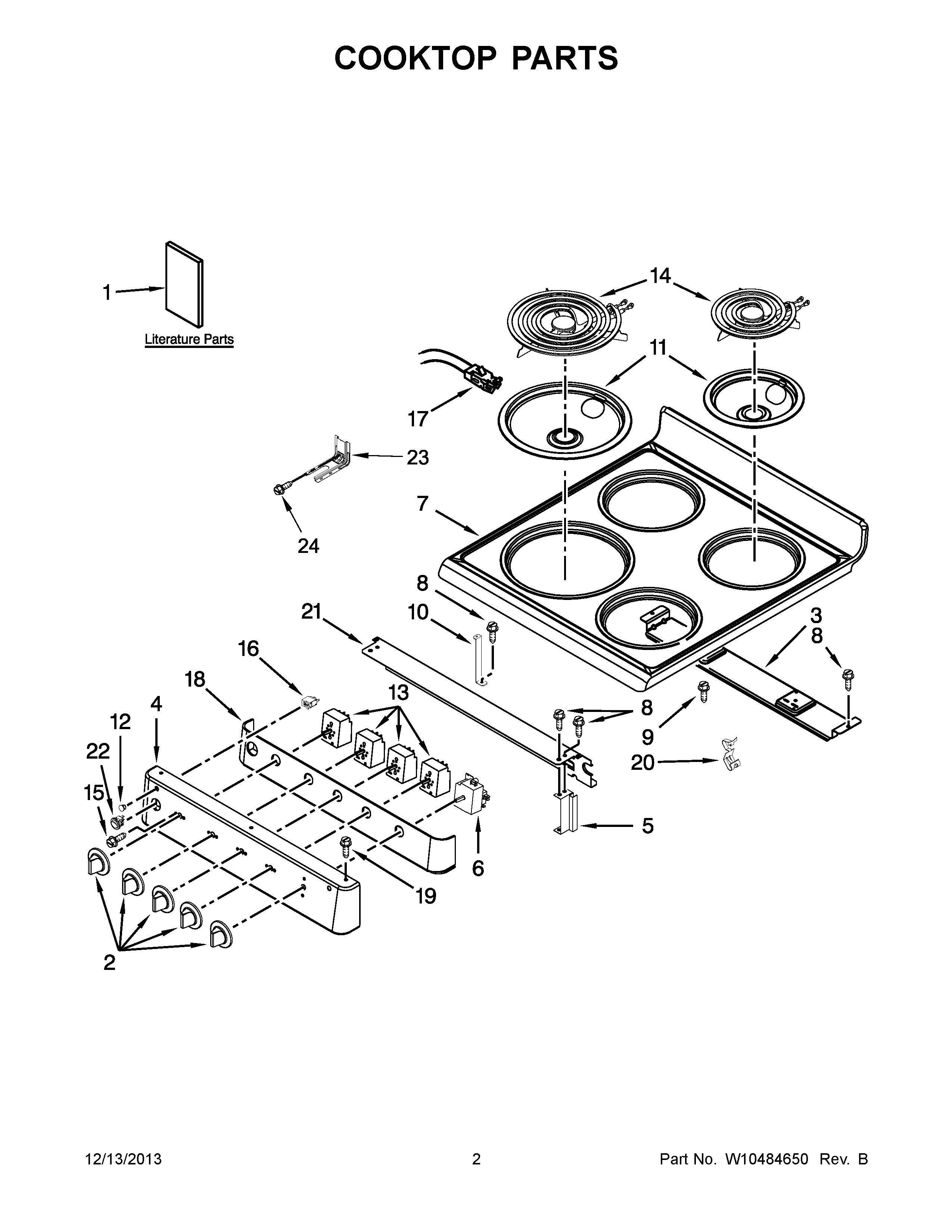

AEP222VAW1 02 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1USE & CARE GUIDE
1INSALLATION INSTRUCTIONS
1TECH SHEET
2KNOB, CONTROL
3SUPPORT, BURNER
4PANEL, CONTROL (WHITE)
5BRACKET, SUPPORT RIGHT
5BRACKET, SUPPORT LEFT
6THERMOSTAT
7COOKTOP (WHITE)
8SCREW
9SCREW
10BRACKET, COOKTOP
11BOWL, CHROME (8" (LEFT FRONT))
11BOWL, CHROME (6" (LEFT REAR, RIGHT REAR, RIGHT FRONT))
12LENS, INDICATOR
13SWITCH, INFINITE (LEFT FRONT)
13SWITCH, INFINITE (LEFT REAR, RIGHT REAR, RIGHT FRONT)
14ELEMENT, COIL 8" (LEFT FRONT)
14ELEMENT COIL 6" (LEFT REAR, RIGHT REAR, RIGHT FRONT)
15SCREW
16INDICATOR, LIGHT
17RECEPTACLE, ELEMENT
18FOIL, PANEL
19SCREW
20CLIP, THERM BULB
21MAY W10266787
22SWITCH, ROCKER (WHITE)
23BRACKET, ANTI-TIP
24SCREW, ANTI-TIP KIT
