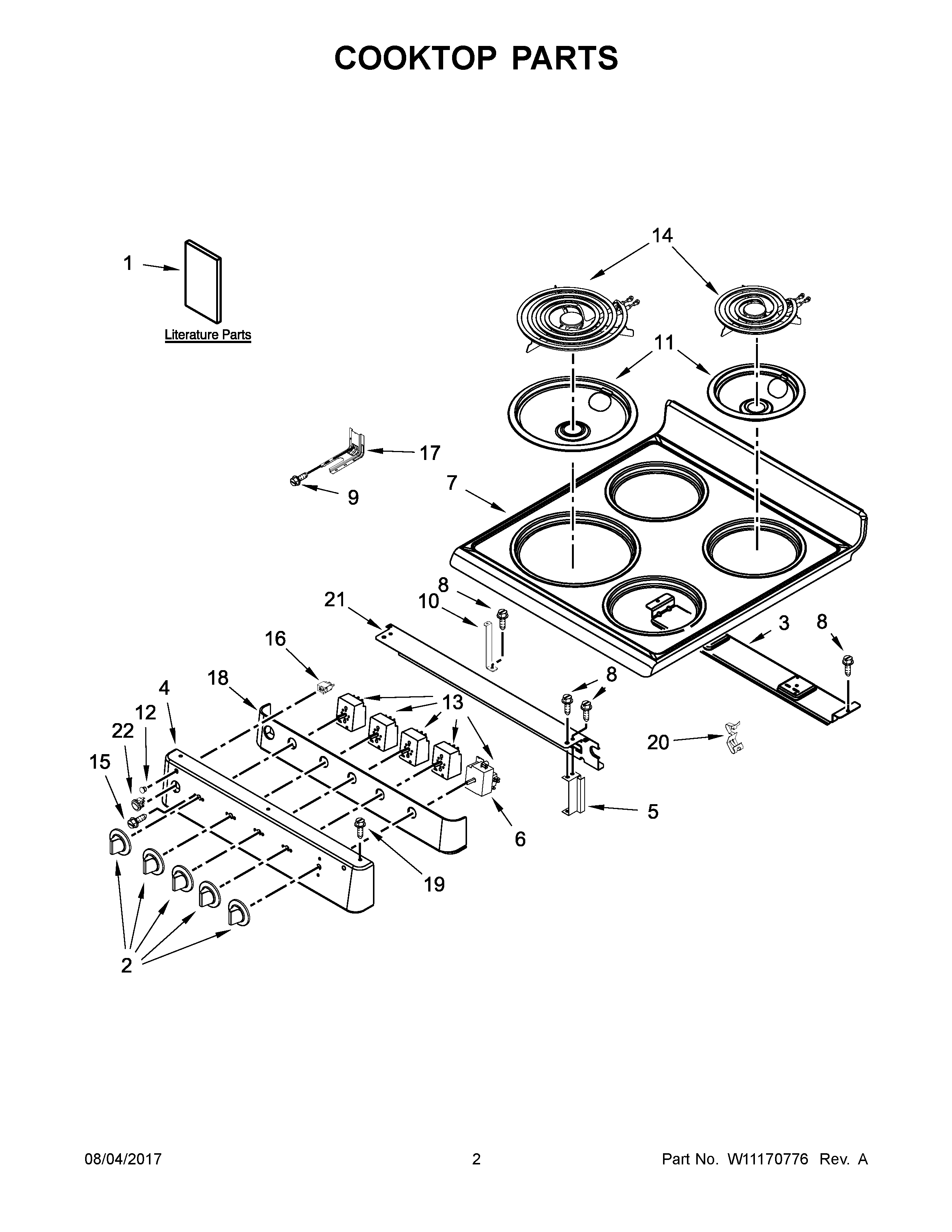

AEP222VAW2 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W11037271
NI	MAY W11037258
NI	MAY W11037260
NI	WIRING HARNESS PARTS, WIRE, TSTAT (4) TO TSTAT (BLACK)
NI	MAY W11037273
NI	MAY W11036993
NI	MAY W11036986
NI	LINER (NOT A SERVICEABLE PART)
NI	WIRING HARNESS PARTS, WIRE, TSTAT (H) TO OVEN INDICATOR LIGHT (BLACK)
NI	CLIP, HARNESS
NI	MAY W10177729
NI	MAY 3391018
NI	MAY W11036998
1	USE & CARE GUIDE
1C	TIPS, SAFE COOKING (ENGLISH)
1B	TECH SHEET
1A	INSALLATION INSTRUCTIONS
2	KNOB, CONTROL
3	SUPPORT, BURNER
4	PANEL, CONTROL (WHITE)
5A	BRACKET, SUPPORT RIGHT
5	BRACKET, SUPPORT LEFT
6	THERMOSTAT
7	COOKTOP (WHITE)
8	SCREW
9	SCREW, ANTI-TIP KIT
10	BRACKET, COOKTOP
11	BOWL, CHROME (8" (LEFT FRONT))
11A	BOWL, CHROME (6" (LEFT REAR, RIGHT REAR, RIGHT FRONT))
12	LENS, INDICATOR
13A	SWITCH, INFINITE (LEFT REAR, RIGHT REAR, RIGHT FRONT)
13	SWITCH, INFINITE (LEFT FRONT)
14A	ELEMENT COIL 6" (LEFT REAR, RIGHT REAR, RIGHT FRONT)
14	ELEMENT, COIL 8" (LEFT FRONT)
15	SCREW
16	INDICATOR, LIGHT
17	BRACKET, ANTI-TIP
18	FOIL, PANEL
19	SCREW (BLACK)
20	CLIP, THERM BULB
21	"Z" BRACKET, MANIFOLD
22	SWITCH, ROCKER (WHITE)
