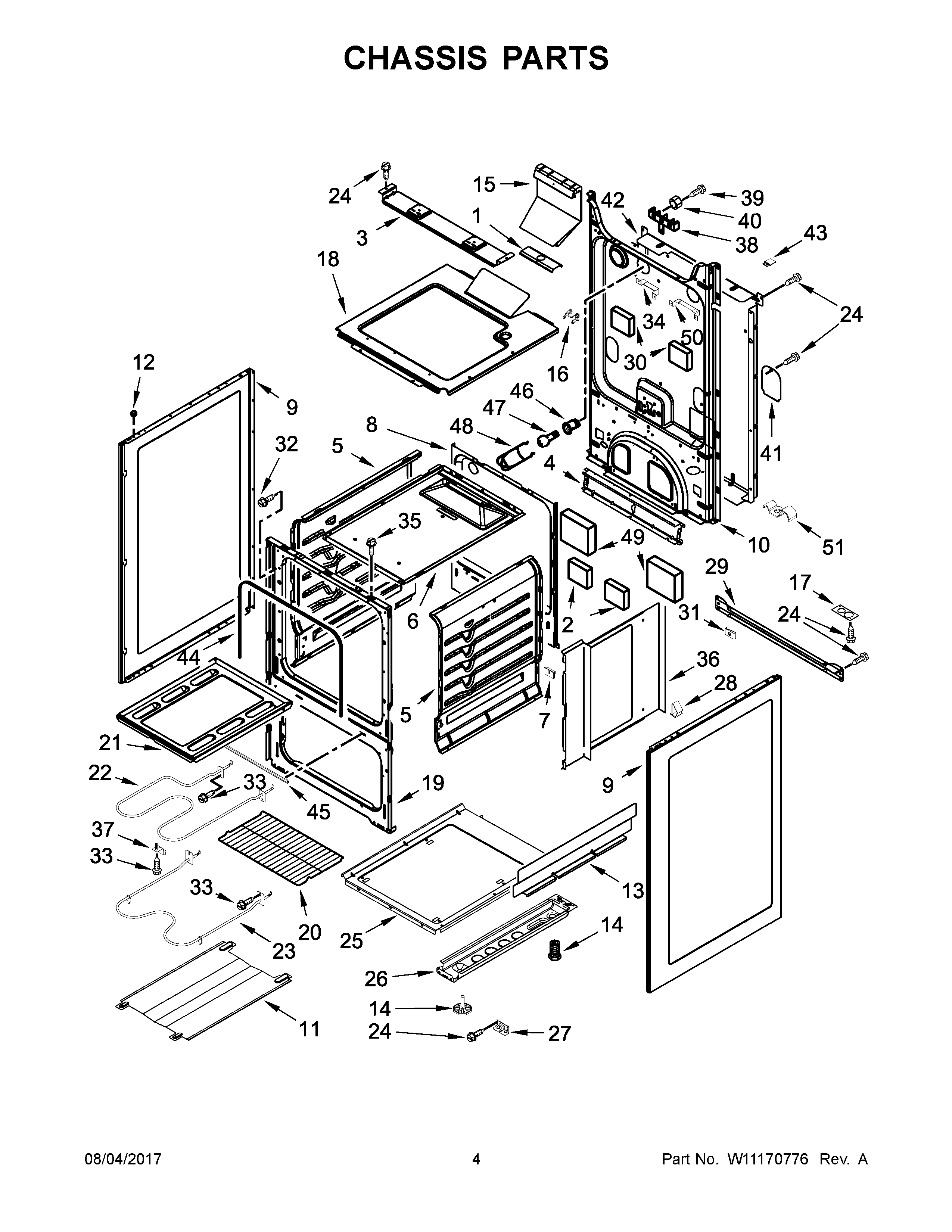

AEP222VAW2 03 – CHASSIS PARTSadmin2025-04-26T08:55:57+00:00AEP222VAW2 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, WRAP |
| NI | INSULATION, TOP |
| NI | INSULATION, BOTTOM |
| NI | INSULATION, BACK |
| NI | WIRE TIE, INSULATION |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | COVER, FLUE BOX |
| 2 | COUNTERWEIGHT |
| 3 | SUPPORT, BURNER |
| 4 | SUPPORT, OVEN BURNER |
| 5 | SIDE, OVEN (RIGHT HAND) |
| 5A | SIDE, OVEN (LEFT HAND) |
| 6 | TOP, OVEN |
| 7 | CLIP, OVEN BOTTON |
| 9 | PANEL, SIDE (WHITE) |
| 10 | BACK, MAIN |
| 11 | SPREAD, FLAME (BAKE) |
| 12 | BUMPER, COOKTOP |
| 13 | SHIELD, HEAT (LOWER) |
| 14 | FOOT, FRONT |
| 14A | FOOT, LEVELING |
| 15 | BOX, FLUE |
| 16 | SPRING, TORSION (FLUE BOX) |
| 17 | PLATE, CONDUIT |
| 18 | BOX, BURNER |
| 19 | FRAME, FRONT |
| 20 | RACK, OVEN |
| 21 | BOTTOM, OVEN |
| 22 | ELEMENT, BROIL |
| 23 | ELEMENT, BAKE |
| 24 | SCREW |
| 25 | BAFFLE, BASE |
| 26 | RAIL, BASE |
| 27 | BASE, FOOT |
| 28 | CLIP, COOKTOP |
| 29 | SUPPORT, REAR |
| 30 | COUNTERWEIGHT |
| 31 | U-NUT |
| 32 | SCREW (BLACK) |
| 33 | SCREW |
| 34 | BRICK SUPPORT, UPPER |
| 35 | SCREW |
| 36 | BAFFLE, SIDE |
| 37 | SUPPORT, ELEMENT |
| 38 | BLOCK, TERMINAL BARE WIRE |
| 39 | SCREW |
| 40 | NUT, TERMINAL BLOCK |
| 41 | COVER, TERMINAL BLOCK |
| 42 | COVER, MAIN REAR |
| 43 | BLOCK, ADAPTER |
| 44 | SEAL, OVEN |
| 45 | SEAL, DOOR |
| 46 | SOCKET - OVEN LIGHT |
| 47 | BULB, LIGHT |
| 48 | PROTECTOR, LAMP |
| 49 | COUNTERWEIGHT |
| 50 | SUPPORT, BRICK |
| 51 | CLIP, TUBING |
