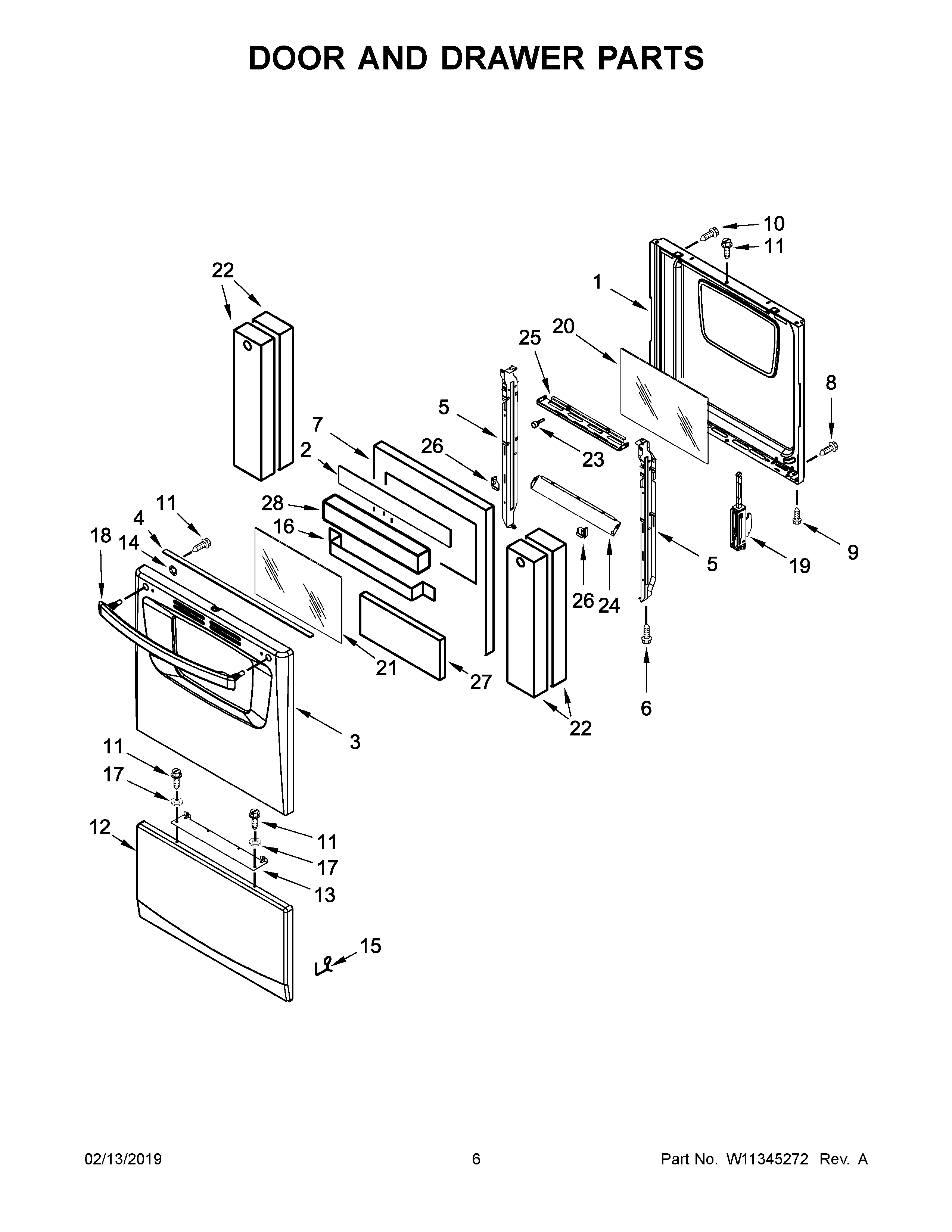

AEP222VAW3 04 – DOOR AND DRAWER PARTS

Products

Position	Product
1	LINER, DOOR
2	RETAINER, UPPER INSULATION
3	PANEL, OUTER DOOR (WHITE)
4	SEAL, OVEN DOOR
5	RETAINER (RIGHT HAND)
5A	RETAINER (LEFT HAND)
6	SCREW
7	INSULATION, DOOR
8	SCREW
9	SCREW (BLACK)
10	SCREW
11	SCREW (WHITE)
12	DOOR, BROIL
13	BRACKET, PANEL
14	NUT, PUSH
15	CLIP, DOOR
16	BRACKET, RETAINER
17	WASHER
18	HANDLE, DOOR (WHITE)
19	HINGE, OVEN DOOR (YELLOW)
20	GLASS, INNER
21	GLASS, OUTER
22	INSULATION
23	BUMPER
24	RETAINER, INSULATION (BOTTOM)
25	RETAINER, INSULATION (TOP)
26	CLIP, GLASS (RIGHT HAND)
26A	CLIP, GLASS (LEFT HAND)
27	INSULATION, DOOR
28	INSULATION, DOOR
