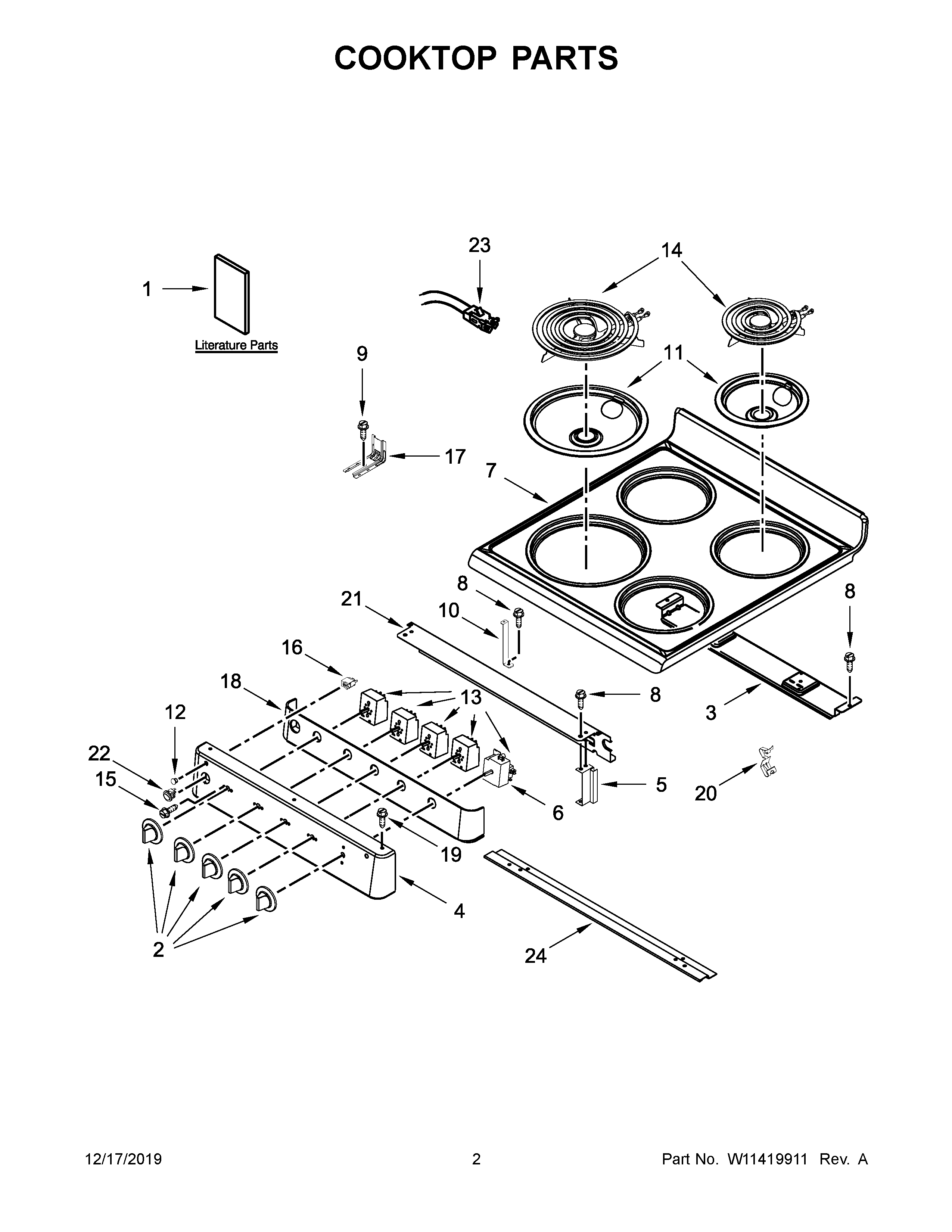

AEP222VAW4 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W11176350
NI	MAY W11219526
NI	MAY W11188382
NI	MAY W11176362
NI	MAY W11176361
NI	MAY W11176349
NI	MAY W11176348
NI	MAY W11176347
NI	MAY W11176327
NI	CLIP, HARNESS
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 3391018
NI	MAY W11176326
NI	MAY W11241454
1C	TIPS, SAFE COOKING (ENGLISH)
1B	TECH SHEET
1	MAY W11256486
1A	INSALLATION INSTRUCTIONS
2	KNOB, CONTROL
3	SUPPORT, BURNER
4	PANEL, CONTROL (WHITE)
5	BRACKET, SUPPORT LEFT
5A	BRACKET, SUPPORT RIGHT
6	THERMOSTAT
7	COOKTOP (WHITE)
8	SCREW
9	SCREW, ANTI-TIP KIT
10	BRACKET, COOKTOP
11	BOWL, CHROME (8" (LEFT FRONT))
11A	BOWL, CHROME (6" (LEFT REAR, RIGHT REAR, RIGHT FRONT))
12	LENS, INDICATOR
13A	SWITCH, INFINITE (LEFT REAR, RIGHT REAR, RIGHT FRONT)
13	SWITCH, INFINITE (LEFT FRONT)
14	ELEMENT, COIL HEATING (2400W) (LEFT FRONT AND RIGHT REAR)
14A	ELEMENT, COIL HEATING (1500W) (RIGHT FRONT AND LEFT REAR)
15	SCREW
16	INDICATOR, LIGHT
17	BRACKET, ANTI-TIP
18	FOIL, PANEL
19	SCREW (BLACK)
20	CLIP, THERM BULB
21	SHIELD, CONTROL
22	SWITCH, ROCKER (WHITE)
23	RECEPTACLE, ELEMENT
24	"Z" BRACKET, MANIFOLD
