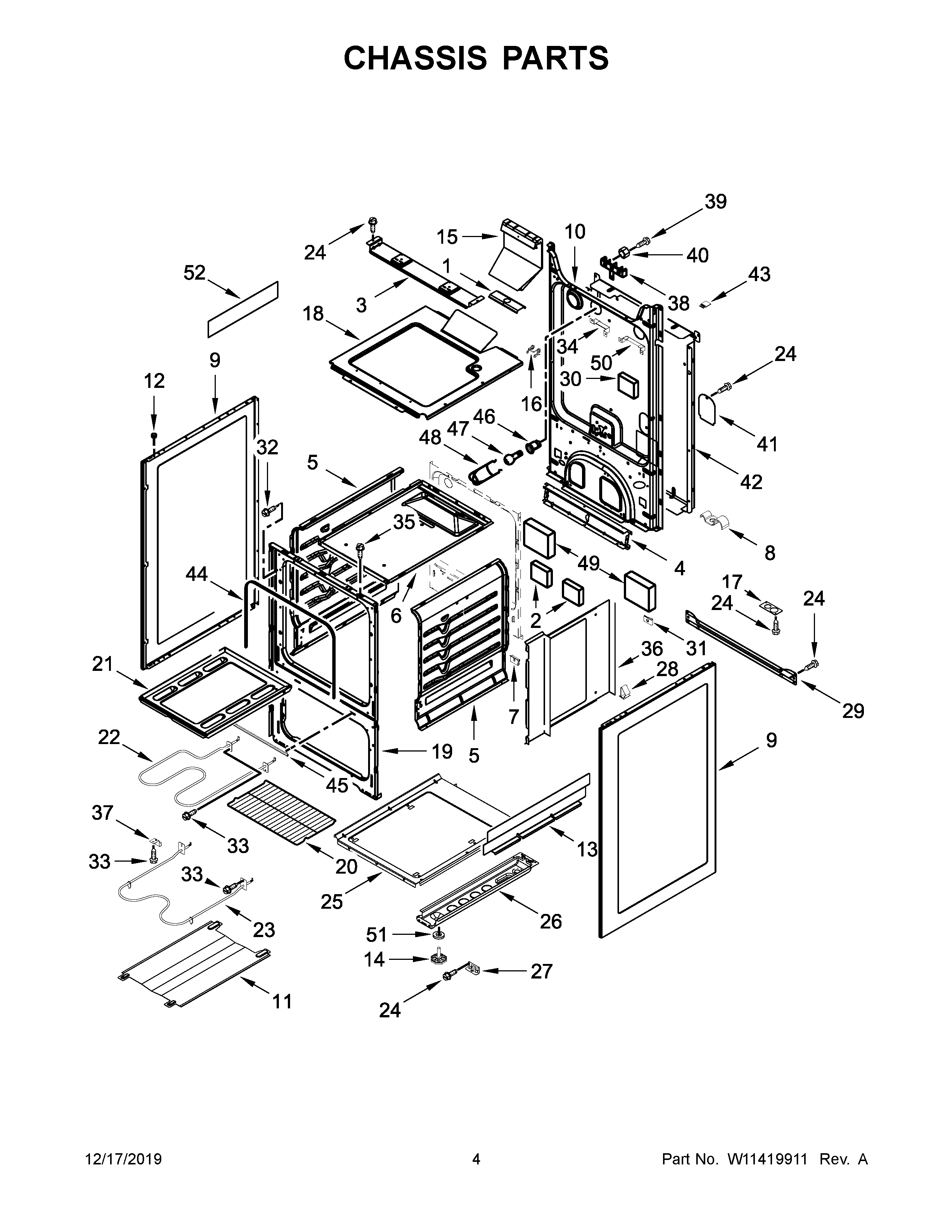

AEP222VAW4 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, TOP
NI	WIRE TIE, INSULATION
NI	INSULATION, WRAP
NI	INSULATION, BOTTOM
1	COVER, FLUE BOX
2	COUNTERWEIGHT
3	SUPPORT, BURNER
4	SUPPORT, OVEN BURNER
5A	SIDE, OVEN (LEFT HAND)
5	SIDE, OVEN (RIGHT HAND)
6	TOP, OVEN
7	CLIP, OVEN BOTTON
8	CLIP, TUBING
9	PANEL, SIDE (WHITE)
10	BACK, MAIN
11	SPREAD, FLAME (BAKE)
12	BUMPER, COOKTOP
13	SHIELD, HEAT (LOWER)
14	FOOT, FRONT
14A	FOOT, LEVELING
15	BOX, FLUE
16	SPRING, TORSION (FLUE BOX)
17	PLATE, CONDUIT
18	BOX, BURNER
19	FRAME, FRONT
20	RACK, OVEN
21	BOTTOM, OVEN
22	ELEMENT, BROIL
23	ELEMENT, BAKE
24	SCREW
25	BAFFLE, BASE
26	RAIL, BASE
27	BASE, FOOT
28	CLIP, COOKTOP
29	SUPPORT, REAR
30	COUNTERWEIGHT
31	U-NUT
32	SCREW (BLACK)
33	SCREW
34	BRICK SUPPORT, UPPER
35	SCREW
36	BAFFLE, SIDE
37	SUPPORT, ELEMENT
38	BLOCK, TERMINAL BARE WIRE
39	SCREW
40	NUT, TERMINAL BLOCK
41	COVER, TERMINAL BLOCK
42	COVER, MAIN REAR
43	BLOCK, ADAPTER
44	SEAL, OVEN
45	SEAL, DOOR
46	SOCKET – OVEN LIGHT
47	BULB, LIGHT
48	PROTECTOR, LAMP
49	COUNTERWEIGHT
50	SUPPORT, BRICK
51	SPACER
52	ALUMINUM FOIL
