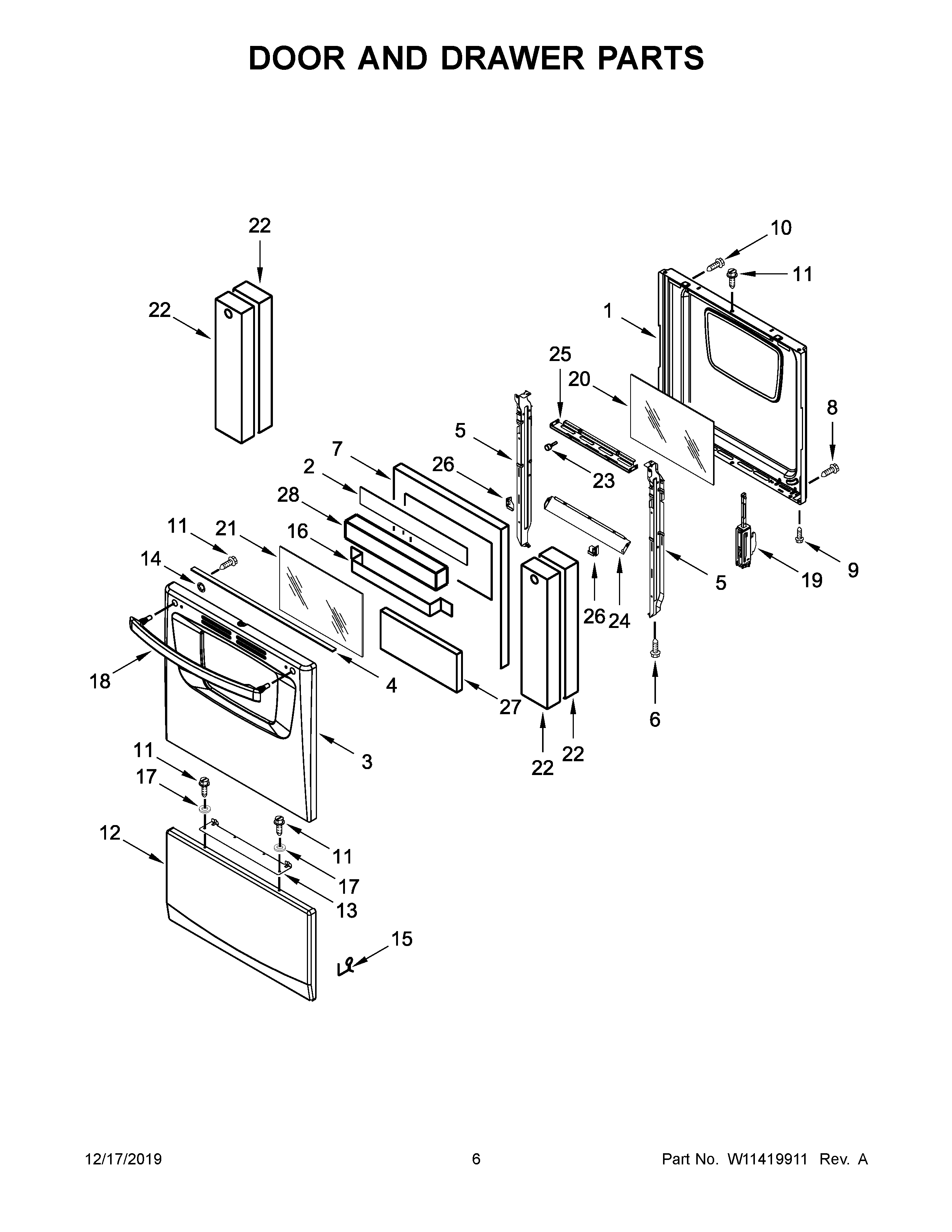

AEP222VAW4 04 – DOOR AND DRAWER PARTS

Products

PositionProduct
1LINER, DOOR
2RETAINER, UPPER INSULATION
3PANEL, OUTER DOOR (WHITE)
4SEAL, OVEN DOOR
5RETAINER (RIGHT HAND)
5ARETAINER (LEFT HAND)
6SCREW
7INSULATION, DOOR
8SCREW
9SCREW (BLACK)
10SCREW
11SCREW (WHITE)
12DOOR, BROIL
13BRACKET, PANEL
14NUT, PUSH
15CLIP, DOOR
16BRACKET, RETAINER
17WASHER
18HANDLE, DOOR (WHITE)
19HINGE, OVEN DOOR (YELLOW)
20GLASS, INNER
21GLASS, OUTER
22INSULATION
23BUMPER
24RETAINER, INSULATION (BOTTOM)
25RETAINER, INSULATION (TOP)
26CLIP, GLASS (RIGHT HAND)
26ACLIP, GLASS (LEFT HAND)
27INSULATION, DOOR
28INSULATION, DOOR
